What is assured grounding?

What Is the Assured Equipment Grounding Conductor Program? The assured equipment grounding conductor program covers all cord sets, receptacles which are not a part of the permanent wiring of the building or structure, and equipment connected by cord and plug which are available for use or used by employees.

.

Also know, what tests are required by OSHA under the assured equipment grounding conductor program?

Perform two OSHA-required tests on all electrical equipment: a continuity test, and a terminal connection test. Tests are required: Before first use. After any repairs, and before placing back in service.

Furthermore, what systems require grounding? Grounding electrical circuits and electrical equipment is required to protect employees against electrical shock, safeguard against fire, and protect against damage to electrical equipment. There are two kinds of grounding: (1) electrical circuit or system grounding, and (2) electrical equipment grounding.

Then, what is Aegcp?

An assured equipment grounding conductor program (AEGCP) is a method of protection for personnel against ground-fault current flow through the body.

How often must electrical equipment noted in an Aegcp be visually inspected for damage or defects?

All electrical equipment subject to the AEGC Program must be visually inspected daily for damage or defects or removed from service until repaired. Testing. When checking electrical equipment, 2 Tests are required by OSHA.

Related Question Answers

When must an assured equipment grounding conductor program?

Electrical equipment noted in the assured equipment grounding conductor program must be visually inspected for damage or defects before each day's use. Any damaged or defective equipment must not be used by the employee until repaired. Two tests are required by OSHA.

Who is responsible for buying PPE?

Regulation 4 states: Every employer shall ensure that suitable personal protective equipment is provided to his employees who may be exposed to a risk to their health or safety while at work except where and to the extent that such risk has been adequately controlled by other means which are equally or more effective.

What is a GFCI OSHA?

Electrical Incidents Ground-Fault Circuit Interrupters (GFCI) The ground-fault circuit interrupter, or GFCI, is a fast-acting circuit breaker designed to shut off electric power in the event of a ground-fault within as little as 1/40 of a second.

What are electrical hazards?

An electrical hazard can be defined as. a dangerous condition where a worker could make electrical contact with energized equipment or a conductor, and from which the person may sustain an injury from shock; and/or, there is potential for the worker to receive an arc flash burn, thermal burn, or blast injury.

When should a GFCI be used?

GFCI receptacles were required in houses starting in 1971. Originally they were only required at the exterior of the house and by swimming pool equipment. Over the years, GFCI receptacles have been required in more locations such as garages, bathrooms, kitchens, etc.

What is ground fault protection?

Ground fault protection is equipment protection from the effects of ground faults. The National Electrical Code® (NEC® ) has specific ground fault equipment protection requirements in 215.10, 230.95, 240.13 and 517.17. Ground fault relays (or sensors) are used to sense low magnitude ground faults.

What is the maximum allowed fall distance into a safety net?

Each safety net (or section of it) shall have a border rope for webbing with a minimum breaking strength of 5,000 pounds (22.2 kN). Connections between safety net panels shall be as strong as integral net components and shall be spaced not more than 6 inches (15 cm) apart.

When should power tools and extension cords be inspected?

Testing should be conducted on each piece of equipment every three months, as well as before first use or return to service after repair. In order to ensure a grounding wire is electrically continuous throughout the extension cord or power tool, a continuity test must be conducted.

Is ground fault circuit interruption required on 120 volt or 240 volt 15 and 20 ampere receptacle outlets?

All 125V receptacles located within 20 ft of the inside walls of a pool or fountain shall be protected by a ground-fault circuit interrupter. Receptacles that supply pool pump motors and that are rated 15 or 20 amperes, 120 volt through 240 volts, single phase, shall be provided with GFCI protection.

What does a GFCI do?

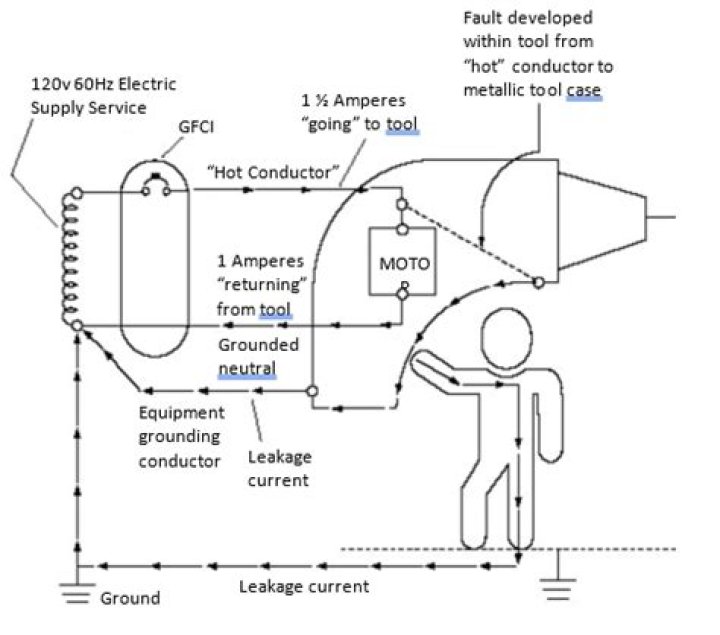

A GFI, or GFCI – Ground Fault Circuit Interrupter device protects us from receiving electric shocks from faults in the electrical devices we use in our home. It works by comparing the input current on the hot side to the output current on the neutral side.

What is the difference between earthing and grounding?

Key Differences Between Grounding and Earthing In grounding the current carrying part like neutral of the transformer is directly connected to the ground. The grounding balanced the unbalanced load whereas the earthing protect the equipment and human from an electrical shock.

What are the 2 types of grounding?

Ground (earth) mat There are two types used in static control: Static Dissipative Mats, and Conductive Mats.

What types of circuits should not be grounded?

Electrolytic cells are commonly used in the aluminum- and chlorine-processing industries. Secondary circuits of low-voltage lighting system must not be grounded, as indicated in Section 411.5(A). Also, low-voltage lighting systems for underwater pool lighting supplied by isolation transformers must not be grounded.

How do you ground a service?

Service Grounding

1. Connect the neutral (grounded) wire to the grounding electrode wire at the nearest accessible point at or before the service equipment (main disconnect).
2. Do not connect the neutral (grounded) wire to ground at any other place downstream from the service equipment grounding point.

Why grounding is required for an equipment?

One of the most important reasons for grounding electrical currents is that it protects your appliances, your home and everyone in it from surges in electricity. If lightning was to strike or the power was to surge at your place for whatever reason, this produces dangerously high voltages of electricity in your system.

Which wire is used in earthing?

Earthing Lead or Earthing Joint Eventhough copper wires are generally used as earthing lead, copper strips are preferred for high installation as it can carry higher values of fault current due to its wider area. Hard drawn bare copper wires are also used as earthing lead.

How do you discharge yourself?

Part 2 Grounding Yourself

1. Understand how grounding works.
2. Use your computer's case to ground yourself.
3. Touch grounded metal objects every couple of minutes.
4. Ground yourself with an anti-static wristband.
5. Connect yourself to a grounded metal object via a wire.
6. Work on an ESD mat.

Is Ground positive or negative?

Usually in electronics, ground is just a name we give to a certain point in the circuit. In a circuit with one battery (with a positive and a negative terminal), we usually refer to the negative terminal as ground.
