What is asphalt in civil engineering?
.
Considering this, what is asphalt and its uses?
The primary use (70%) of asphalt is in road construction, where it is used as the glue or binder mixed with aggregate particles to create asphalt concrete. Its other main uses are for bituminous waterproofing products, including production of roofing felt and for sealing flat roofs.
Subsequently, question is, what is asphalt made out of? Asphalt paving material is a dull black mixture of asphalt cement, sand, and crushed rock. After being heated, it is dumped out steaming hot onto the roadbed, raked level, and then compacted by a heavy steamroller. Asphalt is also used for expansion joints and patches on concrete roads.
Also know, what is difference between asphalt and bitumen?
Bitumen is the liquid binder that holds asphalt together. A bitumen-sealed surface is a layer of bitumen sprayed and then covered with an aggregate. Asphalt is produced in a plant that heats, dries and mixes aggregate, bitumen and sand into a composite. It's all good to understand the difference between the two.
What is tar in civil engineering?
Tar is the viscous liquid obtained when natural organic materials such as wood and coal carbonized or destructively distilled in the absence of air. Based on the materials from which tar is derived, it is referred to as wood tar or coal tar. It is more widely used for road work because it is superior.
Related Question AnswersWhat kind of oil is used in asphalt?
crude oilWhat is another word for asphalt?
Similar words for asphalt: bituminous substanced (noun) pavement (noun) resin (noun) road (noun) superhighway (noun)What chemicals are in asphalt?
Asphalt typically contains about 80% by weight of carbon; around 10% hydrogen; up to 6% sulfur; small amounts of oxygen and nitrogen; and trace amounts of metals such as iron, nickel, and vanadium. The molecular weights of the constituent compounds range from several hundred to many thousands.How asphalt is produced?
Asphalt is produced from dried, asphalt cement and crushed rock which is a combination of petroleum compounds that consists of sand, crushed stone or gravel. Before the application, asphalt epoxy resin is heated and mixed with crushed rock.What are the types of asphalt?
There are three main types of asphalt: Hot Asphalt, MC Cold Mix, and UPM. There are also different varieties of these asphalts for summer and winter use. Below is a brief overview of each type of asphalt.Why do we use asphalt?
Asphalt creates the smoothest surface for driving. Smooth roads allow superior contact with vehicle tires for a safer (and more enjoyable) ride. Open-graded asphalt, a special type of road surface, can minimize splash and spray during rainstorms and reduce crashes and fatalities on highways. Cost-effective.What are the layers of asphalt?

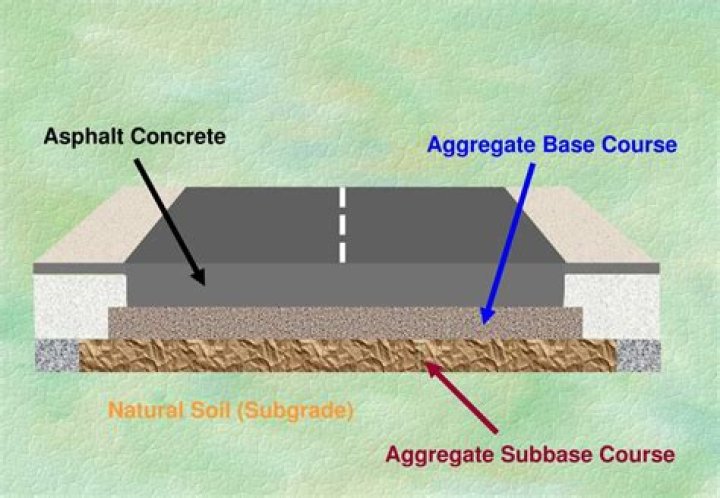

In general the asphalt layers are paved on a bound or unbound road base layer. Starting at the road surface, the first layer is called the surface course. The second layer is mostly called the binder course. The lower layers are the base courses.Is asphalt cheaper than concrete?
Cost. Ignoring any maintenance costs, asphalt is generally much cheaper to install than concrete. On average, the cost per square foot for asphalt will run between $2.50 to $4.00. It's not unheard of to have a stained concrete driveway with a smooth finish cost over $15.00 per square foot.What are the three types of bitumen?
Three types of bituminous emulsions are available, which are Rapid setting (RS), Medium setting (MS), and Slow setting (SC). Bitumen emulsions are ideal binders for hill road construction.What is the other name of bitumen?
Asphalt, also known as bitumen (UK: /ˈb?tj?m?n/, US: /b?ˈtjuːm?n, ba?-/), is a sticky, black, and highly viscous liquid or semi-solid form of petroleum. It may be found in natural deposits or may be a refined product, and is classed as a pitch. Before the 20th century, the term asphaltum was also used.What is the percentage of bitumen in asphalt?
Using just asphalt, as in hot mix, the percentage would be 100%. For emulsions you should check with supplier, but the range is typically 55-70% asphalt. The total weight of the mix is the weight of the asphalt plus the weight of the stone (aggregate).Is asphalt made of tar?
Asphalt is a material that's usually described as a sticky, black and hugely thick substance that's comparably the semi-solid form of petroleum. It's the actual liquid binder that keeps asphalt together. Some roads are sealed with bitumen and then overlaid with an aggregate. Tar is a substance that's derived from coal.Is bitumen a tar?
Bitumen is a naturally occurring dark substance composed of aromatic hydrocarbons and can occur in solid and liquid forms. Tar is a viscous black liquid which is derived through the process of destructive distillation. It can be derived either from coal or petroleum sources, or from wood.Does asphalt contain tar?
It is also called as mineral tar and is present in asphalt also. It contains 87% carbon, 11% hydrogen and 2% oxygen.What is cutback bitumen?
Cutback Bitumen ( Liquid Bitumen ) is Bitumen that is dissolved in a solvent . Typical solvents include Naptha, gasoline and kerosene, white spirit etc. The type of solvent controls the curing time while the amount determines the viscosity of the Cutback Bitumen.Which rock is used to make asphalt?
Typically, the production of asphalt concrete involves mixing fine and coarse aggregates such as sand, gravel and crushed rock with asphalt, which acts as the binding agent.What are the tests for asphalt?
Asphalt Tests- Kinematic Viscosity. The kinematic viscosity of a liquid is the absolute (or dynamic) viscosity divided by the density of the liquid
- Superpave Shear Tester.
- Absolute Viscosity.
- HMA Performance Tests.
- Mixture Characterization Tests.
- Flash Point.
- Asphalt Mixture Performance Test.
- Binder Content.
