What is apparent dip?

Apparent dip is the inclination of geologic beds as seen from any vertical cross section not perpendicular to the strike of the geologic beds. Note: When a vertical cross-section is perpendicular to the strike of the beds, the inclination seen in the cross section is called the true dip.

.

Correspondingly, what is the difference between true dip and apparent dip?

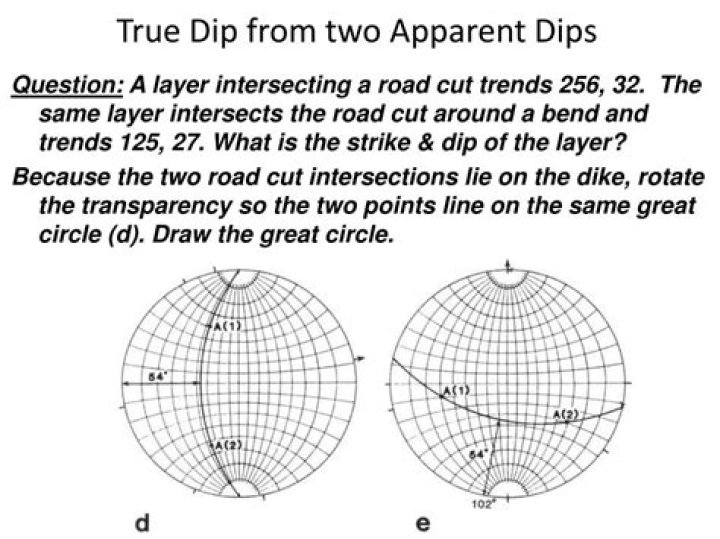

1 Answer. Apparent dip is the name of any dip measured in a vertical plane that is not perpendicular to the strike line. True dip can be calculated from apparent dip using trigonometry if you know the strike. Geologic cross sections use apparent dip when they are drawn at some angle not perpendicular to strike.

Likewise, what is dip direction in geology? Strike, in geology, direction of the line formed by the intersection of a fault, bed, or other planar feature and a horizontal plane. Dip is the angle at which a planar feature is inclined to the horizontal plane; it is measured in a vertical plane perpendicular to the strike of the feature.

Similarly one may ask, what is the difference between strike and dip?

DIP is the acute angle that a rock surface makes with a horizontal plane. STRIKE is the direction of the line formed by the intersection of a rock surface with a horizontal plane. Agents of EROSION wear away the rocks at the earth's surface.

How is strike and dip measured?

Measuring Dip:

1. AFTER you determine strike, rotate the compass 90°.
2. Place the SIDE of the compass flat against the plane.
3. Adjust the lever on the back of the compass until the air bubble in the "Clinometer level" is centered.
4. Read the dip directly from the scale in the compass.

Related Question Answers

Why is strike and dip important?

Measurement of strike and dip (i.e., the attitude of rock layers or other planar geologic features) helps geologists construct accurate geologic maps and geologic cross-sections. For example, data on rock attitudes helps delineate fold structures in layered rocks.

Why do geologists measure strike and dip?

Strike and Dip Geologists use these measurements to map geologic structures. The dip of a rock is the angle between horizontal and the slope of the rock. In the diagram above, strike can be found easily on the rock layers because the surface of the water represents a horizontal plane. The strike is due North.

How do you measure a strike and dip with a protractor?

First measure the plane. Then place a protractor flat on the plane aligned so that the base-line of the protractor is parallel to strike of the plane. The dip direction is 90º to this.

How do you calculate true thickness in geology?

True thickness = outcrop length in traverse direction X sin (apparent dip + or - slope angle) . cos (true dip) divided by cos (apparent dip).

What is apparent thickness?

b) Apparent Thickness- vertical distance between an upper and lower contact in a non- horizontal unit. The apparent thickness is equal to the true thickness only when the attitude of the unit is horizontal.

What is strike line?

Strike and dip refer to the orientation or attitude of a geologic feature. The strike line of a bed, fault, or other planar feature, is a line representing the intersection of that feature with a horizontal plane.

What is vertical thickness?

The thickness of a bed or rock body measured vertically at a point. The values of true vertical thickness in an area can be plotted and contours drawn to create an isochore map. See: attitude, bed, contour, isochore, isopach, stratigraphy, true stratigraphic thickness.

How do you find a strike and dip on a map?

To determine the strike, measure the angle between your constructed strike lines and the North direction on the map. In Figure 9, the strike is north-south (= 000? = 180?). By definition, dip is perpendicular to strike, and by using the Rule of V's (Figure 7) you can determine the direction of dip.

What is a dip slip fault?

Dip-slip faults are inclined fractures where the blocks have mostly shifted vertically. If the rock mass above an inclined fault moves down, the fault is termed normal, whereas if the rock above the fault moves up, the fault is termed reverse. A thrust fault is a reverse fault with a dip of 45 degrees or less.

What is angle of dip?

Also called: angle of dip, magnetic dip, inclination the angle between the direction of the earth's magnetic field and the plane of the horizon; the angle that a magnetic needle free to swing in a vertical plane makes with the horizontal.

What is an angle of dip?

Angle of Dip, also known magnetic dip or magnetic Inclination is the angle made by the Earth's magnetic field lines with the horizontal.

What is Dip Azimuth?

It is the azimuth of the "strike line" of the plane. (The azimuth is measured clockwise along an horizontal plane from the North direction to the strike line). Dip: The dip is an angle that can have any value between 0 (horizontal plane) to 90º (vertical plane).

What is the difference between strike direction of dip and angle of dip?

What is the difference between strike, direction of dip, and angle of dip? Strike - The compass direction of a line formed by the intersection of an inclined plane (such as a bedding plane) with a horizontal plane. Angle of dip - A vertical angle measured downward from the horizontal plane to an inclined plane.

What are the different types of folds?

There are three major types of rock folding: monoclines, synclines, and anticlines. A monocline is a simple bend in the rock layers so that they are no longer horizontal. Anticlines are folded rocks that arch upward and dip away from the center of the fold.
