What is an electronic transformer?

Electronic transformers are used to insulate circuits and to provide high to alternating-but-low impedance. They are also used to modify or maintain frequency response and wave shape at varying potentials.

.

Moreover, how does an electronic transformer work?

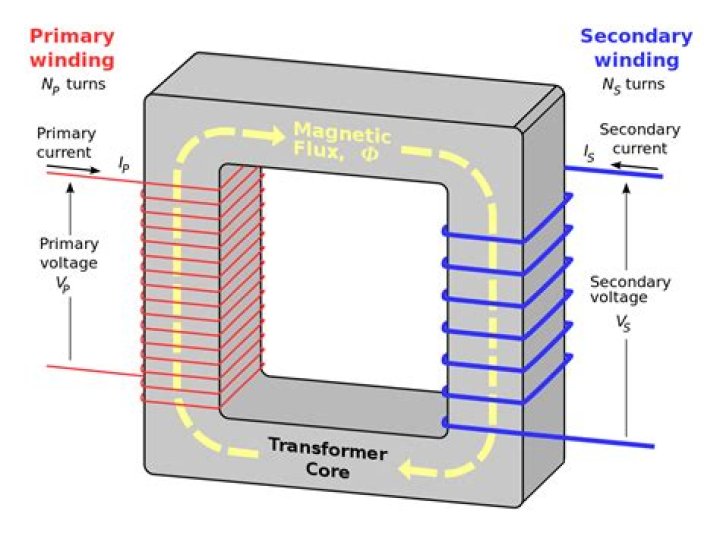

A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to "step up" or "step down" voltages and works on the magnetic induction principle. When voltage is introduced to one coil, called the primary, it magnetizes the iron core.

Also, what is the difference between electronic and magnetic transformers? Electronic Transformers The higher the frequency of the voltage, the smaller the transformer needs to be to provide the required output voltage. The electronic transformers are lighter and smaller than their magnetic counterparts. They are also more budget friendly but are noisy and only last 5-6 years.

In this manner, what is the use of transformer?

Transformer[edit] A transformer is a device that is used to either raise or lower voltages and currents in an electrical circuit. In modern electrical distribution systems, transformers are used to boost voltage levels so as to decrease line losses during transmission.

What is a transformer in physics?

A transformer is a device that changes (transforms) and alternating potential difference (voltage) from one value to another value be it smaller or greater using the principle of electromagnetic induction. A transformer consists of a soft iron coil with two coils wound around it which are not connected to one another.

Related Question Answers

Can a transformer work both ways?

Yes, it works in the opposite direction. However, do not exceed its original ratings, both voltage and current. The transformer will produce 240 V, but that winding only has insulation that is safe for 120 V, so you could get arcing between turns inside the transformer.

Does a transformer convert AC to DC?

From Wikipedia, the free encyclopedia: A transformer is an electrical device that transfers energy from one circuit to another by magnetic coupling with no moving parts. Transformers alone CANNOT convert AC to DC or DC to AC; they cannot change the voltage or current of DC; they cannot change the AC supply frequency.

What are the two main types of transformer?

The primary may be connected phase to ground or phase to phase. The secondary is usually grounded on one terminal. There are three primary types of voltage transformers (VT): electromagnetic, capacitor, and optical. The electromagnetic voltage transformer is a wire-wound transformer.

How do you test a transformer?

To test a transformer with a digital multimeter (DMM), first turn off power to the circuit. Next, attach the leads of your DMM to the input lines. Use the DMM in AC mode to measure the transformer primary.

Why do transformers explode?

When flooded with too much electricity, the sudden surge can cause a transformer explosion. Mineral oil, in turn, combusts explosively and rockets transformer scything into the air. All it takes is a trigger, a corroded or faulty wire, and the circuits surge will get ahead of the breaker.

What happens when a transformer blows?

When a transformer blows, it interrupts electrical service to any residences or businesses connected to the transformer. Electric service crews must replace the destroyed hardware, first shutting down the incoming electrical line to prevent damage and injury.

How do you size a transformer?

A 120-volt motor has a load amperage of 5 amps. Multiply 120 volts times 5 amps this equals 600VA now lets multiply the 125 percent start factor. Take 600 times 1.25 this equals 720VA and most transformers are sized by a factor of 25VA or 50VA. The required transformer would be a 750VA or .

How long does it take to fix a transformer?

Depending on the extent of the damage from the electrical transformer outage, workers can take anywhere between a few hours to a few days to fix the problem and replace the transformer.

What are the disadvantages of transformer?

Disadvantages: A transformer will not work with DC under any condition. Interrupted DC is a form of AC. With frequencies below 10 to 20 Hz, the transformer size becomes unwieldy. DC power transmission is used in the US, but requires a dedicated line from source to load.

Which transformer is used in industry?

Power Transformer The step-down power transformers are used to supply loads in industries at its rated voltages. Some of the power transformers also supply the power to the electronic circuits. The power transformer can be single or three phase units based on the application it is employed for.

What is the difference between AC and DC?

In direct current (DC), the electric charge (current) only flows in one direction. Electric charge in alternating current (AC), on the other hand, changes direction periodically. The voltage in AC circuits also periodically reverses because the current changes direction.

What is the main work of transformer?

Generally, the primary winding of a transformer is connected to the input voltage supply and converts or transforms the electrical power into a magnetic field. While the job of the secondary winding is to convert this alternating magnetic field into electrical power producing the required output voltage as shown.

What devices use transformers?

Transformers are employed for widely varying purposes; e.g., to reduce the voltage of conventional power circuits to operate low-voltage devices, such as doorbells and toy electric trains, and to raise the voltage from electric generators so that electric power can be transmitted over long distances.

Do I need a different transformer for LED lights?

All LED bulbs require a 'driver' (a special type of transformer) to work properly. Mains voltage LEDs (such as GU10 and B22 bulbs) have the driver built in to the bulb. If you are replacing existing incandescent 12V bulbs you will need to replace the transformer with a special LED driver.

Does LED driver get hot?

LEDs have a longer lifespan than legacy technologies such as incandescent and fluorescent. Overheating of the LED not only depreciates its light quality, but heat also gets trapped in the housing causing the driver to overheat which will result in reduced lifetime of the driver itself.

Do you need to change the transformer for LED lights?

They will have a transformer either in the ceiling or light fitting. Some LED bulbs, like the Philips Master LED range, have in-built circuitry that can deal with most (but not all) transformers, so you don't have to change them. In other cases, you need to replace the transformer with an LED driver.

Will 12v AC LED run on DC?

There is no such thing as an AC LED. There is a circuit inside which probably incorporates a bridge rectifier and current limiting resistor. If so, it will work just fine on 12 volts DC.

What is the difference between a transformer and an LED driver?

12VAC Electronic Transformers and LED Drivers The fundamental difference between the two is that LED drivers output DC while electronic halogen transformers output 12VAC. The yellow voltage signal is that supplied by a Redback electronic transformer to a Philips retrofit LED light.

How do you test an LED driver?

In order to thoroughly test an LED driver, we recommend our 6310A Electronic Loads with LED Array Simulation.

LED drivers are usually tested in one of the following ways;

1. Using LEDs.
2. Using resistors for loading.
3. Using Electronic Loads in Constant Resistance (CR) mode, or Constant Voltage (CV) mode.
