What is a wire tester?

A circuit tester is a device which is plugged into an electrical socket to make sure it is wired properly. A circuit tester has a series of lights that show the state of the wiring in the outlet, so the technician can verify that it has been installed properly.

.

In this regard, how do you check if a wire is live without a multimeter?

For example, get a socket and light bulb and attach a couple of wires to it, then touch one to the ground or neutral and another one wire to the test. If the lamp lights then it is live else then test the lamp on live wire like wall socket to make sure that it actually lights.

Also, how do you test electrical wires for power? How to Test Electrical Wires

1. Ensure that the power is either off or on, depending on which setting is needed at any given time.
2. Hold the insulated handles of the two wire probes; touch the black probe to the grounding wire, then touch the end of the red probe to a bare section of the hot wire.

Also question is, what is a cable tester used for?

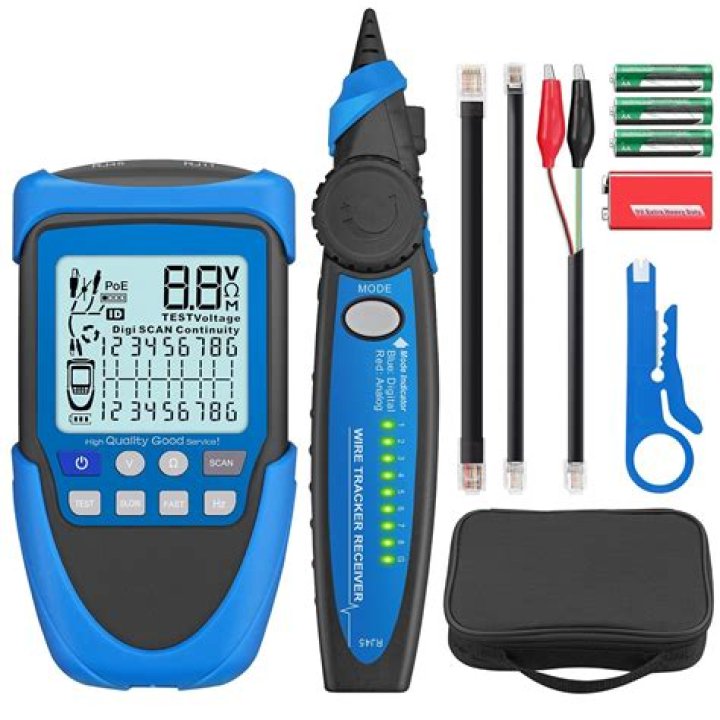

A cable tester is an electronic device used to verify the electrical connections in a signal cable or other wired assembly. Basic cable testers are continuity testers that verify the existence of a conductive path between ends of the cable, and verify the correct wiring of connectors on the cable.

How do you tell which wire is hot and which is neutral?

Most likely the neutral wire is white and the hot wire is red or black, but test to make sure. Identify the neutral wire in the fixture by looking at the wires. In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color.

Related Question Answers

How do you test a wire with a screwdriver?

Touch the tip of the tester screwdriver to the wire you're testing, being sure to hold the tester screwdriver's insulated handle. Look at the handle of the screwdriver. If the small neon light in the handle lights up, there is power going to the circuit. Otherwise the circuit is dead.

Is a voltage tester the same as a circuit tester?

Neon voltage testers, or neon circuit testers, are as simple as they come. They have a small body with a neon light inside and two short wire leads with a metal probe on each end. Neon voltage testers tell you only whether a voltage is present or not; they don't tell you how much voltage is in a circuit.

How does a voltage tester work?

Voltage Tester. The flow of electrical current is measured by placing an electrical tester at two points in the circuit. For example, if you suspect an electrical outlet is faulty, insert one probe of the tester into one slot in the outlet and the other probe into the other slot. The light in the tester should light.

Can I touch live wire?

If someone touches a live electrical wire If you see a person come into contact with indoor, low-voltage electricity, do not touch the person. If the person has come into contact with high-voltage, outdoor wires, call 911 and then the power company immediately.

How do I know where the wires are in my wall?

Before drilling, find out exactly where the wiring is.

1. Place the stud finder with wire tracing mode onto the wall.
2. Move the finder along the wall, front towards you and the flat side against the wall.
3. Move the stud finder over the electrical wires.

Why is neutral wire needed?

The neutral wire is often confused with ground wire, but in reality, they serve two distinct purposes. Neutral wires carry currents back to power source to better control and regulate voltage. Its overall purpose is to serve as a path to return energy.

How do I know if a hot wire is open?

How to Find an Open Hot in a House Circuit

1. Open the door to the circuit panel and make sure that all of the breakers are on and that none have been tripped.
2. Find an electrical outlet or see if there are any exposed electrical wires in the area.
3. Hold the electrostatic wand to the wire or cable until the indicator light comes on or a sound is heard.

Can you get shocked using a multimeter?

Shock hazards can occur if the meter and test leads are not properly maintained. Arc flash can occur if the meter is not properly rated for the voltage, the meter is exposed to transient voltages outside of its operating conditions, or because of defective parts or components.

Why is white wire hot?

Hot: The black wire is the hot wire, which provides a 120 VAC current source. Neutral: The white wire is called the neutral wire. It provides the return path for the current provided by the hot wire. Like the neutral wire, the ground wire is also connected to an earth ground.

Why does my neutral wire have voltage?

Because the resistance of the copper neutral wire is usually very near zero, this also keeps the voltage low. However, if the neutral wire is damaged or has a high impedance fault like a corroded connection, the voltage in the neutral can increase to a dangerous level at some point out in the branch circuit.

How do you tell if a wire is hot without a tester?

For example, get a light bulb and socket, and attach a couple of wires to it. Then touch one to neutral or ground and one to the wire-under-test. If the lamp lights, it is live. If the lamp doesn't light, then test the lamp on a known live wire (like a wall socket) to make sure it actually lights.

How do I get a positive and negative wire without a multimeter?

In series, connect the resistor to the other end of the coil. Connect the other end of the resistor to adapter DC wire #2. hold the compass near the eraser end of the pencil 6) if the compass points toward the eraser end, #1 is the negative wire. If it points away, #1 is the positive wire.

What is a Level 3 cable tester?

The level 3 that they are talking about is an accuracy rating for the cable testers. They have a level 4 accuracy that applies to ISO 11801 Class F and Class Fa standards (Tera and GG45 connectors). Soon there is supposed to be a level 5 accuracy.

How do you do a fluke test?

How to test for continuity

1. Turn the dial to Continuity Test mode (
2. If required, press the continuity button.
3. First insert the black test lead into the COM jack.
4. Then insert the red lead into the VΩ jack.
5. With the circuit de-energized, connect the test leads across the component being tested.

What is a cable short?

Short in electrical terms is an abbreviation for short circuit. This generally means that there is an unintended connection between two points allowing current to flow where it should not. In practice, it means that the cable is damaged and that two or more of the conductors are connected together.

What is a loopback plug used for?

loopback plug. A connector used for diagnosing transmission problems. Also called a "wrap plug," it plugs into an Ethernet or serial port and crosses over the transmit line to the receive line so that outgoing signals can be redirected back into the computer for testing.
