What is a wind rose diagram?

A wind rose diagram is a tool which graphically displays wind speed and wind direction at a particular location over a period of time.

.

Keeping this in consideration, how do you read a wind rose?

Interpreting the wind rose The percentage of calm conditions is represented by the size of the centre circle - the bigger the circle, the higher is the frequency of calm conditions. Each branch of the rose represents wind coming from that direction, with north to the top of the diagram. Eight directions are used.

Secondly, what is wind rose diagram in airport engineering? Wind rose: the wind data direction duration and intensity are graphically represented by a diagram called wind rose. The wind data should usually be collected for a period of at least 5 years and preferably of 10 years so as to obtain an average data with sufficient accuracy.

Hereof, what does a wind rose look like?

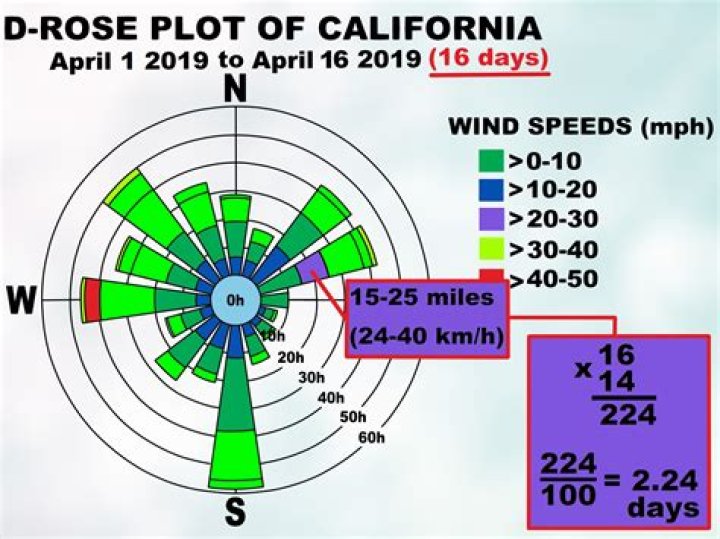

Presented in a circular format, the modern wind rose shows the frequency of winds blowing from particular directions over a specified period. The length of each "spoke" around the circle is related to the frequency that the wind blows from a particular direction per unit time.

What is a rose chart?

Also referred to as “polar area chart” or “coxcomb chart,” the Nightingale's Rose chart is a circular graph that combines elements of a radar chart and a column graph. In this graph, the proportional areas are plotted in a polar coordinate system, divided into equal segments (with the same angle).

Related Question Answers

Why is it called a compass rose?

The compass rose has appeared on charts and maps since the 1300's when the portolan charts first made their appearance. The term "rose" comes from the figure's compass points resembling the petals of the well-known flower. Naming them all off perfectly was known as "boxing the compass".

What does the wind symbol mean?

The symbol highlighted in yellow (in the diagram above) is known as a "Wind Barb". The wind barb indicates the wind direction and wind speed. On the otherhand, the term "eastward" means that the winds are blowing towards the east. Wind speed is given here in the units of "knots" (knt).

How do you read wind data?

Method 1 Reading the Barbs

1. Read the wind direction. The "flagpole" or directional vector of a wind barb shows you which way the wind is blowing.
2. Gauge wind speed. You can tell how hard the wind is blowing by looking at the "barb," line, or symbol at the end of each wind direction vector.
3. Read barb combinations.

What is wind frequency?

Presented in a circular format, the wind rose shows the frequency of winds blowing FROM particular directions. The length of each "spoke" around the circle is related to the frequency of time that the wind blows from a particular direction.

Is wind a noun?

wind noun (CURRENT OF AIR) a current of air moving approximately horizontally, especially one strong enough to be felt: There was a light wind blowing.

How do you make a wind rose in Excel?

How To: Create a Wind Rose Diagram using Microsoft Excel

1. Using Excel to make a Wind Rose – A step-by-step guide.
2. Wind Data.
3. Ensure that “0” wind speeds have been taken into account.
4. Insert a PivotTable.
5. Arrange the wind speed data into a summary table using the PivotTable Toolbar.
6. Countif Function.
7. Display the data as Relative Frequencies.

How do you convert the wind from degrees to cardinal directions?

To convert degrees to compass directions, I first divide the compass into 16 sectors of 22.5 degrees each. The sectors are like slices of pie, centered on the compass points. Tip: If you would like to use eight sectors instead of 16, with a shorter lookup table, divide by 45 degrees instead of 22.5 degrees.

What is calm period in airport?

Explanation : 9.Calm period is the percentage of time during which wind intensity is less than. 4.8 kmph. 6.4 kmph. 8.0 kmph.

What is runway orientation?

Runway Orientation is the magnetic bearing or compass heading of the centerline of the runway. Landings and take off best done into wind. Runways are oriented in direction of prevailing wind (95% usability factor).
