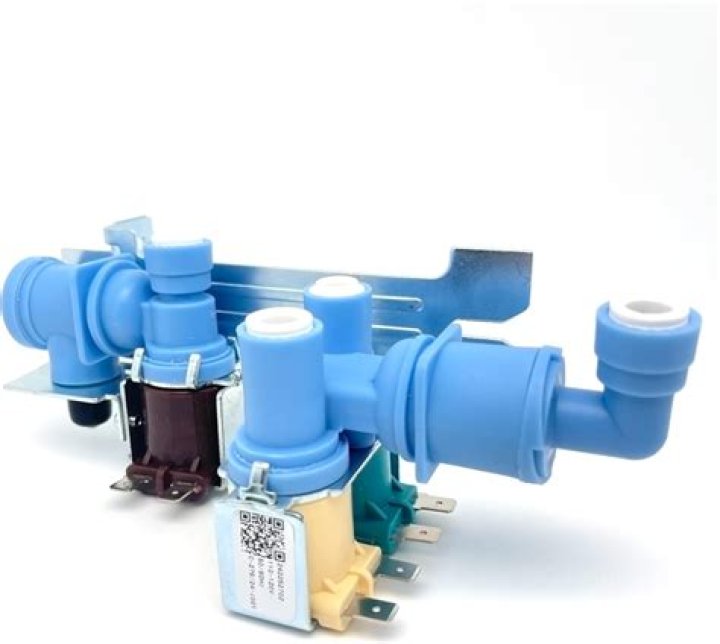

What is a water inlet valve for a refrigerator?
.
People also ask, how does a refrigerator water inlet valve work?
When the icemaker calls for ice, its switch closes an electrical circuit and energizes the solenoid-operated water valve. This allows water to flow through the valve and into the ice cube tray. The valve is equipped with a screen on its inlet to remove minerals and sediments in the water supply.
Secondly, why is my icemaker not filling with water? Cause: A common cause for a clog is frozen water in the line. Fix: To repair a frozen line, slide the refrigerator and unplug it. Locate the shut-off valve, typically underneath the sink or behind the refrigerator. Cause: There is also a possibility that the water filter for the ice maker is clogged.
Regarding this, where is the water inlet valve on a refrigerator?
Locate your icemaker's water inlet valve, it is typically located behind a refrigerator. Gently pull your refrigerator away from the wall. You may want to place scraps of carpet, of some other soft material below the fridge to prevent damage to the floor.
Why is there no water going into my ice maker?
Water may not be reaching the ice maker due to a frozen line, missing filter, or a closed supply valve. This is the water supply line. The valve is usually located under your kitchen sink, or there may be one behind the refrigerator. If there is no moisture on or around the valve, then there are no leaks.
Related Question AnswersHow do you test a water solenoid valve?
Press the battery onto the wires which surround the solenoid valve, and then use the torch or lamp bulb to test that there is enough power going through. The bulb should light up, just as with the multimeter, and if the valve is working then it should also open.Can water filter cause ice maker not to work?
However, the issue may be connected. In some refrigerator models, the water line that supplies the ice maker and water dispenser connect through the same water filter. If the filter is clogged, water can't get through to create ice.How do I unclog my ice maker water line?
- Shut off the water valve that feeds that water-dispenser and ice-maker lines.
- Remove the ice bin and dump the ice out in the sink.
- Pour 3 to 4 cups of white distilled vinegar into the ice-maker and dispenser lines with a small funnel and allow it to soak for five to 10 minutes to break down the lime.
What is a water inlet valve on a washing machine?
The water inlet valve on your washing machine is the part that the connect the two water hoses to the machine, and it controls the flow of both hot and cold water. A problem with the valve can cause the washer not to fill properly or not fill at all.How do you install a water solenoid valve?
Positioning of the solenoid valve- It is recommended to install the valve in a dry and ventilated environment. The valve gets hot during use.
- Most solenoid valves can be used in one flow direction only.
- The best way to install the valve is with the coil facing upward with a maximum deviation of 90 degrees (see picture).
Where is the water inlet valve on a washing machine?
The inlet valve can be found on the back of your washing machine. Its principal responsibility is to manage the entry of water into your washing machine. In other words, the inlet valve acts as a sort of gate keeper, allowing water to flow into the tub when it receives certain electrical signals from the washer.How much is a water inlet valve?
Gave new life to a 35 year old washing machine. Only 20 left in stock - order soon. My GE washer (Model# GFWN1100l3WW) was pausing on every wash. after lots of research I ended up with replacing the water inlet valve.Top Selected Products and Reviews.
| List Price: | $50.82 |
|---|---|
| Price: | $18.70 |
| You Save: | $32.12 (63%) |
What is an inlet valve?
inlet valve. [′in‚let ‚valv] (mechanical engineering) The valve through which a fluid is drawn into the cylinder of a positive-displacement engine, pump, or compressor. Also known as induction valve.Where is the water inlet valve on a GE refrigerator?
The water valve is a solenoid-operated switch located at the bottom of the refrigerator. When it is energized by electrical power, water is released from the supply line through the water valve and into the compact icemaker mold.How do you troubleshoot an ice maker?
Ice Maker Troubleshooting Guide- Check the shutoff arm.
- Check the supply valve.
- Inspect the water supply line.
- Test the shutoff switch.
- Check the freezer temperature.
- Inspect the ejector gear.
- Test the ejector motor.
- Test the ice mold heater.
Why wont my ice maker fill with water?
If the water inlet valve is defective, or if it has insufficient pressure, it won't allow water to flow through. As a result, the ice maker won't make ice. If the water inlet valve has sufficient pressure and is getting power, but the ice maker won't fill with water to make ice, replace the water inlet valve.How do you turn off the water going to the refrigerator?
How to Shut off a Saddle Valve on a Refrigerator- Locate the water supply line on the back of the refrigerator.
- Trace the line from the refrigerator to where it is connected at the other end.
- Turn the handle on the saddle valve clockwise to close the valve and stop the supply of water to the refrigerator.
