What is a two phase transformer?

Two Phase Transformers : are used where single phase load need arise and to have load balancing the power is derived from 2 phase. The Two Phase Transformers are specifically developed in industrial and residential electric circuits for voltage step-up or step-down applications.

.

Then, what is the difference between single phase and two phase?

Two-phase circuits also have the advantage of constant combined power into an ideal load, whereas power in a single-phase circuit pulsates at twice the line frequency due to the zero crossings of voltage and current.

Also Know, is 240v single phase or 2 phase? 240V power is used in the US and parts of the world. In the US 120 / 240V 1 Phase 3 Wire is the standard for homes and 240V 3 Phase Open Delta is the standard for small buildings with large loads. In parts of the world 240V Single Phase 2 Wire is the standard for homes.

Likewise, people ask, what is a double wound transformer?

A “double wound” Transformer, in technical terms, is a Transformer with two windings which are Electrically isolated from each other. The application of both, the Double wound and Auto wound Transformers, is same. To increase or decrease the available voltage(incoming supply voltage) as per the requirement.

Is there such thing as 2 phase power?

There is actually such a thing as two-phase power, with the two phases are 90° apart. The “five-wire two-phase” service is essentially like two “120/240V split-phase” systems, 90° out of phase, connected at the grounded center taps (on the secondary side of the transformer).

Related Question Answers

How do I know if I have 3 phase power?

If you really want to check, go look at the load center for your home. Count how many individual units there are bonded together in the main breaker. If there's two (or one), you have single phase power. If there are three bonded together, you have three phase power.

Is there a 2 phase power?

Dual Phase or Split Phase power is also Single Phase because it's a two wire Alternating Current (AC ) power circuit. In the US, this is the standard household power arrangement with two (Phase A, Phase B) 120V power wires (180 degrees out of phase with one another) like two bicycle pedals and one neutral wire.

What do you mean by phase?

In chemistry and physics, a phase is a physically distinctive form of matter, such as a solid, liquid, gas, or plasma. For example, liquid mixtures can exist in multiple phases, such as an oil phase and an aqueous phase. The term phase may also be used to describe equilibrium states on a phase diagram.

Can single phase convert to three phase?

Phase Conversion is the process of converting single phase power into 3 phase power. A “phase converter” creates a third line of voltage (a third sine wave) allowing three phase power to be possible in a single phase environment.

What is the difference between two phase and three phase?

The single-phase power supply has one distinct wave cycle whereas; three phase has three distinct wave cycles. Single phase requires the single wire to connect the circuit whereas; 3-phase needs 3-wires. The voltage of the single phase is 230V, whereas three phase voltage is 415V.

How many volts is a 3 phase?

The voltage betwee two line is called line voltage . 3 phase system is expressed with line voltages. The line votage is 440 volt. Also the voltage between any one phase and neutral for a 3 phase system is 240 volts.

Why do we use three phase instead of single phase?

A three-phase system is generally more economical than others because it uses less conductor material to transmit electric power than equivalent single-phase or two-phase systems at the same voltage.

How can you tell if a motor is single phase or three phase?

You can know whether it is 3 phase or 1 phase by various ways :

1. You can simply check the rating plate which will give you all the details. ? ?
2. You can check for capacitor . Capacitor is present only i will single phase motor because they are not self starting.
3. You can check for number of wires coming out from the motor.

Can two transformers be connected in series?

Center-tap Transformer using a Dual Voltage Transformer Have their windings connected together in series or parallel combinations to provide higher voltages or currents, or have their secondary windings connected together in series to produce a center tapped transformer.

Why is a transformer rated in KVA?

Iron loss and copper loss occurring in the transformer are also independent of the power factor. Transformers are rated in kVA because the losses occurring in the transformers are independent of power factor. KVA is the unit of apparent power. It is a combination of real power and reactive power.

What is a disadvantage of an autotransformer?

The main disadvantage of an autotransformer is that it does not have the primary to secondary winding isolation of a conventional double wound transformer. Then an autotransformer can not safely be used for stepping down higher voltages to much lower voltages suitable for smaller loads.

What are the two main types of transformer?

The primary may be connected phase to ground or phase to phase. The secondary is usually grounded on one terminal. There are three primary types of voltage transformers (VT): electromagnetic, capacitor, and optical. The electromagnetic voltage transformer is a wire-wound transformer.

What are hysteresis losses?

Hysteresis loss is due to the reversal of magnetization of transformer core whenever it is subjected to alternating nature of magnetizing force . Whenever the core is subjected to an alternating magnetic field, the domain present in the material will change their orientation after every half cycle.

What is the difference between transformer and autotransformer?

An autotransformer has only one winding which acts both as a primary and the secondary whereas the conventional transformer has a two separate windings, i.e., the primary and the secondary winding. The auto-transformer is smaller in size, whereas the conventional transformer is larger in size.

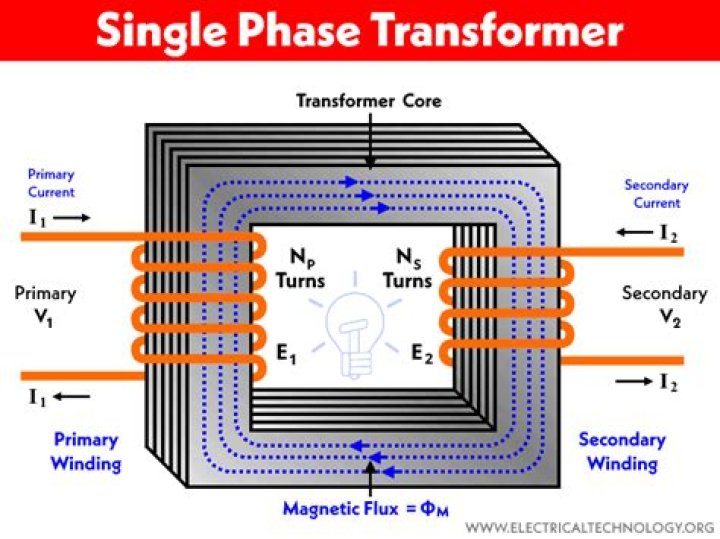

How does a transformer work?

A transformer is an electrical apparatus designed to convert alternating current from one voltage to another. It can be designed to "step up" or "step down" voltages and works on the magnetic induction principle. A voltage is then induced in the other coil, called the secondary or output coil.

How does a double wound transformer work?

Double wound Transformer is a device that transfers energy from one circuit to another by Magnetic coupling. Apart from its ability to easily convert between different levels of Voltage & current in AC circuits, transformer also provide very useful feature called Isolation.

What is a variac used for?

Variacs are also used in experiments and testing to simulate various voltage and line conditions. Electrical equipment designed for a voltage other than the 120V or 240V supplied domestically can be powered at the intended voltage level with a variac.

Are houses single phase?

Single Phase. Single phase is commonly called “residential voltage” for many reasons; one of which, is that most homes use it (it's the power present in wall plugs). This type of power relies on two wire conductors to distribute power, which create a single sine wave (low voltage).

Why is it called single phase power?

The term “split-phase” merely refers to the split-voltage supply in such a system. In a more general sense, this kind of AC power supply is called single phase because both voltage waveforms are in phase, or in step, with each other.
