What is a tester used for?

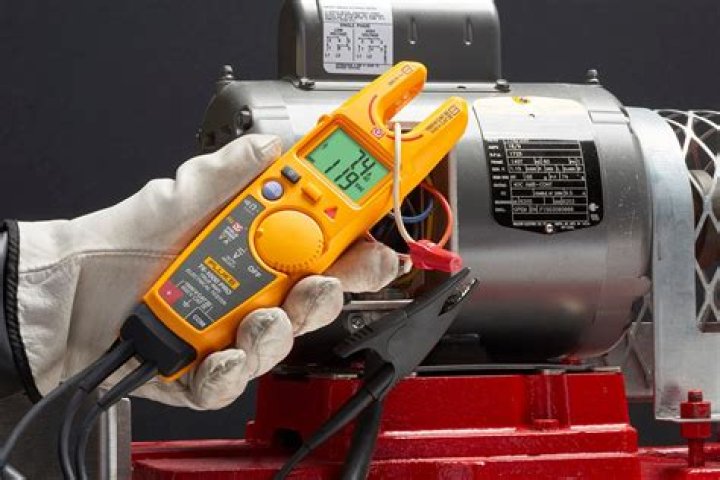

An electrical tester can measure a variety of electrical parameters, from current and voltage to resistance, continuity and beyond. An electrical tester is used by electrical contractors to assess everything from live wires and circuit breakers to electrical panels and power transformers.

Also asked, what is the purpose of a continuity tester?

A continuity tester is an item of electrical test equipment used to determine if an electrical path can be established between two points; that is if an electrical circuit can be made. The circuit under test is completely de-energized prior to connecting the apparatus.

Also, how do circuit testers work? A continuity tester does it simply and safely with the circuits turned off. It has a probe, which contains a battery and a light bulb, and a wire lead. When you touch the ends to any continuous conductive path, usually a wire, with both the probe and the lead, a circuit will be complete and the bulb will light.

Regarding this, when should you use a no touch tester?

A non-contact voltage tester is the safest way to make sure the power is off without touching any wires. This is where the non-contact voltage tester comes in handy. The tester will light up and/or make noise when it comes close to a hot (live) wire, even one that's covered in plastic insulation.

What is the difference between a circuit tester and a continuity tester?

A continuity tester is a device that is powered by batteries and has a probe at one end and a cord with either an alligator clip or another probe at the other end. Unlike other testers, a continuity tester is always used when a circuit is turned off or on wiring or devices that are disconnected from the circuit.

How does a continuity tester work?

To use a continuity tester, unplug the appliance and disassemble it to get at the component you want to test. Fasten the clip of the tester to one wire or connection of the component, and touch the probe to the other wire or connection.

What is the symbol for continuity?

Continuity: Usually denoted by a wave or diode symbol. This simply tests whether or not a circuit is complete by sending a very small amount of current through the circuit and seeing if it makes it out the other end. If not, then there's something along the circuit that's causing a problem—find it!

How do you use a screwdriver circuit tester?

Touch the tip of the tester screwdriver to the wire you're testing, being sure to hold the tester screwdriver's insulated handle. Look at the handle of the screwdriver. If the small neon light in the handle lights up, there is power going to the circuit. Otherwise the circuit is dead.

How do you test a wire with a screwdriver?

Touch the tip of the tester screwdriver to the wire you're testing, being sure to hold the tester screwdriver's insulated handle. Look at the handle of the screwdriver. If the small neon light in the handle lights up, there is power going to the circuit. Otherwise the circuit is dead.

How do you test for a short circuit?

How to Find a Short With a Multimeter

Turn the multimeter settings knob to "continuity." The continuity setting is indicated by a small microphone symbol.
Place the negative multimeter probe, the black one, on one end of the wire you want to test for continuity.
Look at the monitor on the multimeter.

How many types of testers are there?

So, I propose that there are at least seven different types of testers: administrative tester, technical tester, analytical tester, social tester, empathic tester, user, and developer. As I explain each type, I want you to understand this: These types are patterns, not prisons.

What is the use of a tester?

A test light, test lamp, voltage tester, or mains tester is a piece of electronic test equipment used to determine the presence of electricity in a piece of equipment under test.

How do you use a voltage tester?

How to Use Voltage Testers

Determine whether the electricity is on or off by using a two-prong voltage tester.
Place the black lead wire on the other screw.
Test a receptacle using a plug tester.
Use the right size of voltage tester.
Test using a non-touch voltage tester.

How does a pen tester work?

Non-contact voltage detectors Amplified electronic testers (informally called electrical tester pens, test pens, or voltage detectors) rely on capacitive current only, and essentially detect the changing electric field around AC energized objects. This means that no direct metallic contact with the circuit is required.

How is current measured?

The SI unit of electric current is the ampere, which is the flow of electric charge across a surface at the rate of one coulomb per second. The ampere (symbol: A) is an SI base unit Electric current is measured using a device called an ammeter. These conduction electrons are the charge carriers in metal conductors.

How do you check a circuit with a multimeter?

Place one probe at each end of the circuit or component you want to test. It doesn't matter which probe goes where; resistance is non-directional. If your multimeter reads close to zero, the range is set too high for a good measurement. Turn the dial to a lower setting.

How is a continuity tester used to detect an open circuit?

A continuity test is performed by placing a small voltage (wired in series with an LED or noise-producing component such as a piezoelectric speaker) across the chosen path. If electron flow is inhibited by broken conductors, damaged components, or excessive resistance, the circuit is "open".

Why continuity test is needed?

A continuity test is an important test in determining the damaged components or broken conductors in a circuit. It can also help in determining if the soldering is good, if the resistance is too high for flow of current or if the electrical wire is broken between two points.
