What is a slack adjuster on air brakes?

Having properly adjusted automatic slack adjusters not only maintains even brake wear, but also maintains the proper stopping distance. This is an automatic slack adjuster. It maintains proper brake adjustment on the wheel end. Then we will take a wrench and put it on the adjust nut and apply the brakes.

.

Considering this, what is a brake slack adjuster?

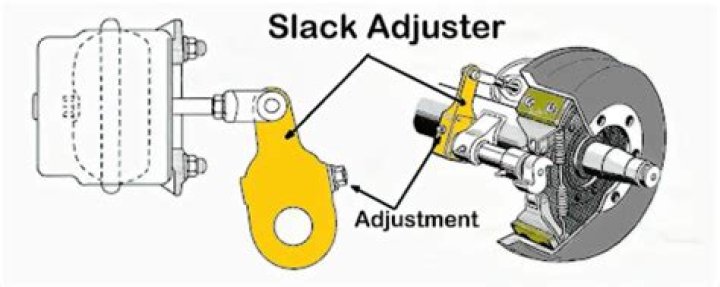

Slack adjusters (also called brake adjusters or just "slacks") regulate the distance that the air brake has to travel to apply friction to the wheel. When the brake is used, the operating rod pushes out on the slack adjuster which then turns the S-cam.

Similarly, what are 2 Functions of slack adjusters? The air brake slack adjusters perform two functions: (1) The slack adjuster acts as a lever arm to convert the linear pushrod force to rotational camshaft torque. The length of the slack adjuster determines the amount of torque multiplication provided from the pushrod.

Similarly one may ask, how does a brake slack adjuster work?

The slack adjuster assembly transmits the braking torque to the S-cam and facilitates the adjustment of clearance between the brake lining (brake pad) and the brake drum. So, when the driver presses down on the brake pedal, air is forced into the brake chamber and shoves the push rod out.

How much play should slack adjusters have?

Slack adjust should have no more than 2 inches of play.

Related Question Answers

What are the maximum leakage rates for air brakes?

6. What are the maximum leakage rates? Less than four psi in one minute for single vehicles and less than eight psi in one minute for combination vehicles. Less than two psi in one minute for single vehicles and less than three psi in one minute for combination vehicles.

What does the S Cam do?

The S-cam forces the brake shoes away from one another and presses them against the inside of the brake drum. When you release the brake pedal, the S-cam rotates back, and a spring pulls the brake shoes away from the drum, letting the wheels roll freely again.

Should you adjust automatic slack adjusters?

Automatic slack adjusters are able to maintain brake stroke more reliably than manual slack adjusters. But, automatic slack adjusters must still be checked as part of a pre-trip inspection. Once properly installed, automatic slack adjusters shouldn't need manual adjustment.

How often should air tanks be drained?

Each air tank is equipped with a drain valve in the bottom. There are two types of drain valves: Manually operated by turning a quarter turn (see Figure 5-1) or by pulling a cable. You must drain the tanks yourself at the end of each day of driving.

What is the use of slack adjuster?

The Automatic Slack Adjuster (ASA) is a vital part of the foundation brake. It acts as a lever, forming the connection between the actuator and the camshaft. The function of the ASA is to compensate for wear in both brake lining and brake drum while maintaining a constant stroke of the actuator.

What is the normal free travel for slack adjusters?

Automatic slack adjusters are designed to continuously and automatically maintain the brakes in proper adjustment during normal use. However, they must be checked daily to ensure they are maintaining proper push rod travel - less than one in. (25.4 mm) when manually pulled and less than two in.

When did automatic slack adjusters become mandatory?

1994

How do automatic brake adjusters work?

Each time the car stops while in reverse, the shoe is pulled tight against the drum. When the gap gets big enough, the adjusting lever rocks enough to advance the adjuster gear by one tooth. The adjuster has threads on it, like a bolt, so that it unscrews a little bit when it turns, lengthening to fill in the gap.

Do disc brakes have slack adjusters?

Unlike most drum brake designs that have a separate, external automatic or manual slack adjuster, disc brakes are equipped with an internal, automatic, wear-adjusting system that is located inside the sealed unit.

How do I know if my s Cam is bad?

The warning sign on s-cam wear is the shoes starting to stick out of the drums on the inside and wearing unevenly (more wear on the bottom than the top shoe). The worn parts put more pressure on the inside (axle side, not wheel side) surfaces, wearing the drum into a bell shape.

What is the most common cause of loss of effective braking in an air brake system?

A leak in the air brake system, which causes all the air to be lost, will also cause the springs to put on the brakes. Tractor and straight truck spring brakes will come fully on when air pressure drops to a range of 20 to 45 psi (typically 20 to 30 psi).

How much pressure should we apply to measure the brakes?

Inspection of brake adjustment at each wheel should be performed with air pressure between 621 and 690 kPa (90 and 100 psi ), the engine shut off and service brakes fully applied and spring brakes must be released. When pushrod stroke exceeds the adjustment limit of the brake chamber the brake is out of adjustment.

What are the five basic components of an air brake system?

5 Basic Components of an Air Brake System in Trucks

• Air compressor.
• Reservoirs.
• Foot valve.
• Brake chambers.
• Brake shoes and drums.

Where are slack adjusters located?

The slack adjuster is the part of an air-brake system that is used to adjust the brakes when needed. The slack adjuster is located on the air canister on the axle housing near the wheel. On vehicles with drum brakes, it is between the pushrod and the S-cam.

How can you check slack adjusters CDL?

Check slack adjusters on S-cam brakes. Park on level ground and chock the wheels to prevent the vehicle from moving. Release the parking brakes so you can move the slack adjusters. Use gloves and pull hard on each slack adjuster that you can reach.

What is meant by compounding the brakes?

What is meant by "compounding" the brakes? Compounding is the combination of two forces: the force applied by the spring brake chamber and the service brake chamber. Allows the driver to exhaust air out of the spring parking brake circuit to apply the brakes or pressurize the circuit to release them.

When brakes are applied the S cam rotates to expand the?

As the S-cam rotates, the two symmetrical brake pads are forced against the brake drum until the pressure is released and the brake pads return to their resting position. The principle of the S-cam allows the brakes of big vehicles to be more compact and less moving parts, since it only relies on a rotating shaft.

What is the basic principle of the dual air brake system?

Most heavy-duty vehicles use dual air brake systems for safety. A dual air brake system has two separate air brake systems, which use a single set of brake controls. Each system has its own air tanks, hoses, lines, etc. One system typically operates the regular brakes on the rear axle or axles.

What is brake lag time?

The time it takes for an air system to feed air to the brakes and will add an additional 32ft to the total stopping distance is known as brake lag . The air brake lag distance at 55 mph on dry pavement adds about 32 feet. To apply the air brakes during normal stops, push the brake pedal down.
