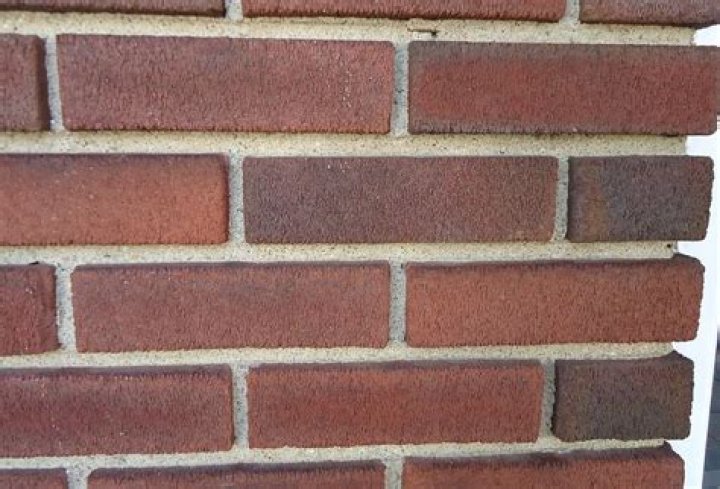

What is a raked mortar joint?

Definition of raked joint. : a masonry joint from which the mortar is raked out to a specified depth while still green.

.

Also to know is, what is a mortar joint and what is its purpose?

A mortar joint is the space between concrete blocks or bricks in masonry construction. This space is filled with a compound made of cement, aggregate and water referred to as mortar. One of the main purposes of mortar is to act as a bonding agent between the blocks, holding the wall together.

Additionally, what is a grapevine mortar joint? Grapevine Joint It is created with a grapevine jointer, which is a metal blade with a raised bead that creates an indented line in the center of the mortar joint. These lines are often rough and wavy, simulating the generally straight yet slightly irregular appearance of a grapevine.

Besides, what are the 6 kinds of mortar joint finishes?

Mortar joints can be made in a series of different fashions, but the most common ones are raked, grapevine, extruded, concave, V, struck, flush, weathered and beaded. In order to produce a mortar joint, the mason must use one of several types of jointers (slickers), rakes, or beaders.

How big is a mortar joint?

3/8"

Related Question Answers

How do you make a raked mortar joint?

Insert the nail head on the rake you made into a vertical joint. Pull the board straight down to created a raked joint. Remove any mortar you pull away from the joint. Repeat this process for all the vertical joints, and then move the rake from side to side do all the horizontal joints.

How thick should mortar be between blocks?

Mortar is a workable paste that binds building blocks together. It is made of cement and sand with different ratios to achieve the required strength. The compressive strength of mortar ranges between 2 to 12 N/mm². The mortar joints used in concrete block and brick construction are usually 10 mm thick.

What is a struck joint?

struck joint A mortar joint in brickwork formed by pressing the trowel in at the lower edge, so that a recess is formed at the bottom of the joint; suitable only for interior work.

What is the purpose of mortar between bricks?

Mortar is a workable paste which dries to bind building blocks such as stones, bricks, and concrete masonry units, to fill and seal the irregular gaps between them, and sometimes to add decorative colors or patterns to masonry walls.

What is the purpose of mortar?

The principal purpose of mortar is to adhesively bind together the individual masonry units. It also provides protection against the penetration of air and water through the joints in a masonry assembly.

How do you make mortar?

Add the masonry cement, lime, and sand in the appropriate amounts to your mixing container, then add water on top of the dry ingredients. Fold the mortar mix from the bottom into the water, when mixing by hand. Keep mixing until the water is mixed in. Then, add more water and keep mixing.

Why is it called tuck pointing?

The term tuckpointing derives from an earlier, less sophisticated technique that was used with very uneven bricks: a thin line, called a tuck, was drawn in the flush-faced mortar, but left unfilled, to give the impression of well-formed brickwork.

How big should mortar joints be?

Thus, width of bed joints should be at least 1/4 inch to permit proper tooling and no more than 1/2 inch to provide adequate strength.ASCE 6-88, Specification for Masonry Structures, provides for head joint widths from 1/8 to 1/4 inch and bed joints from 1/4 to 1/2 inch thick.

What are different types of mortar?

There are four main types of mortar mix: N, O, S, and M. Each type is mixed with a different ratio of cement, lime, and sand to produce specific performance characteristics such as flexibility, bonding properties, and compressive strength.

What is a vertical mortar joint called?

The term 'perpend' refers to the vertical joints between blocks or bricks that have been laid in a horizontal course to form a wall. Perpends are normally filled and sealed with mortar. The horizontal mortar joint in a wall construction is typically referred to as the bed joint.

What is mortar made of?

Mortar is used to hold building materials such as brick or stone together. It is composed of a thick mixture of water, sand, and cement. The water is used to hydrate the cement and hold the mix together. The water to cement ratio is higher in mortar than in concrete in order to form its bonding element.

Why do we need expansion joints?

Importance of Expansion Joints in an Architectural Structure. An expansion joint is an assembly that is designed to absorb safely expansion and contraction of different construction materials caused by heat. These joints also absorb vibration and permit movement due to earthquakes and ground settlement.

Which type of mortar joint is the most water resistant in an exterior wall?

Concave Joint This is the most common type of mortar joint used in exterior brick walls. Concave joints are, unsurprisingly, shaped with a slightly curved, concave pattern. This allows for maximum water resistance because it prevents rain from accumulating on any flat surfaces.

How wide is a brick mortar joint?

3/8

What are the gaps between bricks?

The gap between the ends of two bricks that is filled with mortar is a “head joint”, the gap underneath each course of bricks is called the “bed joints”, open head joints are weep or vent holes, left at the bottom of a wall or above a “through wall” flashing over doors and windows they “weep” out water that condensates

What is jointing in brickwork?

Jointing is the word used to describe the finish of the mortar joints between bricks, to provide a neat joint in brickwork that is finished fairface. Most fairface brickwork joints are finished, as the brickwork is raised, in the form of a flush or bucket handle joint.

Can I paint mortar between bricks?

Mortar joints are the concrete joints found between each brick on a wall. A coat of paint can dress up an old wall and make it look brand new. Painting mortar can prove to be challenging because of its porous nature and that it is recessed from the brick. Also, proper cure time is essential if the mortar is new.

What is a bed joint in construction?

bed joint. [′bed ‚jȯint] (civil engineering) A horizontal layer of mortar on which masonry units are laid. One of the radial joints in an arch.

What is the most commonly used mortar joint thickness?

Terms in this set (23)

• The most common mortar joint thickness is:
• The most common mortar joint thickness is:
• Portland cement mortar that is growing hard before use may be retempered with water and used:
• Portland cement mortar that is growing hard before use may be retempered with water and used:
