What is a maxi brake?

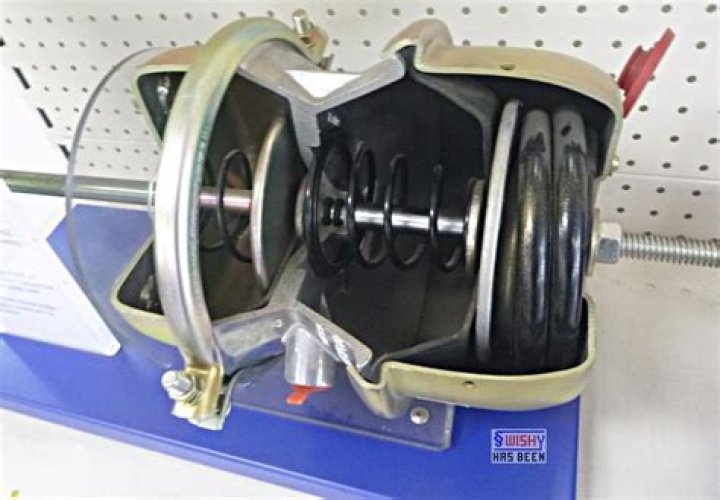

Maxi Brakes. Maxi Brakes is an another name for spring brakes . This type of brake has two chambers; one that acts the same as a standard brake chamber, and a second chamber that contains a very powerful mechanical spring that acts as a fail-safe should the air brake system lose air pressure.

Keeping this in consideration, what is a spring brake?

Spring brakes for emergency braking and parking Spring brakes are not air applied like service brakes. They apply when air pressure leaves the brake chamber and release when air pressure builds up in the chamber. Spring brakes use a different type of brake chamber from service brakes.

One may also ask, what does a brake chamber do? Brake chambers are a device that allows compressed air to be converted into mechanical force. They are used on the air brake system of heavy-duty vehicles. Brake chambers are known by many terms including air brake chambers, maxi chambers, brake cans, and spring brakes.

People also ask, how does an air brake work?

The brakes are applied by pushing down the brake pedal (also called the foot valve or treadle valve). The harder you push down on the pedal, the more air pressure is applied from the storage tanks into the brake chambers. The air pressure used to apply the brakes must be built up in the reservoirs by the compressor.

At what PSI do air brakes lock up?

With a fully-charged air system (typically 125 psi), turn off the engine, release the parking brake, and time the air pressure drop. The loss rate should be less than two psi in one minute for single vehicles and less than three psi in one minute for combination vehicles. Then apply 90 psi or more with the brake pedal.

What is the lag time for air brakes?

The air brake lag distance at 55 mph on dry pavement adds about 32 feet. Therefore, for an average driver traveling 55 mph under good traction and brake conditions, the total stopping distance is more than 300 feet.

How do you adjust the parking brake on air brakes?

Locate the adjusting mechanism on the slack adjuster. It usually takes a 9/16 wrench to turn it. Tighten it all the way; you should see the S-cams move and the brake shoes tighten against the drum. Then, loosen it 1/2 turn and you should be good.

What are spring brakes on a bus?

Some vehicles, such as buses, have a separate air tank which can be used to release the spring brakes. This is so you can move the vehicle in an emergency. One of the valves is a push-pull type and is used to put on the spring brakes for parking. The other valve is spring loaded in the “out” position.

How does a maxi brake work?

Maxi Brakes is an another name for spring brakes . This type of brake has two chambers; one that acts the same as a standard brake chamber, and a second chamber that contains a very powerful mechanical spring that acts as a fail-safe should the air brake system lose air pressure.

How can you check the spring brakes come on automatically?

What can you check to see if the spring brakes come on automatically? Step on and off the brake, with the engine off, the parking brake knob should pop out when air pressure falls between 20-40 psi. Get under the vehicle and pull on the spring brakes. Turn on the engine and pump the brake pedal down to the floor.

How do I know what size brake chamber I need?

Brake chamber size can be determined by measuring the diameter of the clamp used to hold it together or by locating the size markings on the brake chamber. The most common brake chamber size is 30. However, there are vehicles using both smaller and larger sizes.

What is a 30/30 brake chamber?

Brake Chambers. The many different size brake chambers are identified by numbers, which indicate the effective area of the diaphragm. For example, a Type 30 brake chamber has a 30 square inch effective area diaphragm size.

How do you cage a brake chamber?

How to cage your brakes.

To do this, crawl under truck or trailer and find brake chamber to the wheel with brakes you want to release.
On the chamber itself, you'll find the internal hex pipe plug.
Remove dust cover from brake chamber.
Insert caging tool into chamber and turn 1/4 clockwise to seat the tool.
Insert washer and nut.

What is a piggyback brake chamber?

The Bendix Piggyback Spring Brake is made up of a conventional brake chamber and an emergency or parking spring mechanism for use on vehicles equipped with cam foundation brakes. The actuator can be piped with various system arrangements to be automatically or manually applied under emergency braking conditions.

Where is the brake chamber located?

Air brake chambers are round metal containers, located at each wheel, where compressed air is converted into mechanical force to apply the brakes and stop the vehicle.

Why do buses release air?

The hissing sound is because instead of fluid like a car would use, the truck uses compressed air to actuate the brake pads. They use very large diaphrams because the pressures are lower. With brake fluid in a car, air in the system is very bad because of the high pressures and compressibility of air.

Why are Jake brakes so loud?

A true Jacobs Engine Brake modifys the exaust valve timing, keeping it open longer and building lower cylinder pressure, therby slowing the vehicle down. It is loud because it builds up different pressure in the cylinders as the exhaust valve opens.

Can air brakes fail?

In those airbrake courses that were developed in the 1970s, many drivers are taught that air brakes are dangerous. And that air brakes could potentially fail at any given time. Unfortunately that is no longer true! With advances in technology, modern air brake systems are more or less bulletproof.

What causes air brakes to release slow?

The Problem: Brakes Apply or Release Too Slowly Here are five possible causes: Restriction in either one of the control pipes or delivery pipes. Kinked nylon tubing is a common fault. Blocked airline filters on the trailer emergency or service lines.

What is the difference between air brakes and regular brakes?

Brakes convert the energy of a moving vehicle into heat. Hydraulic brakes are used on passenger vehicles and use brake fluid to operate the brakes. Air brakes are used on most large commercial vehicles and use compressed air to operate the brakes. Vehicles with air brakes may use either drum or disc type components.

How does parking brake work?

A parking brake controls the rear brakes and is a completely separate device from your vehicle's regular hydraulic brakes. When a parking brake lever is pulled (or when a parking brake pedal is pushed), these cables transmit the necessary force to keep your vehicle in place or to stop the vehicle.

Why do air brakes take longer than hydraulic brakes?

Air braking takes more time than hydraulic braking because air brakes: A Need to have airflow through the lines to work. B Use different brake drums. C Require heavier return springs.

What are air brakes on a bus?

Air brake systems are typically used on heavy trucks and buses. The system consists of service brakes, parking brakes, a control pedal, and an air storage tank. For the parking brake, there is a disc or drum arrangement which is designed to be held in the 'applied' position by spring pressure.

What is the minimum brake thickness allowed by DOT?

6.4 mm
