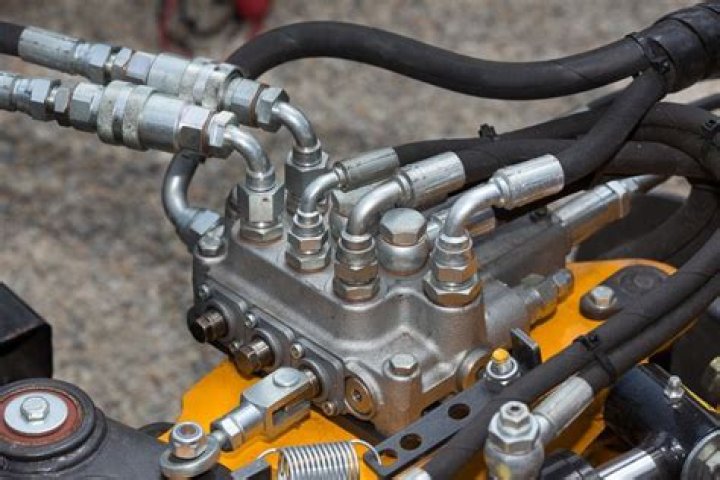

What is a hydraulic valve?

A hydraulic valve properly directs the flow of a liquid medium, usually oil, through your hydraulic system. Hydraulic valves are subdivided into three main categories: directional control valves, pressure control valves and flow control valves. All valves operate a different function in the hydraulic system.

.

Keeping this in consideration, how many types of hydraulic valves are there?

three types

One may also ask, what is a cetop valve? Cetop hydraulic directional control valves. A hydraulic directional control valve sends the incoming oil flow in a certain direction. Cetop directional control valves are characterised by a simple modular construction.

Thereof, what are valves used for in hydraulic systems?

Hydraulic valves are a vital feature of hydraulic power systems. They regulate the flow and pressure of water or oil in the systems. Valves also control volume of fluid that flows through the system. This helps to sustain a balanced state of power dynamics in various hydraulic systems.

How does a 4 way hydraulic valve work?

Four-way, directional-control valves are used to control the direction of fluid flow in a hydraulic circuit, which controls the direction of movement of a work cylinder or the rotation of a fluid motor. A typical four-way, directional-control valve has four ports: • One pressure port is connected to a pressure line.

Related Question Answers

What are the two types of hydraulic systems?

Open loop hydraulic system and closed loop hydraulic system are the two types of hydraulic system. In an open loop system, when the actuating mechanism is idle, there will be fluid flow but no pressure. For a closed loop system, when the pump operates there will be pressure for fluids.

What are different types of control valves?

List of common types of control valve

• Sliding Stem. Globe valve. Angle body valve. Angle seat piston valve.
• Rotary. Butterfly valve. Ball valve.
• Other. Pinch valve. Diaphragm valve.

What does P and T stand for in hydraulics?

Standard port labeling convention on hydraulic valves is P stands for pump (high pressure input) and T stands for tank (low pressure return to reservior).

What is a 4 way 2 position valve?

4-Way/2 and 3 Position Valves. Four-ported valves are generally used to operate double-acting cylinders or actuators . They have four or five pipe connections, commonly called ports: • One pressure inlet.

How many types of valves are there?

Learn about 9 Different Types of Valves used in Piping such as Gate Valve, Globe Valve, Check Valve, Plug valve, Ball Valve, Butterfly Valve, Needle Valve, Pinch Valve and Pressure Relief Valve.

What is a pilot valve in hydraulics?

A hydraulic pilot valve is the part of the machinery that controls the high pressure of the hydraulic fluid as it passes through the machine, and regulates the functioning of the other valves. Valves in hydraulic equipment are commonly called pilot-operated valves.

What are the basic components of a hydraulic system?

Primary Components of Hydraulic Systems

• Hydraulic power pack (featuring Reservoir, Primary energy source, Hydraulic pump, Pressure relief valve and pressure indicator, Filters, Fluid level indicator, Air breather)
• Direction control valve.
• Other control valves.
• Actuator.
• Hoses (fixed and flexible)

How does a hydraulic system work?

Hydraulic systems use the pump to push hydraulic fluid through the system to create fluid power. The fluid passes through the valves and flows to the cylinder where the hydraulic energy converts back into mechanical energy. The valves help to direct the flow of the liquid and relieve pressure when needed.

How can flow rate be regulated?

For every pressure, the pump will only deliver one specific flow rate. Therefore, to control the flow of a centrifugal pump, simply set the output pressure to the point on the P-V diagram that allows the pump to deliver the desired flow rate. The output pressure of the pump is set using a back pressure regulator.

How do you adjust a hydraulic flow valve?

Open a flow control valve by turning it in the counterclockwise direction. Use the recommended number of turns or fractional turn to open the valve for the desired pressure. Set the valve to the desired pressure by turning it to a specific setting, or by measuring with a pressure meter downstream.

What does A and B stand for in hydraulics?

Directional control valves (DCVs) are one of the most fundamental parts of hydraulic and pneumatic systems. DCVs allow fluid flow (hydraulic oil, water or air) into different paths from one or more sources.

What is the function of check valve?

Simply put, a check valve allows flow in one direction and automatically prevents back flow (reverse flow) when fluid in the line reverses direction. They are one of the few self-automated valves that do not require assistance to open and close.

How many types of hydraulic pumps are there?

Three

What are valves used for?

A valve is a device that regulates, directs or controls the flow of a fluid (gases, liquids, fluidized solids, or slurries) by opening, closing, or partially obstructing various passageways.

Which valve is best for flow control?

Continue reading to learn more about each of these types of flow control valves and their functions.

1. Gate Valves. Gate valves are general service valves primarily used for on/off, non-throttling service.
2. Globe Valves.
3. Pinch Valves.
4. Diaphragm Valves.
5. Needle Valves.

How does a hydraulic valve block work?

Hydraulic Manifold Blocks are also called Hydraulic Valve Blocks, and they are machine parts that act as junctions between components in a Hydraulic System to regulate fluid flow. In this machine, there is a front and back bucket with telescopic arms, where the fluid flows.

What is hydraulic control system?

A hydraulic system controls the transmission of energy. It transforms the mechanical energy of a prime motor into fluid energy. Thus, they have been widely used as the energy transmission control systems in aircraft, ships, construction machinery, machine tools and others.

What does cetop 3 mean?

CETOP is the abbreviation of Comité Européen des Transmissions Oléohydrauliques et Pneumatiques. CETOP is the European Fluid Power Committee.

What is a 5 2 way valve?

3 way is a three port valve that allows flow through the valve into a chamber, and then out through the valve exhaust. 5/2 way is a five port, two position valve that will put a fluid or air into one end of a double acting device as well as allowing the other end vent to exhaust.
