What is a helix anchor?

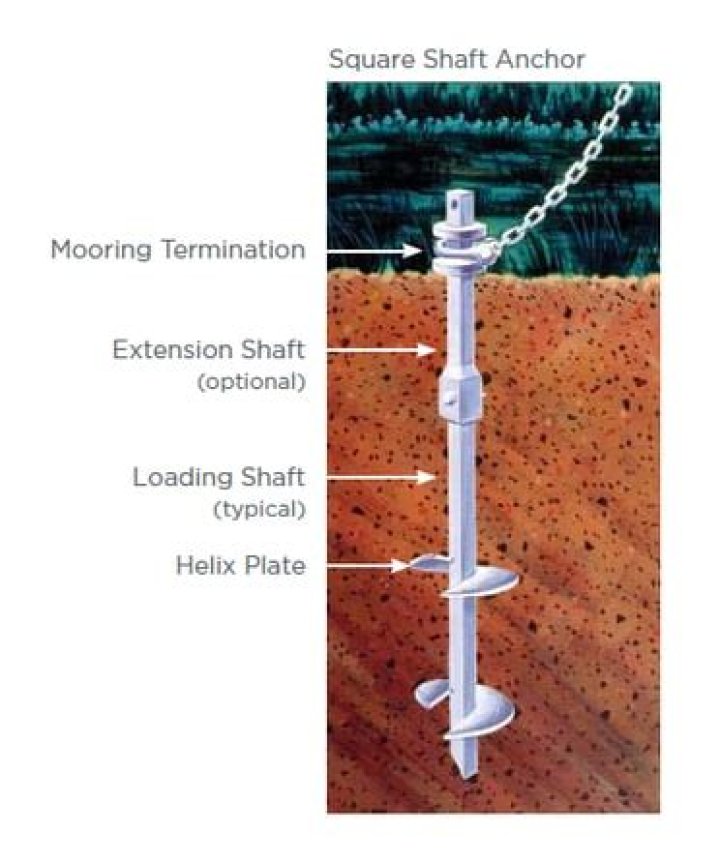

A helical anchor, also known as a screw pile, screw anchor, or helical pile, is an extendable foundation system which consists of helically shaped steel plates that are attached to a central steel shaft with a round or square cross-section.
.
Moreover, how do helical piles work?
Helical piles are installed by twisting them into the soil, just like a corkscrew is twisted into a bottle of wine. In many cases, the steel pile itself is enough to meet the load requirements of the project. However, for more robust deep foundation systems, concrete (also known as grout) can be incorporated.
Secondly, what are auger anchors? One of the best ways to anchor sheds or mobile homes is with auger anchors. These devices have auger ends which drive into the ground creating a secure hold for attaching cables or straps. Auger anchors usually do not require cement for permanent placement, unless it is mandated by local building codes.
Likewise, how do you install a helix mooring?
- Place pipe wrench around anchor shaft and begin screwing mooring anchor into the soil.
- Screw the mooring anchor into the soil until the forged eye is at or just below the soil surface.
- Attach your mooring chain and other equipment as needed and voila!
What is the difference between helical piers and push piers?
When the soil is known, the helical piers are ready to be placed at the desired depth and ensure stability in the piers. Unlike push piers, these piers rely on the weight of a heavy structure to be pushed into the soil. Helical piers are also better for lighter structures.
Related Question AnswersHow deep do piles need to be?
Piles were installed to a minimum depth of 300 mm or to solid bearing, and were required to finish 150-350 mm above cleared ground level. They were equally spaced in rows to give a maximum bearer span of 1350 mm, and rows were spaced 1.6-4.5 m apart (joist span).Are helical piers good?
Because the piers are pushed down to the appropriate level, it is a good choice when the condition of the soil is unknown. Since these piers do not rely on the weight of a heavy structure to push them into the load bearing soil, helical piers are ideal for lighter structures such as decks or stoops.How much weight can a helical pier hold?
It is the general estimation that piers last over 150 years in normal soil conditions. How much weight can a Helical pile support? Depending on the job our Hercules Pile can hold more than 500 tons or 1,000,000 pounds.How much do helical piles cost?
Many contractors assume that helical piles are too expensive. The costs can vary regionally and with the size and depth of the pile, but our typical residential helical pile costs $150 to $250 installed.What are helical piles used for?
Screw piles, sometimes referred to as screw anchors, screw-piles, helical piles, and helical anchors are a steel screw-in piling and ground anchoring system used for building deep foundations. Screw piles are manufactured using varying sizes of tubular hollow sections for the pile or anchors shaft.How many screw piles do I need?
The industry usually recommends a distance of 8 to 10 feet between screw piles, depending on the type of structure.How do push piers work?
A push pier is basically a series of hollow pipes fit together and pushed into the ground, hence the name push pier. Piers are pushed in using a hydraulic ram until it reaches load-bearing stratum. They are then anchored to the structure with pier brackets.How much does it cost to put in a mooring?
Mooring and berthing There are dry stack and rack options at most marinas and costs range from around $2500 to $4500 a year depending on size. If your boat is large or you use it a lot check out a marina berth or permanent mooring options.How much does it cost to install a mooring?
In the United States, the typical cost of installation and maintenance of one mooring buoy is approxi- mately $500 for one year.How do you use ground anchors?
Mark the site for the ground anchor with chalk or spray paint. Stand the ground anchor on the marked spot, with the sharp tip facing downward. Snap the ground anchor installation wrench onto the shaft of the screw. This is a large bar that sits perpendicular to the anchor and can be used to gain leverage to turn it.How does a drywall anchor work?
A drywall anchor goes between the screw and the drywall, biting into the drywall much more effectively than a screw would. Then, you screw into the anchor, so everything stays in place.How do you anchor a shed?
How to Properly Anchor a Shed: The Only Guide You Need- Drill or dig the holes, tamp some gravel into the bottom.
- Slide a sonotube in to form it up.
- Level it to the needed height, and fill it with concrete.
- Set a galvanized anchor bracket in before the concrete sets.
- Align and level the brackets and you're all set to secure your shed.
How do you install auger style shed anchors?
- Pound the tip of a metal auger-type shed anchor into the ground about 6 to 12 inches from the each corner of the shed.
- Slide a piece of steel pipe through the eye at the top of the auger and turn it counter-clockwise to screw the auger into the ground.
