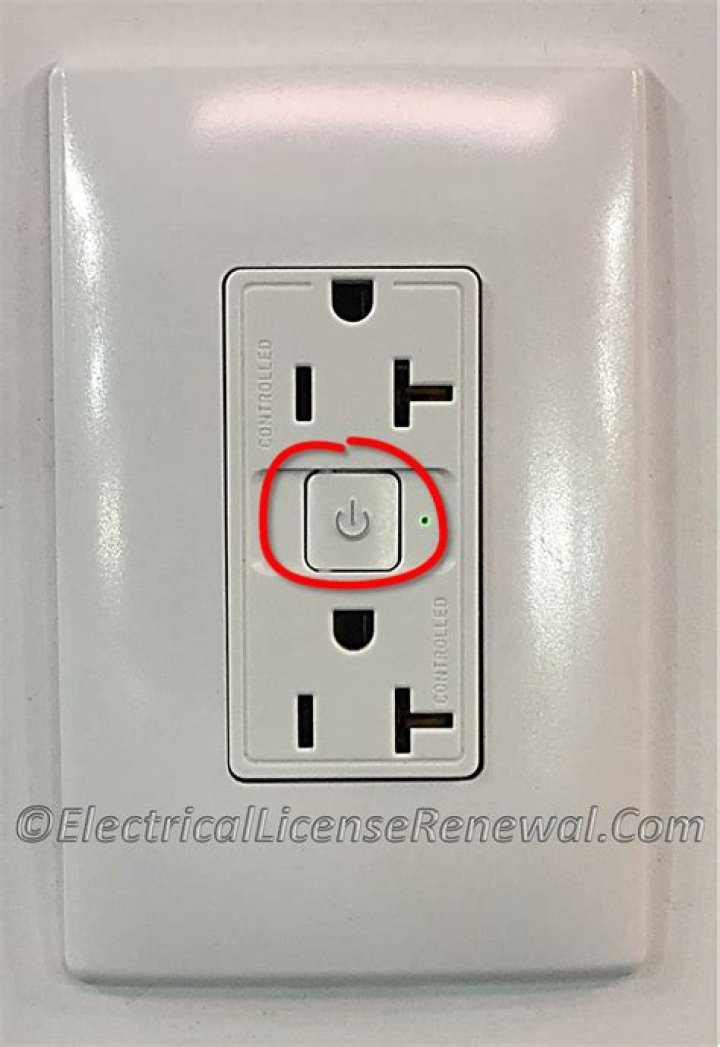

A simple strategy involves Receptacle Control also known as Plug Load Control which automatically turns off plug loads when a space is vacated. Plug loads include devices that plug into a standard electrical outlet, often called “standby” or “vampire” loads..
Also question is, where are controlled receptacles required?
The Energy Standards require both controlled and uncontrolled 120-volt receptacles in lobbies, conference rooms, kitchen areas in office spaces, copy rooms, and hotel/motel guest rooms.
Beside above, what is required of an outlet that will be controlled by an automatic device? This code requires that up to 50 percent of all 125-volt, 15- and 20-ampere receptacles be automatically controlled. The control could be an energy management system, timer or sensor.
In this regard, how do controlled outlets work?
When power shifts 10 percent above the preset threshold on the control outlet, a sensor circuit detects that you've turned on the TV, and it triggers power to the outlets controlling your TV-related accessories. When power to the control outlet drops, the Smart Strip cuts power instead.
Are smart power strips worth it?
Smart power strips won't cost you any more than a regular strip. They'll both hover around 10-15 bucks. Put simply, a smart power strip saves you more money when more things are plugged into it. They also save you more money when the things plugged in draw a lot of power.
Related Question Answers
What is a master controlled outlet?
The 'Master-controlled' outlets only work when something is plugged into the 'Master' outlet and powered on. This product intentionally cuts power to the 'Master-controlled' outlets when the primary component (such as a PC or laptop) that is plugged into the 'Master' outlet is powered off or goes into sleep mode.What is APC UPS master?
To conserve power, the Back-UPS uses “master controlled outlets”. The Master outlet senses when the master device (computer) that is plugged into the Master outlet is no longer drawing current, and automatically shuts off power to the Controlled outlets.Is it code to install outlets upside down?
The electrical code allows outlets to be installed with the ground plug hole facing up, down or sideways. It's up to you, there is no standard electric outlet orientation. So that means there really is no such thing as upside down outlets.Can outlets face up?
Receptacles are presently not permitted, according to 406.5(E), to be installed in a face-up position in countertops, or similar work surfaces. These seating-mounted receptacles can also be listed as a receptacle assembly or as a GFCI receptacle assembly for countertop applications or installed in a listed floor box.Do you need tamper resistant outlets?
For example, any 15- or 20-ampere receptacle that is part of a luminaire or appliance—those receptacles totally controlled by a wall switch in any habitable room, those located within cabinets or cupboards, or any receptacles located more than 5½ feet above the floor—is required to be tamper-resistant.Which way should outlets be installed?
The electrical code allows outlets to be installed with the ground plug hole facing up, down or sideways. It's up to you, there is no standard electric outlet orientation. So that means there really is no such thing as upside down outlets.Are in use covers required?
For several code cycles, outlet box hoods, also called in-use covers or bubble covers, have been required for 15- and 20-ampere, 125- and 250-volt receptacles installed in wet locations. They must also be weatherproof whether or not the attachment plug cap is inserted.What causes receptacle tamper resistant?
Tamper-resistant outlets are designed to prevent kids from hurting themselves while fidgeting with an outlet. They have two spring-loaded shutters that close the slots when you remove a plug. When you insert a plug, both shutters compress and the slots open again to accept the plug.Are switched outlets required?
At least one wall-switch-controlled lighting outlet must be installed in every habitable room (and bathroom) of a dwelling [210.70(A)(1)]. Unless meeting one of the two exceptions, at least one lighting outlet controlled by a wall switch is required in every habitable room.When did tamper resistant outlets become required?
Tamper-resistant receptacles for dwelling units were introduced in the 2008 NEC in an effort to prevent small children from inserting foreign objects (paper clips, keys, etc.) into energized electrical receptacles.What is the NEC code for outlets?
REPLACEMENT RECEPTACLES NEC 210-52 Generally, receptacle outlets in habitable rooms shall be installed so that no point along the floor line (measured horizontally) in any wall space is more than 6 feet from an outlet in that space. An outlet shall be installed in each wall space 2 feet or more in width.Can I connect red and black wires together?
Red Electrical Wires In 220-volt circuits, red wires are the secondary live wires. Like black wires, they can also be used in some types of switch legs. It's possible to link two red wires together or a red wire to a black wire.Does the red wire connect to black or white?
Red. Red electrical wire indicates the secondary live wires in a 220-volt circuit, used in some types of switch legs and in the interconnection between smoke detectors that are hard-wired into the power system. You can connect a red wire to another red wire or to a black wire.How many wires can you connect to an outlet?
Counting Wires in Electrical Boxes Each insulated wire, all cable clamps combined, all uninsulated wires combined, and each support for light or another fixture count as one wire. Each switch, outlet, or other device counts as two wires.Why are there 6 wires in my electrical outlet?
Look inside the outlet box to identify the six wires. The two bare copper ground wires help prevent accidental electric shock. One ground connects to the outlet from the main power source, while the other connects the outlet to the next one on the circuit just like the other wires.Can I wire lights and outlets on the same circuit?
My short answer to the question is that “Yes, lights and power outlets (a.k.a AC receptacles) can be on the same circuit controlled by a circuit breaker, especially in a single family residential house”.
