What is a call activity?

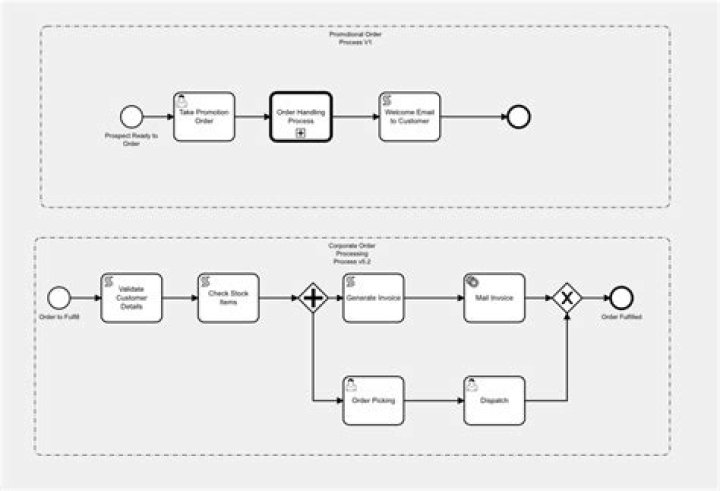

A Call Activity identifies a point in the Process where a global Process or a Global Task is used. The Call Activity acts as a “wrapper” for the invocation of a global Process or Global Task within the execution.

.

Keeping this in view, what is a BPMN activity?

A BPMN Activity is simply "Work" that a company or organization performs in a business process. An Activity is can be atomic (Tasks) or decomposable (Sub-Processes).

Furthermore, what is sub process in BPMN? Sub-Processes represent multiple activities that work together to perform a part of a total process. In BPMN, a Sub-Process can have an expanded or collapsed representation. In an expanded Sub-Process, all its details are shown within its limits.

Simply so, what is a service task in BPMN?

A Service task should be used when an external service is called to perform a task. This could be a web service or an automated application. And a Business rule task represents communication with a business rules engine, inputting information and receiving output of calculations.

What is the difference between BPMN and UML?

The UML notation is primarily focused on modeling software system, but not designing a system, whereas the BPMN notation is focused on modeling business processes.

Related Question Answers

What are the different types of process models?

There are hundreds of different process models to choose from, e.g: • waterfall, • code-and-fix • spiral • rapid prototyping • unified process (UP) • agile methods, extreme programming (XP) • COTS … But most are minor variations on a small number of basic models.

What is a data object in BPMN?

Data Objects may represent e.g. documents used in a process, both in physical and digital form. They look like a page with folded top right corner. Important thing about plain Data Objects is that they are generally available as long as the process instance is live.

What is a compensation activity in BPMN?

We can use cancel events to truly undo steps within transactional subprocesses. Compensation events are used when we don't want to undo a step, but do want to record both that step and a future activity (task or subprocess) that compensates for the original activity.

What is boundary event in BPMN?

A boundary event is an event shown on an activity boundary that can be triggered or thrown at any time while the associated task or activity is being performed. In other words, a boundary event is a type of intermediate event. In the example below, a Timer boundary event is shown.

What does a data collection symbol mean?

Data collection symbol - Signifies information collected within a business process. Data storage symbol - Represents the ability to store or access data that's associated with a business process.

What is parallel gateway in BPMN?

A parallel gateway is very different than the previous gateways because you don't evaluate any condition or event. Instead, a parallel gateway is used to represent two concurrent tasks in a business flow. It is the same as a fork in a UML activity diagram.

How do you set a timer on BPMN?

Open the BPMN process. If you want your process to have a single start event, then you must right-click the start event and select Change Trigger Type and then Timer. If you want your process to have multiple start events, then you must select a timer start event from the Start Events section in the Component Palette.

What is sub process?

A sub process is a single activity that contains activities, gateways, and events which form a process. A sub process is completely embedded inside a parent process.

What do flowchart shapes mean?

Flowcharts use special shapes to represent different types of actions or steps in a process. Lines and arrows show the sequence of the steps, and the relationships among them. These are known as flowchart symbols.

What is a sub process in a flowchart?

We can define a subprocess flowchart as the representation of an activity that contains a series of small parts, that is: this activity can be represented by a process flowchart (in this case, a subprocess flow), since it's inserted into a Process flow chart.

What is the difference between a process and a subprocess?

As nouns the difference between process and subprocess is that process is a series of events to produce a result, especially as contrasted to product while subprocess is a process that is part of a larger overall process.

What is a process flow in BPMN?

BPMN depicts the end to end flow of a business process. The notation has been specifically designed to coordinate the sequence of processes and the messages that flow between different process participants in a related set of activities.

What is a sub process in Visio?

Create subprocesses and reuse them in a process diagram. Subprocesses can be on separate pages in a single document, or, if you have subprocesses that you might use in multiple diagrams, you can create the subprocess diagram once and save it. Then you can link to that diagram from subprocess shapes in other diagrams.

How do you show parallel process in Visio?

Re: Showing parallel processes in Visio 2010 If you want you could use the Drawing Explorer window, scroll down to the Masters section, look for the Open Rectangle shape you've just dropped on the page, then rename it as Parallel Process!

How do I show subprocess in Visio?

How to Create Subprocesses from a Selection in Visio 2010

1. Select the process you wish to include as a sub-process.
2. Click on the Process tab in the Office Ribbon.
3. To open the subprocess, hold down the Control [Ctrl] key on your keyboard while clicking on the process.
4. To return to the main process page, simply click on the appropriate page tab at the bottom of the screen.
