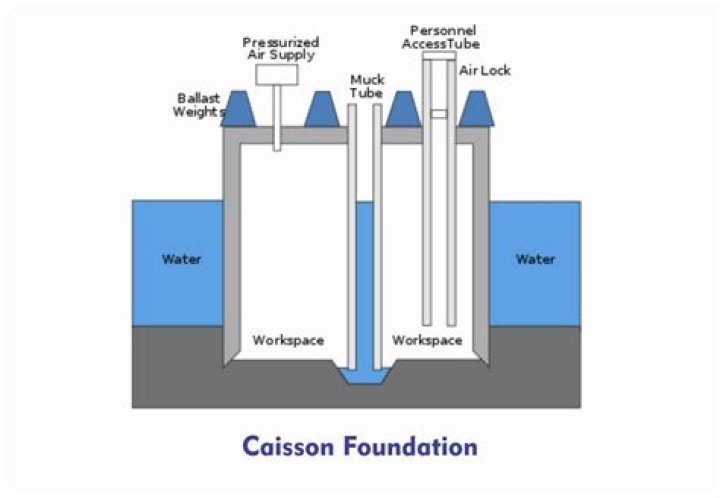

What is a caisson foundation?

A caisson foundation also called as pier foundation is a watertight retaining structure used as a bridge pier, in the construction of a concrete dam, or for the repair of ships. Caissons (also sometimes called “piers”) are created by auguring a deep hole into the ground, and then filling it with concrete.

.

Then, what is the difference between caisson and pier foundation?

Pier foundation is a type of deep foundation, which consists of a cylindrical column of large diameter to support and transfer large superimposed loads to firm strata below. Pier is inserted down to the bedrock. Caisson is putting a box into underwater and pouring it with concrete.

Also, where is caisson foundation used? Caisson is used in building bridge piers as it stays in water almost all the time. Caisson is constructed in connection with excavation for the foundation of piers and abutments in rivers and lake, bridges breakwater dock structures for the point of view of shore protection, lamp house etc.

Hereof, what is caisson in construction?

s?n/ or /ˈke?s?n/; borrowed from French caisson, from Italian cassone, meaning large box, an augmentative of cassa) is a watertight retaining structure used, for example, to work on the foundations of a bridge pier, for the construction of a concrete dam, or for the repair

What is a Cason?

Definition of caisson. 1a : a chest to hold ammunition. b : a usually 2-wheeled vehicle for artillery ammunition attachable to a horse-drawn limber also : a limber with its attached caisson. 2a : a watertight chamber used in construction work under water or as a foundation.

Related Question Answers

What are the types of foundation?

Following are different types of foundations used in construction:

• Shallow foundation. Individual footing or isolated footing. Combined footing. Strip foundation. Raft or mat foundation.
• Deep Foundation. Pile foundation. Drilled Shafts or caissons.

How many types of pile foundation are there?

There are two fundamental types of pile foundations (based on structural behaviour), each of which works in its own way. In end bearing piles, the bottom end of the pile rests on a layer of especially strong soil or rock.

Are caissons still used?

Cofferdams. Caissons are generally used as the means to complete new construction, and may act as a cofferdam of sorts while the construction is ongoing. Cofferdams however, are not part of the permanent structure, and are typically employed to perform repairs or maintenance on the structure.

What are the types of deep foundation?

Types of foundation Shallow foundations (sometimes called 'spread footings') include pads ('isolated footings'), strip footings and rafts. Deep foundations include piles, pile walls, diaphragm walls and caissons.

What is the purpose of a caisson?

A caisson is essential during construction for the purpose of providing stability to the structure. It helps to distribute the weight of structures evenly as the ground shifts under their weight. Depending on the type of caisson being constructed, the material used for building can vary from concrete to wood.

What is a floating foundation?

A floating foundation is a type of foundation constructed by excavating the soil in such a way that the weight of structure built on the soil is nearly equal to the total weight of the soil excavated from the ground including the weight water in the soil before the construction of structure.

How do you make a caisson?

It is a form of deep foundation which are constructed above ground level, then sunk to the required level by excavating or dredging material from within the caisson. Caissons (also sometimes called “piers”) are created by auguring a deep hole into the ground, and then filling it with concrete.

What is a floating caisson?

The floating caissons are prefabricated concrete box-like elements with cylinder cavities or cells that are built with the help of a special equipment named "Floating Docks." The floating caissons dimensions are customized to each project requirements within certain limits.

What is caisson or cofferdam work?

The main difference between the two is that a cofferdam is a temporary structure which is removed after completion of the work, whereas a caisson is built to remain in place as part of the completed structure. The type of structure being built will determine whether a caisson or a cofferdam is most suitable.

What is the main purpose of a cofferdam?

A cofferdam (also called a coffer) is an enclosure built within, or in pairs across, a body of water to allow the enclosed area to be pumped out. This pumping creates a dry work environment so that the work can be carried out safely.

What shape is a caisson?

Types of caissons. All caissons feature the shape of a tube, often with a cylindrical contour but it may also be rectangular, elliptical, or some other form. Some caissons are open at both ends, some are open only at the top, and some are open only at the bottom.

What is the difference between driven piles and bored piles?

What is the difference between driven pile and bored pile? Driven Piles: also called as displacement piles, they are commonly-used in building foundation which provide support for structures, transfering their load to layers of soil or rock that have sufficient bearing capacity and suitable settlement characteristics.

What is Grillage foundation?

Grillage Foundation is a type of foundation often used at the base of a column. It consists of one, two or more tiers of steel beams superimposed on a layer of concrete, adjacent tiers being placed at right angles to each other, while all tiers are encased in concrete.

What is cofferdam and its types?

Cofferdams usually fall into these categories: Cantilever Sheet Pile Cofferdam. Braced Cofferdam. Earth Embankment Cofferdam. Rock fill Cofferdam. Double Wall Cofferdam.

What is caisson drilling?

Caisson drilling is a specific style of creating structural foundations by which boreholes called caissons (sometimes called drilled piers because of their cylindrical shape) are drilled into the ground and then filled with concrete and reinforcing materials.

How do you pronounce caisson?

Here are 4 tips that should help you perfect your pronunciation of 'caisson':

1. Break 'caisson' down into sounds: [KAY] + [SUHN] - say it out loud and exaggerate the sounds until you can consistently produce them.
2. Record yourself saying 'caisson' in full sentences, then watch yourself and listen.

What is well Foundation and its type?

Well foundation is a type of deep foundation which is generally provided below the water level for bridges. Cassions or well have been in use for foundations of bridges and other structures since Roman and Mughal periods. The term 'cassion' is derived from the French word caisse which means box or chest.

How much do caissons cost?

Use $15,000 as a minimum charge, including 200 LF of reinforced concrete filled caissons and cost for moving the equipment on and off the job. Bell-bottom footings, concrete filled, for pre-drilled caissons.

What is compensated foundation?

A compensated foundation consists of replacing a volume of the ground below the foundations with an equivalent volume of expanded clay (which has a much lower density) thereby reducing the weight and partly or wholly compensating for the loads imposed by the new building.
