What does the VSS sensor do?

A wheel speed sensor or vehicle speed sensor (VSS) is a type of tachometer. It is a sender device used for reading the speed of a vehicle's wheel rotation. It usually consists of a toothed ring and pickup.

.

In respect to this, what happens when a speed sensor goes bad?

When there are symptoms of a bad transmission speed sensor, the powertrain control module cannot control the shifting of gears within the transmission properly. This may cause transmission revs higher before shifting gear or leading late transmission overdrive and inability to go into that top gear.

Subsequently, question is, how does a VSS sensor work? Basic Functionality of the VSS The top of the VSS senses the output of the transmission. Its opposite side is connected to a rotating magnet, which generates a voltage. This voltage is then transmitted to a computational device that calculates the speed proportional to the moving vehicle.

Accordingly, what are the symptoms of a bad speed sensor?

Here are the symptoms of a bad or failing transmission speed sensor

• Harsh or improper shifting. Without a valid speed signal from these sensors, the PCM will not be able to correctly control the shifting of gears within the transmission.
• Cruise control does not work.
• Check Engine Light comes on.

Can you drive a car with a bad speed sensor?

That is why in general, it is unsafe to drive a vehicle with a broken wheel speed sensor. If the wheel speed sensor becomes damaged or wears out, initially you probably won't notice much difference in the way your car performs if your ABS light comes on unless you are driving on slippery pavement.

Related Question Answers

Where is a speed sensor located?

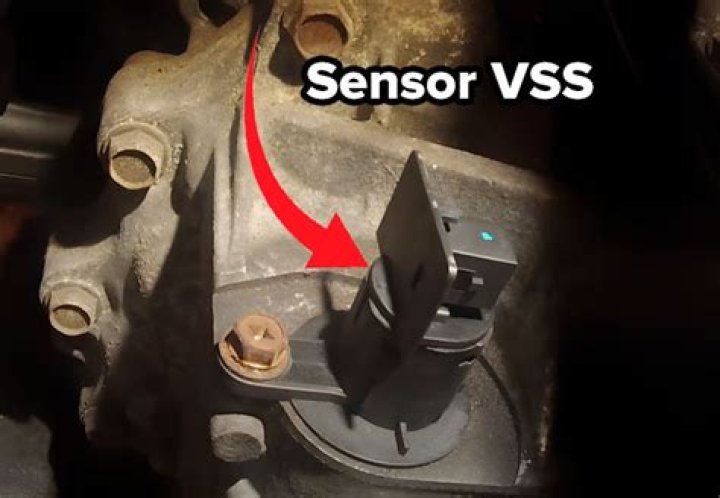

The Speedometer Vehicle Speed Sensor (VSS) is located in the transmission housing on the passenger side output flange. The Speedometer Vehicle Speed Sensor (VSS) is located in the transmission housing on the passenger side output flange.

How do you fix a speed sensor?

How to Repair a Vehicle Speed Sensor

1. Park the vehicle on a level surface. Engage the emergency brake and turn the engine off.
2. Place a vehicle jack on the left side and right side of the automobile.
3. Look straight up on the passenger side of the vehicle.
4. Unplug the electrical wire.
5. Align the replacement speed sensor into the transmission.

How do you test a speed sensor?

Vehicle Speed Sensor Testing

1. Turn the ignition switch to the OFF position.
2. Disengage the wiring harness connector from the VSS.
3. Using a Digital Volt-Ohmmeter (DVOM), measure the resistance (ohmmeter function) between the sensor terminals. If the resistance is 190–250 ohms, the sensor is okay.

How much does it cost to replace a speed sensor?

Depending on the vehicle year, make and model, a speed sensor can cost as little as $7.92 or as much as $100. For most vehicles, the cost for a speed sensor is between $25 and $45. Follow these procedures for replacing a faulty vehicle speed sensor (VSS).

Can a speed sensor cause shifting problems?

Difficult Shifting Even in a manual vehicle, a bad transmission speed sensor can cause gear shifting problems. Just moving the stick can be more difficult, and you may notice that the shaft feels rougher, or faster than usual when you shift.

Where is the transmission input speed sensor?

Note: The transmission speed sensor is located in the rear of a longitudinal mount transmission. For transaxles, the speed sensor is located on the long side of the output shaft. This would be the end of the transaxle that faces the front of the engine.

How do you clean a speed sensor?

How to Clean the Speed Sensor on a Vehicle

1. Prepare the area by gathering all materials and placing them within reach.
2. Lift up the front of the car, and place it on the jack stands.
3. Locate the sensor, and decide whether it is an open or disguised sensor.
4. Take the wrench, and unfasten the sensor.
5. Spray the rag with degreaser.

Can a sensor cause transmission problems?

Manifold Airflow Sensor If it fails it can cause automatic transmission problems such as late harsh shifts, early soft shifts, or can result in no shifting at all. The mass airflow sensor is directly related to engine performance, so an issue may affect the drivability of the vehicle and a poor running engine.

Does the speed sensor affect the odometer?

Primarily, the wheel speed sensors from the ABS system are used along with a vehicle speed sensor. Some cars also have a transmission output shaft speed sensor. This is important because the error that causes the speedometer not to work may not affect the mileage. In my experience, it usually does not.

How do you know if your transmission control module is bad?

Some of the most common signs of a bad transmission control module include: You have difficulty downshifting when you're slowing down, coming to a stop, or manually trying to downshift. Your transmission shifts to neutral or to another gear on its own.

How many speed sensors does a car have?

There are generally two speed sensors that work in conjunction to provide accurate transmission data to the vehicle's powertrain control module.

Which speed sensor controls speedometer?

A vehicle speed sensor (VSS), also known as an output speed sensor (OSS), is what tells your vehicle's control unit how fast the vehicle is going. Your vehicle's speedometer and odometer rely on the information from this sensor.

What type of sensor is a VSS?

A wheel speed sensor or vehicle speed sensor (VSS) is a type of tachometer. It is a sender device used for reading the speed of a vehicle's wheel rotation. It usually consists of a toothed ring and pickup.

How do you test a speed sensor with a multimeter?

Part 2 of 3: Connecting the Multimeter

1. Plug the colored lead cables into their slots on the multimeter. Your multimeter will have a red and a black lead cable.
2. Set the multimeter to AC to test your VSS.
3. Plug a signal output and ground wire into the sensor.
4. Connect the black lead and the red lead to wires on the plug.

How do sensors work?

Basically there are two types of sensors: active and passive. The sensor working principle in each of these devices varies to a certain extent. These sensors use ultrasonic sound waves to track any movement in the specified range. The detectors emit ultrasonic sound waves and wait for the energy to be reflected back.

What is the difference between engine speed sensor and vehicle speed sensor?

What is the difference between a vehicle speed sensor and a transmission speed sensor? the different names suggests that one is used to calculate the vehicles speed, and the other is used to help control the gearbox and ensure it is in the correct gear.

How is car speed calculated?

When the engine turns over, the driveshaft turns to make the wheels spin round. The speedometer cable, powered by the driveshaft, turns as well. The cable spins a magnet around at the same speed inside the speed cup. As the speed cup turns, it turns the pointer up the dial, indicating the car's speed.

What is engine speed sensor?

Being attached to the crankshaft of the vehicle's engine, the engine speed sensor is meant to assess the speed at which the crankshaft spins. The device is basically a metal disk that has a serrated (toothed) circumference. When the crankshaft spins, induction current is set up around the magnetic coil.

What is a VSS buffer?

The VSS buffer module processes inputs from the vehicle speed sensor and outputs various signals. The VSS buffer module outputs a 40 pulse per revolution signal. This 40 PPR signal is used by the control module to determine transmission output speed.
