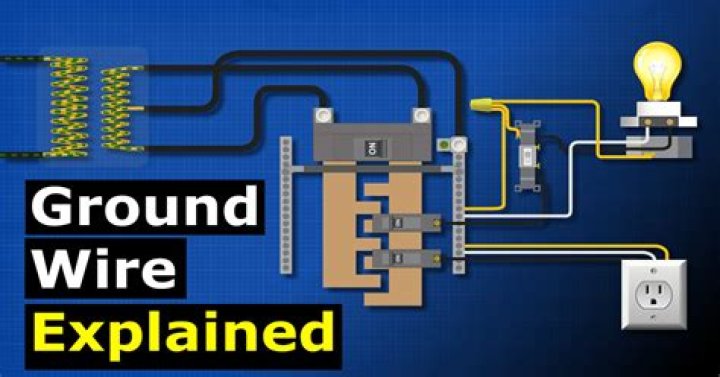

What does the ground wire do?

The Ground Wire Attached to the case of an appliance, it holds the voltage of the case at ground potential (usually taken as the zero of voltage). This protects against electric shock. The ground wire and a fuse or breaker are the standard safety devices used with standard electric circuits.

.

Similarly, what is the purpose of grounding?

Grounding is required to provide least resistance path to high voltage surges (fault current) incurred in electrical system due to short circuit/lightning. To protect the electrical equipment from getting damaged under the fault condition.

Also, can a ground wire shock you? No, touching the ground wire will not shock you unless it is not properly bonded AND there is a faulty piece of equipment attached to it. This! Remember that voltage is relative. The point of grounding is that every conductive surface shall be kept at the same potential via the ground wiring.

Correspondingly, how does a ground wire work?

A grounding wire takes the electricity that has built up during the malfunction and sends it outside of your home back into the ground. The grounding wire is typically connected to either a metal internal structure within the appliance, or on the external housing.

What do you do if the ground wire has no ground?

If the box is not grounded, you have two choices:

1. Run a ground to the box. This would mean running a new wire back to the panel (could be bare copper, but if you're doing the work may be better just to run a new wire - 14/3 would be the best), which could mean opening up drywall.
2. Wire the fan without ground.

Related Question Answers

What happens if you don't connect the ground wire?

The appliance will operate normally without the ground wire because it is not a part of the conducting path which supplies electricity to the appliance. In the absence of the ground wire, shock hazard conditions will often not cause the breaker to trip unless the circuit has a ground fault interrupter in it.

Is Ground positive or negative?

Usually in electronics, ground is just a name we give to a certain point in the circuit. In a circuit with one battery (with a positive and a negative terminal), we usually refer to the negative terminal as ground.

What happens if a house is not grounded?

If there is no ground connection or a poor ground connection in the house, electricity could travel through your body to the ground. In this case you would end up becoming the ground connection – a condition that can lead to serious injury or also death.

Do I need to ground a light switch?

If you are replacing a switch a ground is not required, as per the above exception. However, if you're installing a switch; replacement or otherwise, into a metal box that is grounded. The switch will be ground via the devices yoke and mounting screws. So if the metal box is grounded, the switch is also grounded.

What does it mean to ground something?

Grounding is the process of removing the excess charge on an object by means of the transfer of electrons between it and another object of substantial size. When a charged object is grounded, the excess charge is balanced by the transfer of electrons between the charged object and a ground.

Why is the ground positively charged?

The negative charges in the bottom of the cloud have such a high concentration that they force the electrons on the Earth's surface deep into the ground. Thus, the ground has a strong positive charge and the cloud has a strong negative charge.

Should Signal ground be connected to chassis ground?

Signal ground is used as a the reference point for internal electronics, chassis ground is, well basically, all connections to the chassis (which in a 3-prong line cords is connected to the mains ground plug). Signal ground should, at one point, be connected to chassis ground.

Can you touch the ground wire?

Generally and ideally speaking, yes, touching the ground pin of a plug is as safe as touching the metal shell of whatever has that ground pin. Also, if there is a failure in the device itself that is causing a short between hot and ground, you will get a shock that can kill you before the breaker trips.

Is a grounding wire necessary?

One of the reasons why grounding helps to keep you safe is because the earth is such a great conductor, and because excess electricity will always take the path of least resistance. By grounding your electrical system, you are giving it somewhere to go other than into you – possibly saving your life.

What does a ground wire look like?

The white wire is the "neutral" wire, which takes any unused electricity and current and sends them back to the breaker panel. The plain (or it can sometimes be green) wire is the "ground" wire, which will take electricity back to the breaker panel, then outside to a rod that's buried in the ground.

What causes a ground fault?

Simply put, a ground fault occurs when electricity travels through ground, instead of the intended path back to its source. More than 80% of electrical failures in equipment are ground faults caused by worn insulation, conductive dust or moisture. Deteriorated insulation on wires and cables cause 90% of these events.

Does a GFCI work without a ground?

A GFCI does not need a ground wire in order to trip properly. A GFCI simply trips when a fault is detected on the neutral wire. An ungrounded outlet will not trip using your tester.

Does 240v need a ground?

240v circuits use two hots and a ground. There is no neutral. If the appliance (like a dryer) uses 120v for a light and blower motor, there are two hots, a neutral (for the 120v needs) and a ground.

What happens when a circuit is grounded?

With a grounded circuit, only one wire becomes hot and the other wire is grounded. Touching the hot wire still exposes a person to the full circuit voltage. In a grounded circuit, we often refer to the electricity traveling from the source to the load on the hot wire and returning to the source on the grounded wire.

Why do I have voltage between neutral and ground?

Neutral to ground voltage exists because of the IR drop of the current traveling through the neutral back to the Neutral to ground bond. Zero Reading: A certain amount of Neutral to ground voltage is normal in a loaded circuit. If the reading is stable at close to 0V.

Should the ground wire be hot?

The hot-to-ground reading should be higher than the hot-to-neutral reading. On the receptacle end of the ground path, which is where you're making your measurements, the ground isn't connected to any voltage source. So the ground wire is like a long test lead back to the source voltage.

What happens if the ground wire is disconnected?

The system becomes less safe, but still operates. What would happen if you disconnected the ground wire to your home electrical system? Ordinarily, with a grounded system, that will cause circuit interruption because current will flow directly back to the panelboard thereby tripping the circuit breaker.

How do you fix a ground fault?

Disconnect the load side of the GFCI and at all downstream junctions. Then check for neutral/ground continuity on each segment of the wiring. Once you locate the segment that shows continuity, search for a short location inside the junction box, and failing that, replace that part of the circuit.

What happens if I don't ground a light switch?

Going without a ground wire When you screw the light switch in, it will make contact with the box, and as long as the box is grounded, it will pick up ground that way. If the box isn't grounded, the switch will still work.
