Welding Current The first two digits of a 4-digit number and the first three digits of a 5-digit number stand for tensile strength. For example, E6010 means 60,000 pounds per square inch (PSI) tensile strength and E10018 means 100,000 psi tensile strength. The next to last digit indicates position..
Then, what do the numbers on MIG wire mean?
However, where you see 70, there's a difference from wire code. Only the first digit is used to indicate tensile strength, multiplied by 10,000 (instead of 1,000 in the case of a MIG). The second number indicates the welding position. A zero designation means the wire is only good for horizontal or flat welding.
Likewise, what does the numbers on a 7018 welding rod mean? 7018 electrode is referred as “low-hydrogen” which means “hydrogen embrittlement” is reduced in the weldment. It's mostly the coating or “flux” where the magic happens. The fourth number identifies the coating of the rod. A 5, 6, or 8 means low-hydrogen.
Additionally, what do the numbers mean on a 6011 welding rod?
The first two digits represent the resulting weld's minimum tensile strength, measured in pounds per square inch (psi). For example, the number 70 in a E7018 electrode indicates that the electrode will produce a weld bead with a minimum tensile strength of 70,000 psi.
What size wire should I use in my MIG welder?
According to charts for thicker material you should use . 035 but most welding shops say . 030 works great on most applications with the millermatic machines. I own a MM211 welding between 1/8- 1/4 material using C02.
Related Question Answers
What does the T stand for in e71t 1?
7.6.0.3 As an example, the designation E71T-1 indicates an electrode (E) that will pro- duce weld metal of a minimum 72,000 psi ultimate tensile strength (7), may be used for welding in all positions (1), is a flux cored electrode (T), is a multipass gas shielded type for operation on direct current, reverse polarity (What does e71t 11 mean?
Description: E71T-11 is a self-shielding flux cored wire designed for single or multi pass welding while having a spray type transfer commonly used for carbon/mild steels less than ¾” thick. This all position wire can be used in the field where shielding gases are not practical.Can you weld flux core without shielding gas?
Self-shielding flux-cored wire does not require external shielding gas because the weld pool is protected by gas generated when flux from the wire is burned. As a result, self-shielding flux-cored wire is more portable because it does not require an external gas tank.What does ER308LSi mean?
ER308LSi is a stainless steel solid wire. From left to right: E = electrode; this means that it is capable of being a carrier of electricity. R = rod; this means that it does not have to be an electrode to be used as weld metal.What is MIG wire made of?
MIG Welding carbon steel or mild steels are typically welded with a ER70s-6" electrode using either 100% Carbon Dioxide gas or C25 gas that is 25% Carbon Dioxide and 75% Argon mixture. If you are welding a higher grade of carbon steel the minimum tensile strength is what usually changes.Why is MIG welding wire copper coated?
The wire is copper plated and/or otherwise coated to retard oxidation or rusting of the wire, to decrease contact tip wear, and to assure good electrical conductivity. If copper coated, the layer of copper must be kept to a low level to minimize copper welding fumes and flaking.What is the difference between 6013 and 7018?
the main difference is that e 7018 is a serious rod used in structural code work. e6013 is considered a farmer general purpose rod that is easy to use. e6013 are not used on any serious construction project.Why does my welding rod keep sticking?
If the rod gets too close to the base metal it will decrease the voltage causing the arc to go out. about the benefits of proper storage! Sticking the welding rod is where the rod instead of melting like it should, sticks to the base metal. There is not enough current to melt it, but enough for it to stick.How many amps does it take to weld a 1/4 inch steel?
180 amps
What amp do I need to weld with a 7018 Rod?
Amperage Rule In general, the 7018 rod is used with currents up to 225 amps. A rule of thumb is to use 30 amps of current per 1/32 inch of rod diameter. That would mean using 90 amps of current on a rod that is 3/32-inch in diameter.What does e7018 mean?
The E7018 is a versatile welding rod, frequently used for low and medium carbon steel welding. Also referred to as a “low-hydrogen” rod, this electrode has a flux coating with a very low hydrogen content, allowing a minimal amount of hydrogen into the weld puddle.What is the difference between 6011 and 6013?
The 6013 electrode is best used for light to medium penetration on a thin metal, or sheet metal. The 6011 electrode offers more penetration than the 6013 so you can weld a slightly thicker material.How do you stick weld up and down?
When weaving vertically up with a 7018 electrode, zigzag back and forth, and allow each puddle section to freeze in place in time to weld up to the next stair step. Hold the electrode slightly uphill, and keep a short arc to gain better penetration and fusion. During a weave, focus on welding the sides of the joint.What is the best all around welding rod?
The best all-around welding rod would be the 6011, especially for the DIY'er and hobbyist. With 3/32 and 1/8 size rods on hand, the 6011 will get the majority of your jobs done. It is a fast-fill freeze rod, runs on both ac/dc and handles dirty contaminated jobs better than other electrodes.What do the 4 numbers mean on a welding rod?

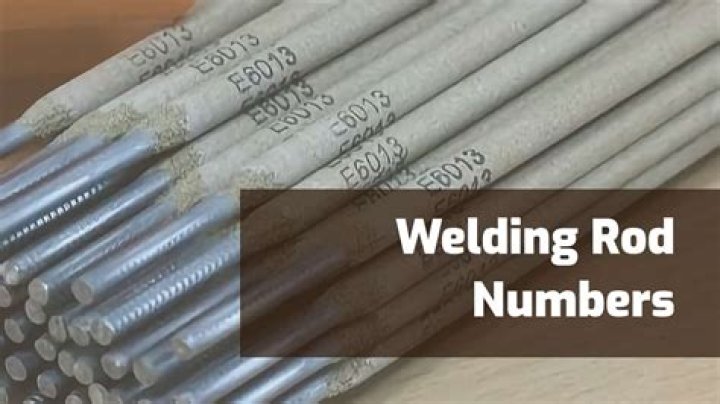

The first two digits of a 4-digit number and the first three digits of a 5-digit number stand for tensile strength. The next to last digit indicates position. So, “1” stands for an all position electrode, “2” for a flat and horizontal electrode, and “4” for a flat, horizontal, vertical down and overhead electrode.What does the 18 in 7018 mean?
Welding electrode E7018 is a term that describes the electrode's tensile strength, welding position, flux coating and current.What does the 2 stand for in e7024?
The AWS classification of SMAW electrode, E7024 what does the "2" stand for? Flat/Horizontal Position.What does e7014 mean?
7014 Carbon Steel Coated Electrode. Page 1. ALLOY DESCRIPTION AND APPLICATION; E7014 is an iron powder, rutile type electrode designed to operate at higher speeds with greater deposition efficiency than E6012 or E6013 electrodes.What is 6013 welding rod used for?
Uses and Applications of 6013 Rod The E6013 is designed for medium to light penetration welding. It is used for welding carbon steel and is also used for welding any type of polarity.
