What Colour are electrical wires in Australia?

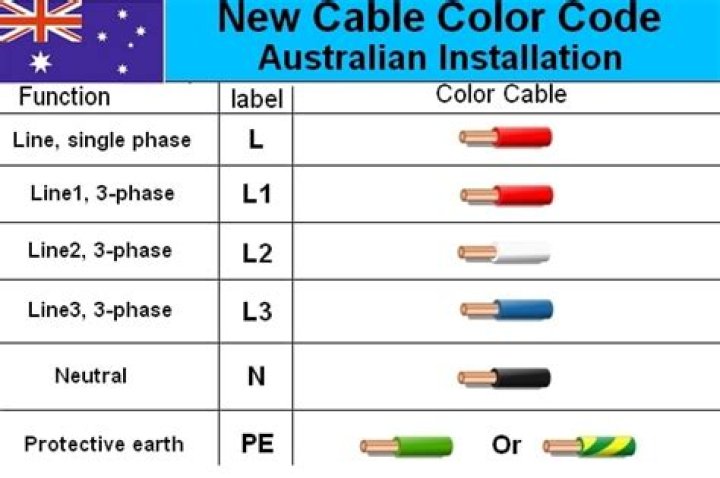

In Australia, electricity is supplied at 240V and 50Hz. The Active wire (high potential) is coloured brown (used to be red). The Neutral wire (low potential) is coloured blue (used to be black). The Earth wire is striped green and yellow (used to be only green).

.

Similarly, it is asked, what Colour are electrical wires?

The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.

One may also ask, what Colour are 3 phase wires? Phase 3 - Phase 3 wiring should be blue. Neutral - Neutral wiring should be white. Ground - Ground wiring can be green or green with a yellow stripe.

Regarding this, what is the white wire in electrical wiring in Australia?

And for modern wiring: The active wire (high potential) is coloured brown (used to be red). The neutral wire (low potential) is coloured blue (used to be black). The earth wire is striped green and yellow (used to be only green).

Which is the live wire red or black?

You can clearly see that red is connected to the new brown (live), black is connected to the new blue (neutral) and the green and yellow earth stays the same.

Related Question Answers

Can you put red and yellow wires together?

Check your fuses in the car. specifically teh radio fuse then accesory fuses. Yellow shoudl be hot all the time, red should trigger on when the ignition is on. I would not wire the yellow and red together, it is a given you'll leave the h.u. on and drain your battery.

Is white wire positive or negative?

Recognize that the black wire is the positive one, the white wire is the negative one, and the green wire is the ground.

Can I connect red and black wires together?

Red Electrical Wires In 220-volt circuits, red wires are the secondary live wires. Like black wires, they can also be used in some types of switch legs. It's possible to link two red wires together or a red wire to a black wire.

Is Blue active or brown?

The Active wire (high potential) is coloured brown (used to be red). The Neutral wire (low potential) is coloured blue (used to be black). The Earth wire is striped green and yellow (used to be only green).

What do wire colors mean?

The simple explanation is that every color used for electrical wiring has a specific meaning, with different colors indicating different circuit types and purposes. NEC imposes the following electrical wiring color standards: Ground wires: green, green with a yellow stripe, or bare copper. Neutral wires: white or gray.

What is red wire used for?

Red electrical wire indicates the secondary live wires in a 220-volt circuit, used in some types of switch legs and in the interconnection between smoke detectors that are hard-wired into the power system. You can connect a red wire to another red wire or to a black wire.

What happens if you wire a light switch wrong?

If either wire at the light fixture is still hot then the switch is wired incorrectly. If one of the wires is still hot at the light fixture with the switch in the off position, then you most likely have the light switch on the neutral wire. Separate the bare ends of the wires so you can safely turn the power back on.

Is red wire live or neutral Australia?

In Australia, electricity is supplied at 240V and 50Hz. The Active wire (high potential) is coloured brown (used to be red). The Neutral wire (low potential) is coloured blue (used to be black). The Earth wire is striped green and yellow (used to be only green).

What are the old wiring Colours?

The Old System

• Red – live.
• Black – neutral.
• Green/yellow – earth (sometimes bare wire without a sleeve)
• Brown – live.
• Blue – neutral.
• Green/Yellow – earth.

What happens if line and neutral are reversed?

This happens when the hot and neutral wires get flipped around at an outlet, or upstream from an outlet. Reversed polarity creates a potential shock hazard, but it's usually an easy repair. This wire is commonly referred to as the neutral wire, and it should always be white.

Can live and neutral be reversed?

As per the standard ON/OFF (also the fuse) switch should be connected in live line. In the switch OFF position the entire appliance will have 220V, touching any part will give you deadly shock. As per the rules, if live and neutral are reversed, Electricity board will not give power to your house.

How do you wire an extension cord in Australia?

How to Wire Electrical Plugs In Australia

1. Unscrew the three screws on the back of the plug.
2. Strip 2 inches of plastic sheath from the wire.
3. Insert the wires into the corresponding contact points.
4. Unscrew one screw from the main cable holder and remove the screw completely.

What color is AC wire?

Y wire (yellow, for air conditioning). W wire (white, for heat). C wire (blue or black, common for 24-volt power to the thermostat).

How can you tell which wire is positive?

If the multi-colored wire is black and red, the black wire is the negative wire, while the red one is positive. If both wires are black but one has a white stripe, the striped wire is negative, while the plain black wire is positive.

Why is white wire hot?

Hot: The black wire is the hot wire, which provides a 120 VAC current source. Neutral: The white wire is called the neutral wire. It provides the return path for the current provided by the hot wire. The neutral wire forms a part of the live circuit along with the hot wire.

Which Colour is neutral?

The protective ground is green or green with yellow stripe. The neutral is white, the hot (live or active) single phase wires are black , and red in the case of a second active. Three-phase lines are red, black, and blue.

Which wire is hot when both are same color?

In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color. In this case, the neutral wire is always identified by some means. In some cases, there will be small writing on the wiring case.

What size wire can you re identify?

In sizes larger than #6 you can re-identify a conductor as a grounded conductor, other than a green one, typically with a band of white tape at both ends. You cannot use green or green with yellow stripes for anything other than an EGC (i.e.-they cannot be re-identified).

Is a red wire positive or negative?

Supply wires for small voltage DC often use red for positive, black for ground and blue for negative. For power installations, other systems are in use and must be adhered to. In electronics, red is usually positive power, black is ground, and the rest can be anything.
