What color is the ground wire on a 3 prong plug?

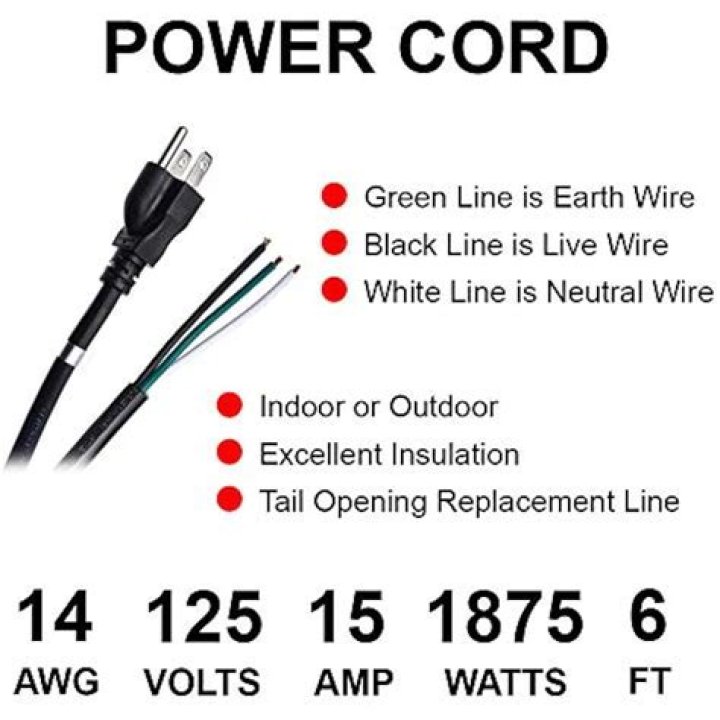

When an appliance or tool requires a three-prong grounded plug, connect the grounding wire (green) under the green terminal screw on the grounding prong; attach the black wire (hot) under the brass terminal screw and the white wire (neutral) under the silver terminal screw.

.

Keeping this in view, which is the hot wire on a 3 prong plug?

The color code is standard in electrical wiring. The black wire is the hot wire. It becomes energized as soon as you insert the plug into a working receptacle. The white wire is known as the neutral or return wire.

Likewise, how do you wire a 3 prong plug? For a 3-Prong Cord Loosen or remove the screw on the neutral (center) terminal and attach the center cord wire to the terminal, using the screw. Attach the left cord wire to the left hot terminal, and attach the right cord wire to the right hot terminal. The hot terminals and cord wires are interchangeable.

In this manner, what color is the ground wire?

Green

What Colour is the live wire in a 3 pin plug?

brown

Related Question Answers

Which wire is hot if both are black?

know what each color of wire does in the circuit The black wire is the "hot" wire, which carries the electricity from the breaker panel into the switch or light source. The white wire is the "neutral" wire, which takes any unused electricity and current and sends them back to the breaker panel.

Can I remove the third prong on a plug?

The national electrical code (NEC) calls for outlets that have a third connection for grounded plugs. If you remove the third prong the item you are using will not have the safety ground. Using three prong devices on a two prong outlet is dangerous. The third prong is a ground, to protect you in case of a fault.

Can I use 3 prong outlet without ground?

3-prong outlets without ground are legal if they are GFCI protected, with "GFCI protected" and "No equipment ground" stickers.

Can you replace a 2 prong plug with a 3 prong plug?

Yes, you can replace a two prong plug with a 3 prong plug, just don't connect the third prong (ground) to anything. This isn't true going the other way: never replace a three prong plug with a two prong plug.

Is the big prong positive or negative?

The smaller prong is hot and the larger one is neutral. And yes, current is changing direction (swinging from positive to negative) 60 times per second (a sine wave), and it cannot do that on only one wire, it needs the neutral line to complete the circuit.

How do you wire a 3 prong plug to a 4 wire plug?

Connect the New 4-Prong Cord

1. Connect the green cord wire to the ground screw.
2. Connect the white cord wire to the center neutral terminal.
3. Connect the black cord wire to either the left or right terminal, next to the center neutral.
4. Connect the red cord wire to the other hot terminal.

Is the ground wire red or black?

The white wire is always neutral, and when the cable has only two conductors, as most 120-volt cables do, the hot wire is black. The ground wire is usually left bare, but in some cases, the ground wire color is green. In a three-conductor cable, the extra wire is red, and it's almost always used as a hot wire.

Does ground wire have to be green?

The grounding wire does not carry electricity under normal circuit operations. The grounding wire is required by the National Electrical Code to be a bare wire, or if insulated, a green or green with yellow colored insulation.

Which is live red or black?

Additions to the old cables mean that some installations will have mixed colours within them. A mixed installation is shown below. You can clearly see that red is connected to the new brown (live), black is connected to the new blue (neutral) and the green and yellow earth stays the same.

What wire colors mean?

Yes, electrical wire colors do matter

• Green, green with a yellow stripe, or bare copper. These are ground wires that keep you, your appliances, and your home safe from electrical fires.
• Black. Black indicates a hot or live wire that's carrying a current and is used for power in all circuits.
• Red.
• Blue & Yellow.
• White or Gray.

What is common wire?

A common wire is a more general term and simply refers to the 0 Volt wire of a circuit, either electrical or electronic.

Is the ground wire positive or negative?

If you connect the negative terminal to the ground, the positive terminal is now at a potential of 1.5 volts. If you connect the positive terminal to the ground, the negative terminal is now at a potential of -1.5 volts. But in case of a battery, you directly connect it to the load. So, there is no concept of ground.

What is the purpose of a ground wire?

The purpose of the ground wire (in U.S. terminology) is to provide a path back to the source of the electrical current — the main electrical panel — in the event of a fault. Hopefully this current is enough to trip the breaker or blow the fuse.

Can I connect red and black wires together?

Red Electrical Wires In 220-volt circuits, red wires are the secondary live wires. Like black wires, they can also be used in some types of switch legs. It's possible to link two red wires together or a red wire to a black wire.

Is it safe to use a 2 prong to 3 prong adapter?

2-3 prong adapters can be safe if grounded and used properly, however, they might not provide the best function. If you own a home with all 2-prong outlets it is not likely you will move the adapters around uninstalling and reinstalling them as you need to plug things in and out of your outlets.

Why are there 3 wires in a plug?

The 3-pin plugs are designed so that electricity can be supplied to electrical appliances safely. Each wire has its own specified color, as shown above and each pin must be correctly connected to the three wires in the electrical cable. This type plug is commonly used for heavy appliances such as the air-conditioners.

How do you wire a 3 prong plug with 2 wires?

An appliance with only two wires will be double- insulated not requiring an earth wire. Connect the two wires to the live and neutral prongs of the 3-prong plug. If the wires are color-coded, make sure to connect live to live terminal and neutral to the neutral terminal.

Which wire goes to the wide prong?

The wide prong on the plug links the threaded base of light bulbs to the neutral terminal (the wider slot) in the receptacle. The hot side of the outlet (the side that can deliver a shock) is wired to the threaded socket if the wires are reversed.

Which wire goes to which prong?

Wiring a 3 Prong Plug The white wire is connected to the silver or light colored screw, the green wire is connected to the green screw and the black wire is connected to the gold or dark colored screw.
