What color is a 1 ohm resistor?
brown
.
Considering this, how do I know if I have a 1k ohm resistor?
Coding a 1k Ohm Resistor
- Step 1: Identify the first and second significant figures. For the number 1,000, the first significant figure is ''1'', and ''0'' is the second significant figure.
- Step 2: Count the number of zeros after the first two significant figures.
- Step 3: Code the numbers with colors.
One may also ask, what color is a 47 ohm resistor? 47 ohm 1/4 watt carbon film resistor (CFR) with ±5% tolerance. Color Code: Yellow, Violet, Black, Golden.
Likewise, what color is a 2 ohm resistor?

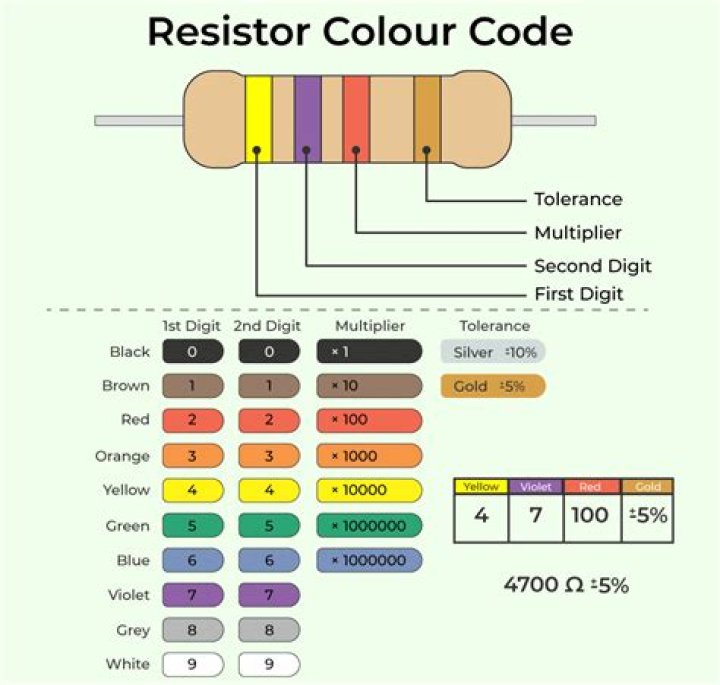

The Resistor Colour Code Table
| Colour | Digit | Tolerance |
|---|---|---|
| Red | 2 | ± 2% |
| Orange | 3 | |
| Yellow | 4 | |
| Green | 5 | ± 0.5% |
What color is a 3.3 K resistor?
3k3 / 3.3k ohm Resistor Colour Code
| Value | 3.3 kΩ / 3300 Ω |
|---|---|
| Type | 4 Band Colour Code |
| Colour Code | Orange, Orange, Red, Gold |
| Multiplier | Red, 100 |
| Tolerance | Gold Band ±5% |
What color is a 250 ohm resistor?
For example, a resistor with a color band pattern of red, green, yellow, gold yields the first digit as 2, the second digit as 5, and a multiplier of 10,000. This produces a resistance value of 25 * 10,000 = 250 kΩ with a ± 5% tolerance.What color is a 150 ohm resistor?
150R / 150 ohm Resistor Colour Code| Value | 150 Ω |
|---|---|
| Type | 4 Band Colour Code System |
| Colour Code | Brown, Green, Brown, Gold |
| Multiplier | Brown, 10 |
| Tolerance | Gold Band ±5% |
What color is a 6.8 K resistor?
6k8 / 6.8k ohm Resistor Colour Code| Value | 6.8 kΩ / 6800 Ω |
|---|---|
| Type | 4 Band Colour Code |
| Colour Code | Blue, Grey, Red, Gold |
| Multiplier | Red, 100 |
| Tolerance | Gold Band ±5% |
What is the color code for 100k resistor?
100k / 100k ohm Resistor Colour Code| Value | 100 kΩ |
|---|---|
| Type | 4 Band Colour Code System |
| Colour Code | Brown, Black, Yellow, Gold |
| Multiplier | Yellow, 10000 |
| Tolerance | Gold Band ±5% |
What color is a 330 ohm resistor?
330R / 330 ohm Resistor Colour Code| Value | 330 Ω |
|---|---|
| Type | 4 Band Colour Code System |
| Colour Code | Orange, Orange, Brown, Gold |
| Multiplier | Brown, 10 |
| Tolerance | Gold Band ±5% |
What color is a 470 ohm resistor?
Yellow-Violet-Brown = 4-7-0 = 470 Ω.What is a 1k resistor used for?
The 1k resistor is a pull-down resistor. Not the weakest one of that, but that's okay. It is meant to pull the base of the transistor to a known state (ground) when the control signal is missing/open/high input.What is the symbol for a resistor?
The Ohm is often represented by the omega symbol: Ω. The symbol for resistance is a zigzag line as shown below. The letter "R" is used in equations.How do I choose a resistor for an LED?
How to Calculate Resistor Value for LED Lighting- Determine the voltage and current needed for your LED.
- We'll use the following formula to determine the resistor value: Resistor = (Battery Voltage – LED voltage) / desired LED current.
- For a typical white LED that requires 10mA, powered by 12V the values are: (12-3.4)/.
What resistor do I need for LED?
Basics: Picking Resistors for LEDs| Power Supply Voltage | LED Color | Resistor (rounded) |
|---|---|---|
| 5 V | Red, Yellow, or Yellow-Green | 150 Ω |
| 5 V | Red, Yellow, or Yellow-Green | 56 Ω |
| 9 V | Red, Yellow, or Yellow-Green | 75 Ω |
| 9 V | Blue, Green, White, or UV | 100 Ω |
How do you know if a resistor is burnt?
Method 1- Scarp the outer coating.
- Clean the burnt section of the resistor.
- Measure resistance from one end of the resistor to the damaged section.
- Again measure the resistance from damaged section to the other end of the resistor.
- Add these two value f resistances.
- This is the approximate value of burnt resistor.
How do you check resistors with a multimeter?
Pick out a random resistor and set the multimeter to the 20kΩ setting. Then hold the probes against the resistor legs with the same amount of pressure you when pressing a key on a keyboard. The meter will read one of three things, 0.00, 1, or the actual resistor value.How do you remember resistor colors?
Here's one mnemonic "Bright Boys Rave Over Young Girls But Veto Getting Wed. Black, Brown, Red, Orange, Yellow, Green, Blue, Violet, Grey, White <=> 0, 1, 2, 3, 4, 5, 6, 7, 8, 9. Best method to memorize is - B.B. Roy of Great Britain Veto getting wed.What color is a 220 ohm resistor?
Colour code for a 220 Ohm reistance with±5% tolerance. Therefore the colour code is Red Red Brown and fourth band Golden.What color is a 4.7 K resistor?
The 4.7kΩ resistor shown here has color bands of yellow and violet to begin - which have digit values of 4 and 7 (47). The third band of the 4.7kΩ is red, which indicates that the 47 should be multiplied by 102 (or 100).What color is a 50 ohm resistor?
Resistor Band Colors| Color | Value |
|---|---|
| Black | N/A |
| Brown | 100 ppm/ºC |
| Red | 50 ppm/ºC |
| Orange | 15 ppm/ºC |
What are the colors of resistors?
Standard Resistor Values and Color Components and wires are coded with colors to identify their value and function. The colors brown, red, green, blue, and violet are used as tolerance codes on 5-band resistors only. All 5-band resistors use a colored tolerance band.Do resistors have polarity?
Resistors don't have polarities. The + and - signs refer to the voltage drop across them in the circuit. If you turn a resistor around they don't move. The polarity of the assumed potential across any element is important in circuit analysis.What is the color code for the 3.9 Kω 10% resistor?
3k9 / 3.9k ohm Resistor Colour Code| Value | 3.9 kΩ / 3900 Ω |
|---|---|
| Type | 4 Band Colour Code |
| Colour Code | Orange, White, Red, Gold |
| Multiplier | Red, 100 |
| Tolerance | Gold Band ±5% |
