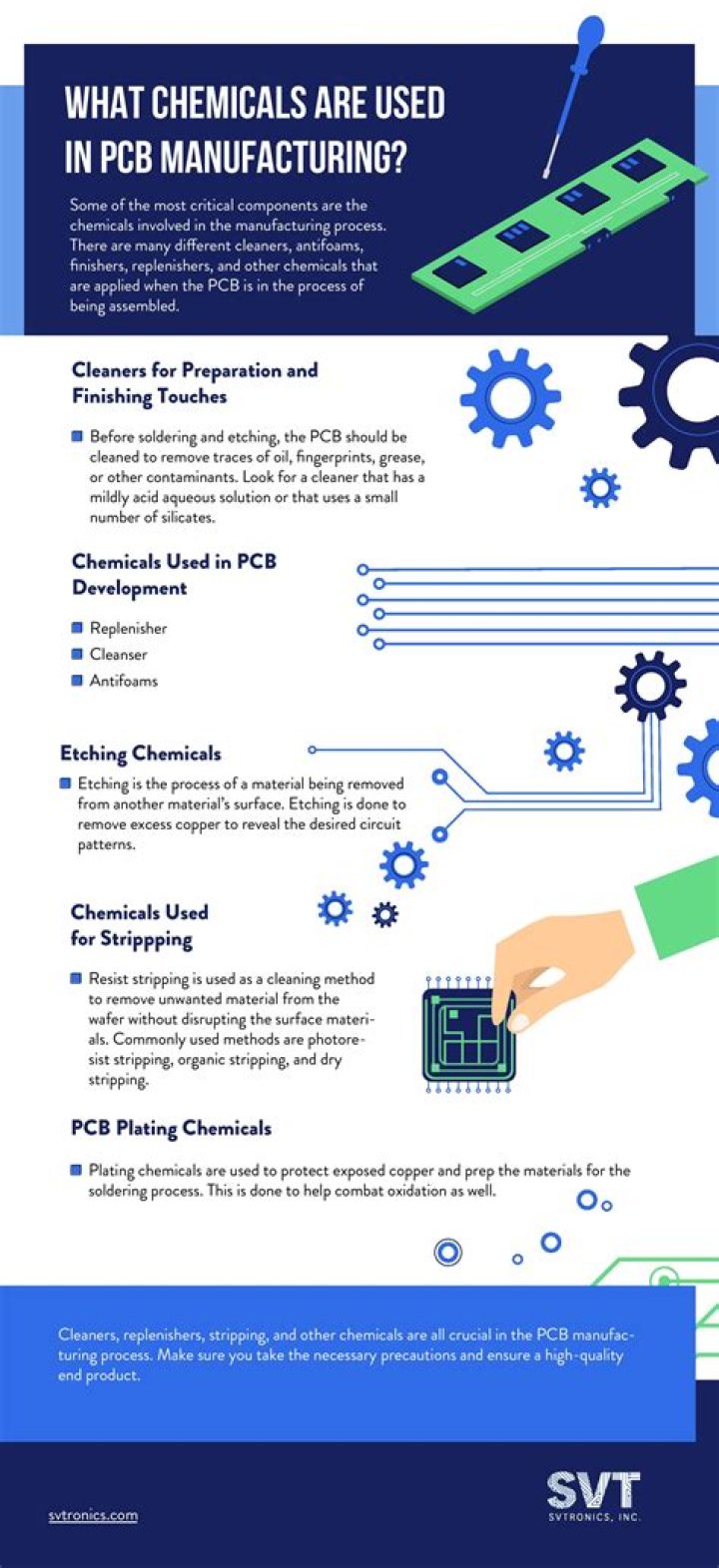

What chemicals are used in PCB manufacturing?

Currently used for print circuit board etching of solvents are iron (Ferric Chloride), cupric chloride (Cupric Chloride), alkaline ammonia (Alkaline Ammonia), sulfuric acid hydrogen peroxide (Sulfuric Acid + Hydrogen Peroxide) etching fluid, ammonium persulfate, sulfuric acid – chromic acid etching solution.

.

Also asked, what is a PCB made of?

PCB is generally made from four layers of material which are bonded together by heat, pressure and other methods. Four layers of a PCB are made of the substrate, copper, solder mask, and silkscreen. The substrate is generally made of fiberglass which is also known as FR4.

Similarly, which liquid is used for PCB design? Ferric Chloride

Beside this, what is PCB manufacturing process?

The steps of the PCB manufacturing process are as follows:

1. Step One: Designing the PCB.
2. Step Two: Printing the PCB Design.
3. Step Three: Printing the Copper for the Interior Layers.
4. Step Four: Getting Rid of the Unneeded Copper.
5. Step Five: Inspection and Layer Alignment.
6. Step Six: Laminating the PCB Layers.
7. Step Seven: Drilling.

What is PCB and its types?

There are several overall types of PCB boards each with their own particular manufacturing specifications, material types and usages: Single-layer PCBs, Double-layer PCBs, Multi-layer PCBs, Rigid PCBs, Flexible PCBs, Rigid-Flex PCBs, High-frequency PCBs, Aluminum-backed PCBs.

Related Question Answers

What are the advantages of PCB?

Some advantages offered by these PCBs are: These PCBs help save a lot of space, along with reducing the overall board weight. Flexible PCBs helps in decreasing the board size, which makes it ideal for various applications where high signal trace density is needed.

How many types of PCBs are there?

Different Types of Printed Circuit Boards

• Single-Sided PCBs.
• Double-Sided PCBs.
• Multilayer PCBs.
• Rigid PCBs.
• Flex PCBs.
• Rigid-Flex PCBs.

Why are PCB green?

A 'green' printed circuit board is not actually green all the way through. This is a hardened resin with colored pigments that is applied to the boards in a silkscreen fashion. The purpose of solder mask is to protect the electronic traces underneath from moisture and dust and to control the flow of molten solder.

What is fr4 material?

FR-4 (or FR4) is a NEMA grade designation for glass-reinforced epoxy laminate material. FR-4 is a composite material composed of woven fiberglass cloth with an epoxy resin binder that is flame resistant (self-extinguishing).

What are the parts of PCB?

Some common PCB components include:

• Battery: provides the voltage to the circuit.
• Resistors: control the electric current as it passes through them.
• LEDs: light emitting diode.
• Transistor: amplifies charge.
• Capacitators: these are components which can harbour electrical charge.

Who invented PCB?

Paul Eisler

How do PCBs work?

A printed circuit board, or PCB, is used to mechanically support and electrically connect electronic components using conductive pathways, tracks or signal traces etched from copper sheets laminated onto a non-conductive substrate. The IPC preferred term for populated boards is CCA, circuit card assembly.

How multilayer PCB is manufactured?

To produce a multi-layer PCB, alternating layers of epoxy-infused fiberglass sheet called prepreg and conductive core materials are laminated together under high temperature and pressure using a hydraulic press. After cooling, the resulting material follows the same manufacturing processes as a double-sided PCB.

What is the difference between PCB and PCBA?

PCB refers to the circuit board, while PCBA refers to the circuit board plug-in assembly, SMT process. One is a finished board and the other is a bare board. PCB(Printed Circuit Board),Made of epoxy glass resin material, it is divided into 4, 6 and 8 layers according to the number of signal layers.

Which PCB design software is the best?

Top 9 Best PCB Design Software of 2019

• PROTEL (Altium Designer)
• PADS (PowerPCB)
• ORCAD.
• Allegro.
• Eagle(Easily Applicable Graphical Layout Editor)
• Kicad.
• EasyEda.

What are layers in PCB?

Printed circuit boards (PCBs) consist of anything from one layer to multiple layers of dielectric and conductive materials. When bonded into boards, these layers carry circuits that power a vast range of home electronics, such as alarm clocks, kitchen appliances, desk supplies, computers and mobile devices.

What are PCB components?

A printed circuit board (PCB) mechanically supports and electrically connects electrical or electronic components using conductive tracks, pads and other features etched from one or more sheet layers of copper laminated onto and/or between sheet layers of a non-conductive substrate.

What is PCB layout design?

PCB Layout is a high-level engineering tool for board design featuring smart manual routing of high-speed and differential signals, shape-based autorouter, advanced verification, and wide import/export capabilities. The board can be previewed in 3D and exported for mechanical CAD modeling.

Which solution is used for PCB etching?

Currently used for print circuit board etching of solvents are iron (Ferric Chloride), cupric chloride (Cupric Chloride), alkaline ammonia (Alkaline Ammonia), sulfuric acid hydrogen peroxide (Sulfuric Acid + Hydrogen Peroxide) etching fluid, ammonium persulfate, sulfuric acid – chromic acid etching solution.

What is etching in PCB?

Etching is a "subtractive" method used for the production of printed circuit boards: acid is used to remove unwanted copper from a prefabricated laminate. You can etch a PCB by yourself, in a lab or even at home, through a simple and inexpensive production process.

What is the meaning of PCB?

PCB. Stands for "Printed Circuit Board." A PCB is a thin board made of fiberglass, composite epoxy, or other laminate material. Conductive pathways are etched or "printed" onto board, connecting different components on the PCB, such as transistors, resistors, and integrated circuits.

How do you use a photoresist PCB?

Place the PCB on top of the transparency, photoresist facing down towards the LEDs. Stack about 8-10 textbooks on top of the PCB to make sure the photoresist is tightly pressed against the ink of the transparency. No scotch tape is necessary to hold the PCB down to the transparency. Turn the UV light box on.

What is PCB design software?

PCB is a free and open-source software suite for electronic design automation (EDA) - for printed circuit boards (PCB) layout. It uses GTK+ for its GUI widgets.

What is photoresist in PCB?

Photoresist boards are light-sensitive material sheets, made from high quality glass epoxy with a copper foil bonded to one or both sides. They are essential for producing and prototyping printed circuit boards.
