What causes pressure drop?

What Causes Pressure Drop? Any type of obstruction, restriction, or roughness in the system will cause resistance to air flow and cause pressure drop. The maximum pressure drop from the supply side to the points-of-use will occur when the compressed air flow rate and temperature are highest.

.

Likewise, what does a pressure drop mean?

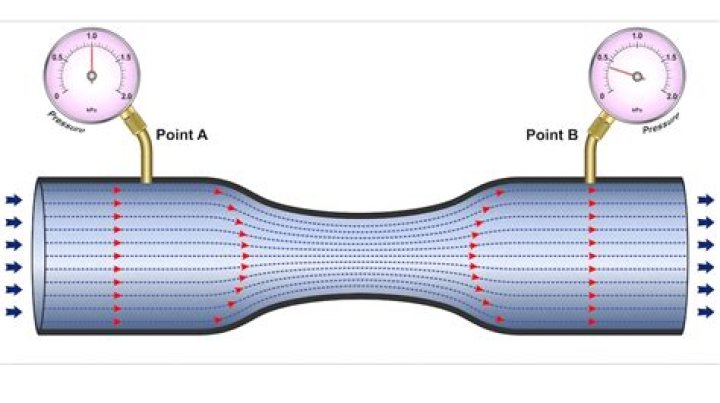

Pressure drop is defined as the difference in total pressure between two points of a fluid carrying network. A pressure drop occurs when frictional forces, caused by the resistance to flow, act on a fluid as it flows through the tube.

Also, how do you reduce pressure loss? Increasing the tube pitch ratio. Increase in tube pitch ratio reduces the cross flow velocity and, thereby, reduces the pressure drop.

Tube side pressure drop can be lowered in following ways:

1. Increasing the shell diameter.
2. Increasing tube diameter.
3. Increasing the nozzle size.
4. Using the shells in parallel.

Moreover, what is the formula for pressure drop?

Darcy–Weisbach equation. In fluid dynamics, the Darcy–Weisbach equation is an empirical equation, which relates the head loss, or pressure loss, due to friction along a given length of pipe to the average velocity of the fluid flow for an incompressible fluid.

How does pressure drop affect flow rate?

Under laminar flow conditions, pressure drop is proportional to volumetric flow rate. Under turbulent flow conditions, pressure drop increases as the square of the volumetric flow rate. At double the flow rate, there is four times the pressure drop. Pressure drop decreases as common mode pressure increases.

Related Question Answers

Why is pressure drop in pipes important?

Calculation of Pump Head: Friction between the fluid flowing through a conductor and its inside wall causes losses, which are quantified as pressure drop. Pressure drop in conductors is an important consideration for the designer especially in systems where long pipe or hose runs are necessary.

What is pressure drop HVAC?

When air is drawn through an HVAC system with a filter installed, that filter will create some resistance to the airflow. As a result, the difference in air pressure in the ductwork on one side of the filter versus the other side of the filter is what HVAC professionals refer to as pressure drop.

What is pressure drop hydraulics?

What Is Pressure Drop? As related to our business, pressure drop is the differ- ence between the pressure of a fluid as it enters one. end of a hydraulic hose assembly and the pressure of. that fluid as it leaves the other end.

What is pressure drop valve?

Pressure Drop across Control Valves. Pressure drop, or pressure loss, is the difference in pressure as measured between two points in a pipe with flowing fluid. Specific to control valves, it is the difference between the inlet pressure and outlet pressure.

What is pressure drop in air filter?

What is air filter pressure drop? As a result, your air filter slows down your system's airflow to a certain degree and creates a pressure drop, which forces your system to work harder and consume more energy to keep air flowing properly.

What does pressure head mean?

In fluid mechanics, pressure head is the height of a liquid column that corresponds to a particular pressure exerted by the liquid column on the base of its container. It may also be called static pressure head or simply static head (but not static head pressure).

Can Pressure Drop be negative?

Pressure drop utilization Excessive pressure drop is of course negative, because the flow must then be pushed through the BPHE using a lot of pump power.

What do you mean by pressure?

Pressure is defined as the physical force exerted on an object. The force applied is perpendicular to the surface of objects per unit area. Unit of pressure is Pascals (Pa).

Is pressure a force?

Pressure. Pressure is defined as force per unit area. It is usually more convenient to use pressure rather than force to describe the influences upon fluid behavior. The standard unit for pressure is the Pascal, which is a Newton per square meter.

What is frictional pressure drop?

From Wikipedia, the free encyclopedia. In fluid flow, friction loss (or skin friction) is the loss of pressure or “head” that occurs in pipe or duct flow due to the effect of the fluid's viscosity near the surface of the pipe or duct.

What is head loss?

Head loss refers to the measurement of energy dissipated in a system due to friction. It accounts for the totality of energy losses due to the length of a pipe and those due to the function of fittings, valves and other system structures.

What does high pressure drop mean?

Pressure drop represents a loss of potential energy. The loss of potential energy could be to kinetic energy where a fluid accelerates, or it may be heating of the fluid due to flow turbulence. thx for the welcome . So high pressure drop mean high energy loss (potential or kinetic ??)

Is head loss the same as pressure drop?

Head losses in pipe refers to the pressure drop (due to friction) as a fluid flows through a pipe. Head losses represents how much pressure will be lost due to the orientation of the pipe system. As fluid flows through these bends, the pressure of the fluid flow decreases due to a change in the direction of the fluid.

What is SI unit PSI?

Pounds per square inch. It is the pressure resulting from a force of one pound-force applied to an area of one square inch. In SI units, 1 psi is approximately equal to 6895 N/m².

What is head loss equation?

Head Loss. Alternatively the Darcy-Weisbach equation can express head loss as water column by dividing the pressure loss (1) with the specific weight of water. Δh_{major_loss,w} = λ (l / d_h) (ρ_f v² / 2) / γ_w. = λ (l / d_h) (ρ_f v² / 2) / ρ_w g. = λ (l / d_h) (ρ_f / ρ_w) (v² / (2 g)) (2)

What is steady flow?

Definition of steady flow. : a flow in which the velocity of the fluid at a particular fixed point does not change with time. — called also stationary flow. — compare uniform flow.

How much water pressure do you lose per foot?

The conversion factor for water at normal ambient conditions of 60 degrees Fahrenheit is 2.31 feet of elevation per pound-per-square-inch water pressure. Dividing the 100 feet of elevation by 2.31 feet per psi yields a head loss of 43.29 psi.

What does pressure drop mean for natural gas?

Pressure drop can be defined as the quantity of line pressure, which is lost forever when gas flows through a device in a gas line. This loss of pressure is due to the frictional resistance of the parts exposed to the gas. Each instrument and fitting in a line causes a certain amount of drop in pressure.

Why does friction drop Pressure?

The greater the friction (and viscosity) the greater the resistance (opposition) to motion. As friction increases, the pressure drop must increase, and more work will have to be done on a fluid for a given flow rate.
