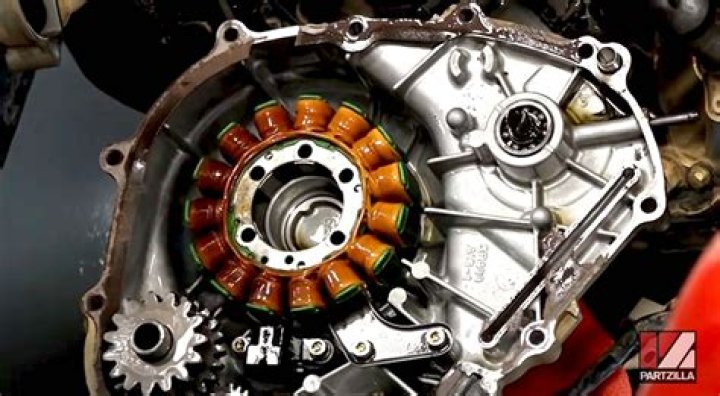

What causes a stator to go bad?

To answer why stators fail, it is because the coating on the windings breaks down, usually because of heat, causing a short which can also burn the fine wire of the winding in two at the short causing an open circuit. The way to prevent failures is to prevent the heat.

Regarding this, what causes stator failure?

The primary root cause of electrical tracking failures is the presence of any contamination build-up on the stator winding insulation. motor operation. Specifically with stators, extreme vibration will cause friction between the coils and the stator core.

Also Know, how do you troubleshoot a stator? With the connector unplugged, you can test the stator for both resistance and voltage. To begin, you should first check for continuity from the terminal tabs of the connector and then see if anything goes to the ground. Set your multimeter to Ohms to check this.

Subsequently, question is, what happens when stator goes bad?

The stator coil generates the power for the spark plug and other accessories on small engines Without a stator there would be no spark at all, meaning the engine won't run. While a stator is dying, it can produce a weak spark, causing the engine to miss or run poorly. Symptoms are often worsened as the engine warms up.

How do you test a stator?

First perform the static stator tests. With the ignition switch in the “Off” position, disconnect the regulator from the stator. Set the multimeter to “Resistance” or “Ohms” on the lowest scale, and insert one probe into one of the stator pin sockets. Touch the other probe to any chassis ground.

Can a stator be rebuilt?

All rebuilt stators require a core exchange and come with a one year replacement warranty. Most new and rebuilt stators are built to stock specification, but we do offer some high output stator versions as part of the Hot Shot Series so you can get even more electrical power from your machine.

How much does it cost to replace a stator?

Stator & Rotor - $250 - $1,500 for a new set A new stator and rotor set typically costs between $250 and $1,500. They are stationary and rotating parts of any system that generates electricity. When they stop working seamlessly, they need repair or replacement.

What voltage should my stator put out?

The object of this test is to see if the stator can produce proper AC voltage per 1000 RPM. For example a 32-amp stator should put out 18 volts AC (VAC) per each 1000-RPM. At 2000 it should be 36 VAC (18x2). At 3000 RPM it should be 54 VAC (18 X 3).

What are the main types of stator winding faults?

Different types of stator winding faults that may develop are short circuit faults - (i) between turn to turn within a coil, (ii) between coil to coil of the same phase, (iii) between phase to phase, (iv) phase to earth and (v) open circuit fault [5].

What causes motorcycle stator failure?

High engine temperatures can lead to stator coil open and closed failures, especially in modern motorcycle engines that submerge the stator in an engine oil bath to help dissipate heat.

What causes a motor to short to ground?

Low resistance is caused by the degradation of the insulation of the windings due to conditions such as overheating, corrosion, or physical damage. This leads to insufficient isolation between the conductors or motor windings, which can cause leakages and short circuits, and eventually motor failure.

What is the function of a stator?

Energy flows through a stator to or from the rotating component of the system. In an electric motor, the stator provides a rotating magnetic field that drives the rotating armature; in a generator, the stator converts the rotating magnetic field to electric current.

What are the signs of a bad Rectifier?

There are generally two ways for the regulator rectifier to fail. The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights, irregular meter readings and poor starts.

Can a bad stator cause backfire?

The AC power windings have nothing to do with the ignition coils on a stator. Runs good at lower rpms but runs bad at higher rpms (High speed coil is going bad) Backfiring and just won't run good. Sled slowly loses power during the course of the day.

What are symptoms of a bad voltage regulator?

Usually a faulty instrument voltage regulator will produce a few symptoms that can alert the driver of a potential issue.

Dim or flickering gauges. One of the first symptoms of an issue with the voltage regulator is dim or flickering gauges.
Inaccurate or erratic readings.
Inoperable instrument cluster.

What is the difference between a stator and an alternator?

The main difference between them is in regard to what spins and what is fixed. In an alternator, electricity is produced when a magnetic field spins inside the stator (windings of wire). In a generator, on the other hand, the armature or windings of wire spin inside a fixed magnetic field to generate electricity.

Will a bad rectifier cause no spark?

Yes, a faulty rectifier can cause no-spark condition.

Is a magneto and a stator the same thing?

The stator and the magneto really can be thought of as the same thing. Simply put the stator is the stationary, wire wound portion of the power generation system. Magneto is the common name used when describing a permanent magnet to produce alternating current.

Will a motorcycle run with a bad Rectifier?

In both kinds of engines, the battery will die eventually because the lack of a rectifier will mean that the alternator is not charging the it. Eventually the engine will not start. You'll probably notice that the battery is going flat and having a hard time cranking the engine first though.

How do you test a boat ignition coil?

How to Test a Marine Outboard Motor Coil

Disconnect the wires from the positive and negative terminals on the coil. These terminals are connected to the primary circuit.
Disconnect the spark plug lead from the coil tower. The coil tower is connected to the secondary circuit.
Turn on the volt meter.
Test the primary circuit.
Test the secondary circuit.

How do I check the spark on my outboard motor?

Hold the plug wire about 1/4 inch from the powerhead, not over the spark plug. Turn the motor over one time only, either with the recoil starter or the electrical starter. Watch for a spark and observe its character. A good, strong spark means the air and fuel mixture in the cylinder will be ignited properly.

How do you test a mercury power pack?

Select the resistance scale on the multimeter. Place the positive probe of multimeter on the green and white striped terminal wire pin and the negative probe of the multimeter on the terminal pin for the red and yellow wire. Primary resistance should be less than 1 ohm, about 0.38 ohms and 0.78 ohms.

What is a trigger on a boat motor?

Nestled in with the stator under the flywheel is the trigger (or timer base). Probably the most overlooked part of the ignition system the trigger sends a signal to the CDI unit (power pack or switchbox) and tells it when to release voltage to the coil.

How does a stator work on a boat motor?

A stator is basically a generator on earlier model outboards, or an alternator on later models. The purpose of the stator is to supply the energy needed to operate the ignition system on an outboard boat motor. It also contains charge coils which provides a charge current for the batteries.
