What are the types of potentiometer?

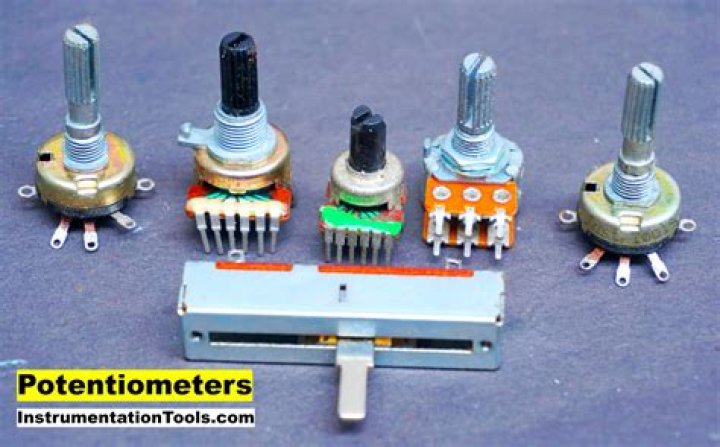

Potentiometers can be of two types, linear and rotary. A potentiometer consists of four main components: two fixed terminals, one moving terminal (called the wiper), a resistive strip or track, and the housing.

.

Besides, what is the function of a potentiometer?

The measuring instrument called a potentiometer is essentially a voltage divider used for measuring electric potential (voltage); the component is an implementation of the same principle, hence its name. Potentiometers are commonly used to control electrical devices such as volume controls on audio equipment.

Also Know, how do I know what potentiometer I have? Steps

1. Find out what the rating of the potentiometer is.
2. Get an ohmmeter which you will set to a setting that is higher that your potentiometer's total resistance.
3. Take a closer look at the potentiometer.
4. Take the probes of your ohmmeter.
5. Turn the controller all the way to the other side.

Also to know, what are the 3 terminals on a potentiometer?

A potentiometer has 3 pins. Two terminals (the blue and green) are connected to a resistive element and the third terminal (the black one) is connected to an adjustable wiper. The potentiometer can work as a rheostat (variable resistor) or as a voltage divider.

What is the difference between A and B potentiometers?

500k "A" would denote an audio taper pot, and the "B" suffix would denote a linear taper pot. The only difference is the taper of the pot, or "how gradually it rolls off". Most manufacturers use either (2) audio taper pots for volume + tone or would use audio taper for volume, and linear taper for tone.

Related Question Answers

What is a rheostat used for?

Rheostat, adjustable resistor used in applications that require the adjustment of current or the varying of resistance in an electric circuit. The rheostat can adjust generator characteristics, dim lights, and start or control the speed of motors.

Does a potentiometer change voltage?

The voltage across the input and the output stays the same but the voltage at the wiper variable output depends on the position of the knob or screw that adjusts it. As you turn the knob of a potentiometer, the change in the resistance can be either linear or logarithmic.

What is the output of potentiometer?

In a potentiometer, the entire input voltage is applied across the whole length of the resistor, and the output voltage is the voltage drop between the fixed and sliding contact as shown below. A potentiometer has the two terminals of the input source fixed to the end of the resistor.

What is a 10k potentiometer?

The “K” in the notation is short for “kilohms.” The ohm is the SI unit of electrical resistance; a kilohm is 1000 ohms. So a 100K potentiometer has ten times the resistance of a 10K potentiometer.

How is voltage defined?

We define voltage as the amount of potential energy between two points on a circuit. One point has more charge than another. This difference in charge between the two points is called voltage.

What is the difference between a rheostat and a potentiometer?

A potentiometer is a three terminal variable resistor, but a rheostat is a two terminal variable resistor. A potentiometer can be used as a rheostat but a rheostat cannot be used as a potentiometer. Potentiometers are often used to vary voltage and rheostats are used to vary current.

What is AC potentiometer?

AC Potentiometer. Definition: The potentiometer which is used for measuring the phase and the magnitude of the unknown emf by comparing it with the known emf such type of potentiometer is known as the AC potentiometer.

Why does a rheostat have 3 terminals?

A 3 terminal pot used with 3 terminals, is basically just a voltage divider. As you move the wiper, you increase one resistor in the voltage divider, while decreasing the resistance in the other. So long as the wiper is connected to one leg of the potentiometer, it will behave a variable resistor.

How do voltage dividers work?

A voltage divider is a simple circuit which turns a large voltage into a smaller one. Using just two series resistors and an input voltage, we can create an output voltage that is a fraction of the input. Voltage dividers are one of the most fundamental circuits in electronics.

What is I in Ohm's law?

A law relating the voltage difference between two points, the electric current flowing between them, and the resistance of the path of the current. Mathematically, the law states that V = IR, where V is the voltage difference, I is the current in amperes, and R is the resistance in ohms.

How does a linear potentiometer work?

Linear potentiometers produce a resistance output that varies according to the displacement or position of a slider or wiper. They are variable resistors with three leads. Two leads connect to the ends of the resistor, so the resistance between them is fixed.

How does a rheostat work?

A rheostat is a variable resistor which is used to control current. They are able to vary the resistance in a circuit without interruption. Therefore they are mostly constructed as wire wound resistors. Resistive wire is wound around an insulating ceramic core and the wiper slides over the windings.

What is preset resistor?

A preset resistor is a smaller PCB mounted version of a potentiometer. These are useful where adjustment or configuration of a circuit needs to be made but such adjustment only occurs during building a circuit, not during normal use. An appropriate value for the PICAXE system is 10k (do not use 100k devices).

Can I use a potentiometer to reduce voltage?

A potentiometer, or "pot" is a variable resistor with three terminals and a shaft that can be turned in either direction. Using one of the end terminals and the wipers, create a variable resistor to control or adjust current. Use all three terminals to create a voltage divider to control or adjust voltage.

How do you test a 10k potentiometer?

Set your ohmmeter to a setting higher than the total resistance of the potentiometer. For example, if your potentiometer is rated at 1,000 ohms, set your ohmmeter to 10,000 ohms. Look at your potentiometer. There should be three tabs sticking out of it.

Why do potentiometers fail?

Potentiometers and trimmers Mechanical deformations (like an impaired wiper-path contact) can occur by housing warpage during soldering or mechanical stress during mounting. Excess stress on leads can cause substrate cracking and open failure when the crack penetrates the resistive path.

How does a Photoresistor work?

A photoresistor is a type of resistor whose resistance decreases when the intensity of light increases. In other words, the flow of electric current through the photoresistor increases when the intensity of light increases. Photoresistor changes its resistance only when it is exposed to light.

What do you mean by resistance?

Resistance is the opposition that a substance offers to the flow of electric current. When an electric current of one ampere passes through a component across which a potential difference (voltage) of one volt exists, then the resistance of that component is one ohm.

How much current can a potentiometer handle?

But according to calculation, max current of this potentiometer is about 20mA.
