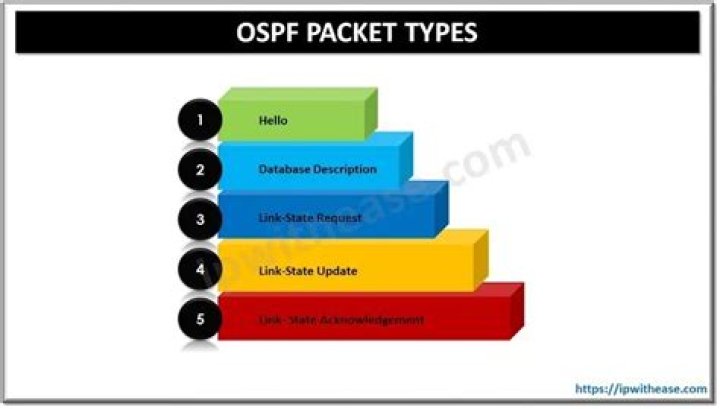

What are the OSPF packet types?

OSPF packets are classified into the following types:

Hello packet.
Database Description (DD) packet.
Link State Request (LSR) packet.
Link State Update (LSU) packet.
Link State Acknowledgment (LSAck) packet.

Thereof, what is OSPF DBD packet?

DBD: This packet is used to check if the LSDB between 2 routers is the same. The DBD is a summary of the LSDB. LSR: Requests specific link-state records from an OSPF neighbor.

Also, what is the purpose of Hello packet in OSPF? In the Open Shortest Path First (OSPF) communications protocol - which enables network routers to share information with each other, a HELLO packet is a special packet (message) that is sent out periodically from a router to establish and confirm network adjacency relationships.

Consequently, which packet is not an OSPF packet type?

Explanation: LSU is the Link State Update packet, LSR is the Link State Request packet and DBD is the Database Descriptor packet in OSPF. Query packet is NOT an OSPF packet type.

How many network types are there in OSPF?

three

Does OSPF use TCP or UDP?

Open Shortest Path First (OSPF) is a link-state routing protocol. OSPF does not use a TCP/IP transport protocol (UDP, TCP), but is encapsulated directly in IP datagrams with protocol number 89. BGP uses the Transmission Control Protocol (TCP) as its transport protocol, and is assigned the reserved port 179.

What are valid OSPF States?

OSPF routers go through the seven states, called Down, Attempt/Init, Two ways, Exstart, Exchange, Loading and full while building adjacency with other OSPF speaking routers.

Why do we need OSPF?

The OSPF protocol is a link-state routing protocol, which means that the routers exchange topology information with their nearest neighbors. The main advantage of a link state routing protocol like OSPF is that the complete knowledge of topology allows routers to calculate routes that satisfy particular criteria.

How many states are in OSPF?

seven states

What is a DRother?

Designated router represents all OSPF routers in its area. DRother is a router that's neither a DR nor a BDR. DRother routers still send hello packet to ALLSPFROUTERS using 224.0. 0.5 to check the existence of neighbouring OSPF routers.

What is OSPF area?

An OSPF network can be divided into sub-domains called areas. An area is a logical collection of OSPF networks, routers, and links that have the same area identification. A router within an area must maintain a topological database for the area to which it belongs.

How is OSPF adjacency established?

An OSPF adjacency is established in several steps. In the first step, routers that intend to establish full OSPF neighbor adjacency exchange OSPF Hello packets. Both OSPF neighbors are in the Down state, the initial state of a neighbor conversation that indicates that no Hello's have been heard from the neighbor.

What is LSU OSPF?

Each single Link State Update (LSU) packet can contain one or more LSAs inside it and when an LSU is sent between OSPF routers, it floods the LSA information through the network.

How does OSPF prevent loops?

Answer: There is no loop avoidance in OSPF,like those you would see in distance-vector routing protocols. The loop avoidance is inherent in the SPF algorithm,which OSPF (as a link-state routing protocol) uses to calculate routes. This way, a tree is built for each router with itself as the root.

How many types of LSA are there in OSPF?

LSA Type 3: Summary LSA. LSA Type 4: Summary ASBR LSA. LSA Type 5: Autonomous system external LSA. LSA Type 6: Multicast OSPF LSA.

OSPF LSA Types Explained.

Link Type	Description	Link ID
3	Connection to stub network.	IP Network
4	Virtual Link	Neighbor router ID

What is DR and BDR in OSPF?

OSPF uses a DR (Designated Router) and BDR (Backup Designated Router) on each multi-access network. OSPF uses a DR (Designated Router) and BDR (Backup Designated Router) on each multi-access network.

What are the BGP states?

BGP Neighbor Adjacency States

Idle - BGP resources are initialized by the router.
Connect - BGP waits for the 3WHS to complete.
Active - The ConnectRetry timer is reset, and BGP returns to the Connect state.
OpenSent - BGP waits for an OPEN message from its peer.

Which protocol does BGP use?

Border Gateway Protocol (BGP) is a standardized exterior gateway protocol designed to exchange routing and reachability information among autonomous systems (AS) on the Internet. The protocol is classified as a path vector protocol.

Is Link State a protocol?

IS-IS is a link-state routing protocol, operating by reliably flooding link state information throughout a network of routers. Each IS-IS router independently builds a database of the network's topology, aggregating the flooded network information.

What is the default Hello interval in OSPF?

Timer Intervals Hello—Interval time in seconds that a router sends an OSPF hello packet. On broadcast and point-to-point links, the default is 10 seconds. On NBMA, the default is 30 seconds.

What is OSPF neighbor state?

When OSPF adjacency is formed, a router goes through several state changes before it becomes fully adjacent with its neighbor. Those states are defined in the OSPF RFC 2328. , section 10.1. The states are Down, Attempt, Init, 2-Way, Exstart, Exchange, Loading, and Full.

What is a hello packet?

In the Open Shortest Path First (OSPF) communications protocol - which enables network routers to share information with each other, a HELLO packet is a special packet (message) that is sent out periodically from a router to establish and confirm network adjacency relationships.

What is Hello protocol?

The Hello Protocol. The Hello Protocol is responsible for establishing and maintaining neighbor relationships. It also ensures that communication between neighbors is bidirectional. Hello packets are sent periodically out all router interfaces.

What is Link State Algorithm?

Link State Routing – It is a dynamic routing algorithm in which each router shares knowledge of its neighbors with every other router in the network. A router sends its information about its neighbors only to all the routers through flooding. Information sharing takes place only whenever there is a change.
