What are the different sensor sizes?

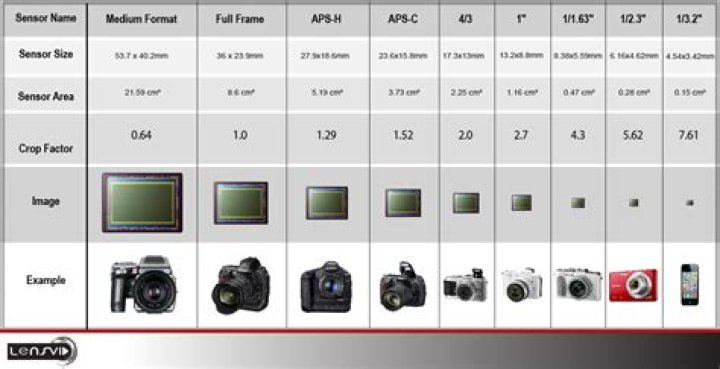

Table of camera sensor size, area, and diagonal crop factor relative to 35mm full-frame

Sensor Type	Diagonal (mm)	Sensor Area (in square millimeters)
Standard 16mm Film Frame	12.7	76.85
1” Type (Sony RX100 & RX10, Nikon CX, Panasonic ZS100, ZS200, FZ1000)	15.86	116
Micro Four Thirds, 4/3	21.60	225
APS-C: Canon EF-S	26.70	329

.

Also to know is, what are the different camera sensor sizes?

DSLRs – By the time you get up to DSLRs and other professional cameras, the sensor size has obviously increased. Most DSLRs whether from Canon, Nikon, Pentax or Sony use either an APS-C (22.2 x 14.8 mm Canon and 23.5-23.7 x 15.6 mm for others) or a Full Frame (36 x 24 mm) sensor.

Furthermore, are 1/2.3 Sensors good? 1/2.3-inch Their size allows manufacturers to make very compact cameras with long lenses, such as superzoom compacts like the Panasonic ZS70 / TZ90 and Canon PowerShot SX730 HS. Using a larger sensor in such cameras would necessitate a larger, heavier and more expensive lens.

Similarly one may ask, what is a 1/2.3 inch sensor?

Compact mirrorless interchangeable-lens cameras typically feature a range of sensor sizes. Smaller ones include the 1/2.3-inch (6.17mm by 4.55mm) sensor in the Pentax Q, and the 1-inch sensor used in the Nikon 1 Series. The Sony Xperia Z1 carries a 1/2.3-inch, 20.7-megapixel sensor.

What does sensor size mean?

In photography sensor size describes the physical dimensions of a sensor. Sensor size can be measured in mm or in inches, for example a 'full frame' sensor measures 36 x 24mm and a 'micro four thirds' or '4/3' sensor measures 18 x 35mm.

Related Question Answers

How big is a one inch sensor?

What are marketed as "1 inch sensors" are actually only about 9 x 12 millimeters on a good day, or about 0.35 x 0.47" — nowhere near one inch. These little sensors have only about one-quarter the area of a typical crop-frame DSLR (16x24mm), and only about one-eighth the area of a full-frame (24x36mm) sensor.

How do you calculate sensor size?

Calculate sensor size: Example 3: According to the camera user manual the Basler acA1300-30um has a pixel size of 3.75 x 3.75um and a resolution of 1296 x 966 pixels. The sensor size is then 3.75um x 1296 by 3.75um x 966 = 4.86 x 3.62mm.

What size is a Four Thirds sensor?

The image sensor of Four Thirds and MFT measures 18 mm × 13.5 mm (22.5 mm diagonal), with an imaging area of 17.3 mm × 13.0 mm (21.6 mm diagonal), comparable to the frame size of 110 film.

How big is a medium format sensor?

As previously discussed, the enlarged image sensors in medium format cameras are much bigger than the 35mm full-frame sensor found in most high-end DSLRs and mirrorless cameras. In digital cameras, medium format sensor sizes typically range from around 43.8×32.9mm to 53.7×40.2mm.

Does sensor size affect image quality?

The larger the sensor, the greater the surface area, the more light ( photons ) it will catch. Notice the massive difference in light collecting surface area between the APS-C vs full frame camera sensors. These cameras will produce much different overall image quality, with the larger far exceeding the smaller.

How big is a CMOS sensor?

It's usually titled something like “CMOS” (referring to the type of electronics running it). Sometimes it includes the millimeter size of the sensor, such as “23.5 x 15.5mm”, or the name of that size, APS-C.

How big is a full frame sensor?

A full-frame camera uses a sensor that's the same size as a single frame of traditional 35mm film, measuring 36 x 24mm. The more popular APS-C sensor size found in most DSLRs and mirrorless cameras measures 22 x 15mm. This means a full-frame sensor has more than 2.5 times the surface area of an APS-C sensor.

Is 1 inch sensor good enough?

For new digital cameras, a bigger sensor area captures better quality, but requires larger-diameter, bulkier lenses. As of 2018, 1-inch Type sensors optimize the size of a serious travel camera.

Why are larger sensors better?

The benefits go well beyond resolution, and affect your overall image quality. Larger sensors help you take better pictures in low-light, capture a greater dynamic range of tones, result in reduced diffraction, and let you achieve more background blur.

Which cameras have CCD sensors?

CCD Still Has Advantages When you do find one, it's usually at the very high end of the premium point-and-shoot market--Canon's PowerShot G12, Nikon's Coolpix P7100, Olympus's XZ-1, and Panasonic's Lumix LX5, for example--where the potential user is primarily interested in still-image quality.

How big is a phone camera sensor?

Compact camera and smartphone sensor sizes: The sensors in typical compact cameras and smartphones have more variation. All of them are small considering the size of a full frame sensor. A 1/2.3-inch sensor is one of the most popular sizes, along with sizes like a 1/1.7-inch.

Which camera has the biggest sensor?

Sony's A7R II full-frame mirrorless camera offers an incredible 42.3 megapixels of resolution that's paired with the largest backside-illuminated sensor on the market.

Is CMOS or CCD better?

The biggest difference is that CCD sensors create high quality images with low noise (grain). CMOS images tend to be higher in noise. CCD sensors are more sensitive to light. CMOS sensors need more light to create a low noise image at proper exposure.

What is MOS sensor in camera?

From Wikipedia: "The Live MOS sensor is a brand name of an NMOS Image sensor used by Panasonic, Olympus and Leica in their Four Thirds System DSLR manufactured since 2006. A reviewer claims that the sensor can achieve the same image quality as CCD-based sensors while keeping energy consumption down to CMOS levels."

What is a Super 35 sensor?

Super 35 (originally known as Superscope 235) is a motion picture film format that uses exactly the same film stock as standard 35 mm film, but puts a larger image frame on that stock by using the negative space normally reserved for the optical analog sound track.

How big is an APS C sensor?

The typical APS-C sensor size is different across camera brands. Canon APS-C sensors are usually 22.3×14.9mm, while other brands like Nikon, Sony, Pentax, and more usually feature APS-C sensors with 23.6×15.6mm dimensions.

What is a camera sensor made of?

The two main types of electronic image sensors are the charge-coupled device (CCD) and the active-pixel sensor (CMOS sensor). Both CCD and CMOS sensors are based on metal–oxide–semiconductor (MOS) technology, with CCDs based on MOS capacitors and CMOS sensors based on MOSFET (MOS field-effect transistor) amplifiers.

How big is the sensor in an iPhone?

According to dpreview.com, the iPhone Xs and Xs Max have dual 12 MP sensors made by Sony for the front-facing cameras. Each sensor measures 7.01 x 5.79 mm, with an active area that's 5.6 x 4.2 mm, about the same size as a 1 x 2.5” sensor.
