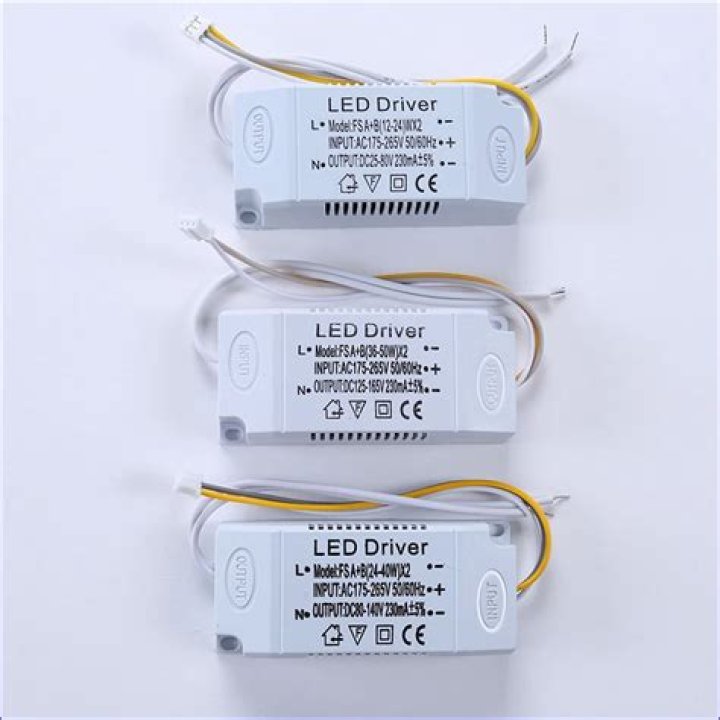

What are LED drivers?

Some people use the word driver and others use the word transformer. At InStyle LED they are both exactly the same thing. They are a product that transforms mains 240v down to either 12v or 24v to run the LED tape. People often use the word driver as it drives (powers) to the LED tape.

.

In respect to this, what does an LED driver do?

An LED driver's main purpose is to rectify higher voltage, alternating current to low voltage, direct current. LED drivers also protect LEDs from voltage or current fluctuations. LED light output is proportional to its current supply, and LEDs are rated to operate within a certain current range (measured in amps).

do LED bulbs need a driver? Most LEDs require a driver, a few are designed to run on AC current. Most household LEDs that are direct replacements for incandescent, halogen, and CFL bulbs with an E26/E27 or GU10/GU24 base have an internal driver. It's the strip lights where people trip up.

Just so, what is the difference between LED driver and transformer?

The fundamental difference between the two is that LED drivers output DC while electronic halogen transformers output 12VAC. The difference in their voltage outputs can be seen in figure 6. The yellow voltage signal is that supplied by a Redback electronic transformer to a Philips retrofit LED light.

How long does an LED driver last?

50,000 hours

Related Question Answers

What causes led drivers to fail?

When an LED stops operating before the end of its rated lifetime, it can usually be saved if the driver is replaced. Drivers often fail prematurely due to high internal operating temperatures. Battery-like components called electrolytic capacitors are typically the cause of death.

What size LED driver do I need?

We recommend choosing a driver with a wattage capability at least 10% higher than the wattage the LED tape requires to ensure a longer lifespan. For example, 5m of 6w LED tape requires 30 watts. We would recommend using a driver with an output capability of 33 watts or more to power this tape.

Do all LED lights require a driver?

Do LEDs Need a Driver? Most LEDs require a driver, a few are designed to run on AC current. While the LED bulbs you screw into a fixture may not look like they have one, they actually have an internal driver just like screw-in CFLs have an integral ballast.

Do LED drivers get hot?

Overheating of the LED not only depreciates its light quality, but heat also gets trapped in the housing causing the driver to overheat which will result in reduced lifetime of the driver itself. If you run your driver close to the maximum temperature indicated for UL approval, the operating lifetime will be shortened.

Do LED Drivers go bad?

So in this case, a bad LED driver could result in more power running through the LEDs, ultimately causing it to become overheated, which could hurt is lifespan or even just completely fry it. Or on the flip-side, if not enough power is getting to the LEDs, your light output and quality will suffer.

Do I need to replace transformer for LED?

They will have a transformer either in the ceiling or light fitting. Some LED bulbs, like the Philips Master LED range, have in-built circuitry that can deal with most (but not all) transformers, so you don't have to change them. In other cases, you need to replace the transformer with an LED driver.

How does a LED driver circuit work?

In electronics, an LED circuit or LED driver is an electrical circuit used to power a light-emitting diode (LED). The voltage drop across an LED is approximately constant over a wide range of operating current; therefore, a small increase in applied voltage greatly increases the current.

What is a constant current LED driver?

Constant current drivers are designed for LEDs that require a fixed output current and a range of voltages. Constant current drivers usually list their specifications on the device, with only one output current rating and a range of voltages that vary based on the wattage of the LED.

Are all LED lights low voltage?

An LED light will produce more illumination than a 50-watt low voltage bulb. While low voltage lighting is more energy efficient than standard 120-volt lighting, it doesn't beat out LED. LEDs use about 12% of the energy.

Can LED strip lights be wired in parallel?

The key to installing LED tape in lengths longer than 5m is to wire your LED strips to your transformer in parallel. You can wire multiple strips back to one single transformer – just as long as the total wattage of your LED tape doesn't exceed the transformer's output.

What is the difference between constant current and constant voltage?

Constant current LED drivers have a fixed current in amperes or milliamperes and a variable voltage. Constant voltage drivers are similar, but opposite, with fixed voltages and variable currents. Image source: ledsupply.com.

How do you install LED strip lights?

Follow the steps below before you cut any of the lights or attach them to any surface.

1. Lay out all the products to create a mock installation to make sure you have all the supplies necessary.
2. Unroll the LED strip lights from the plastic reel.
3. Attach the uncut lights to the power supply and turn on the power supply.

How do you connect LED strip lights to mains?

To get your strip light working, connect the transformer / driver to the strip light ( extending the cable with 2 core flex if necessary). Then you connect your transformer / driver to the mains via a plug or direct to the mains and you're away.

Do LEDs run on AC or DC?

In most applications LEDs are driven by a DC power supply. LEDs consume DC current to produce light; with AC current the LED will only be lit when current flow is in the proper direction. AC applied to an LED will cause it to blink on and off, and at high frequency the LED will appear to be lit continuously.

Are LED drivers AC or DC?

Most LED drivers are designed to provide constant currents to operate the array of LEDs. Consequently, the LEDs that count on a driving circuit to continuously operate at a constant current level are known as DC LEDs. However, an alternating current (AC) source may be employed to drive the LED lighting system.

Can I replace halogen downlights with LED?

Examine the original fitting and bulb. Most halogen downlights fit into the power supply with small pegs or pins. These can usually be switched for LED bulbs without replacing any parts. If the bulb has 2 sharp pins and pushes into the fitting, it is likely a low-voltage MR11 or MR16 bulb.

What is a Class 2 LED?

Class 2 LED Drivers. Our UL Class 2 LED power supplies meet the US power supply safety standards used to regulate low power sources. The UL Class 2 standard limits the output power to be less than 100W, output current to 5A, output voltage to 60Vdc and leakage current to be less than 0.75mA.

Can a LED driver be used as a power supply?

LED power sources that provide a “constant-current” output have typically been referred to as LED drivers. In the past, AC-DC power supplies that provided a regulated “constant-voltage” to LEDs were referred to as LED power supplies. Today, the terms “LED driver” and “LED power supply” are used interchangeably.

Why do my LED light bulbs stay lit when switched off?

LED bulbs vary in quality so a poor quality bulb may glow, flicker or buzz when switched off. You may also find that that there is a problem with electricity circuit and not the bulbs. Some light switches will let through electricity residue even when the switch is off.
