What are evaporator coils made of?

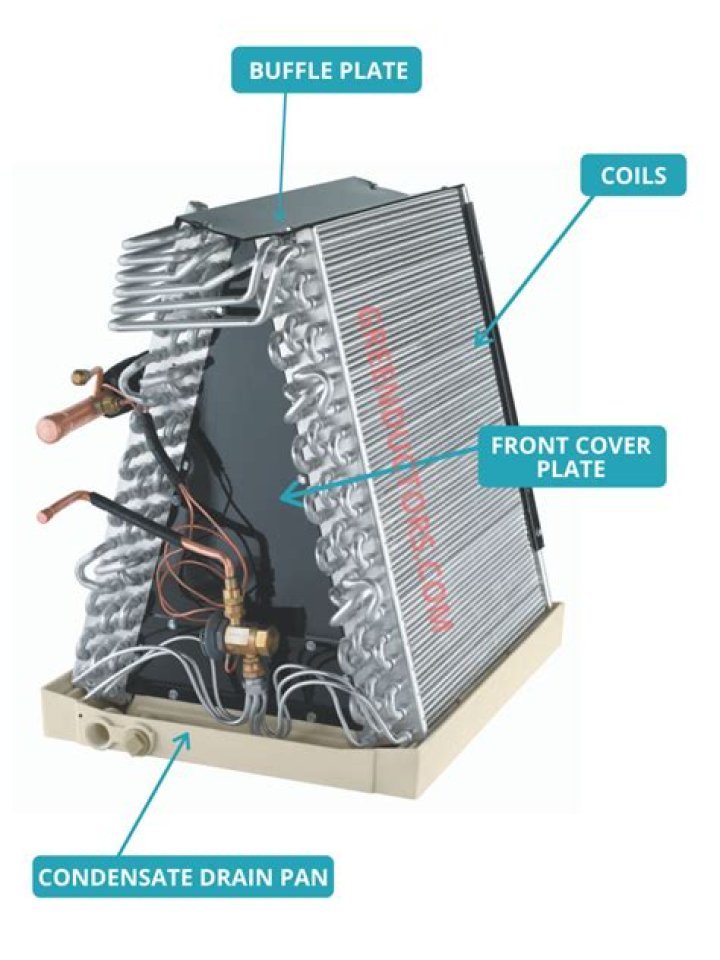

The evaporator coil is located inside or near the air handler where the blower fan is. Evaporator coils are made from copper, steel, or aluminum because these metals conduct heat easily.

.

Furthermore, what are air conditioner coils made of?

An air conditioning system has two coils, condenser coils and evaporator coils usually made of copper tubes with aluminum fins. The evaporator coil, or indoor coil, is often described as the “cold” coil because it provides indoor cooling.

One may also ask, what is the difference between condenser coil and evaporator coil? While the evaporator coil picks up heat from indoor air, the condenser coil releases heat into outdoor air. The load of heat energy extracted from your home and compressed in hot refrigerant vapor is rapidly released when refrigerant circulates into the coil and condenses to liquid.

Also to know, what does a evaporator coil do?

The role of the evaporator coil Located inside the blower compartment or air handler, the evaporator coil holds the chilled refrigerant that the compressor moves into it. As the air from the blower fan moves over the coil, the cold refrigerant removes the heat from your home's air.

Are aluminum evaporator coils better than copper?

By tradition, copper is considered the better choice when it comes to the manufacture of evaporator and condenser coils. The main difference is that Copper has about two times the conductivity that aluminum has when it comes to heat transfer.

Related Question Answers

Is it OK to spray water on your air conditioner?

No, you shouldn't clean the outside unit by spraying it with your water hose. Water pressure can bend the fins that surround the condenser coil.

Can I use vinegar to clean AC coils?

Take your spray bottle, vinegar and water. Mix ½ water and ½ vinegar inside the bottle. Shake the solution well, and apply it to the evaporator coil and condenser coil. Vinegar will not harm the parts and is a very effective cleaner.

Is evaporator coil inside or outside?

An air conditioner's evaporator coil, also called the evaporator core, is the part of the system where the refrigerant absorbs heat. That is, it's where the cold air comes from. The evaporator coil is located inside or near the air handler where the blower fan is.

Should I replace evaporator coil only?

When to Change an Evaporator Coil: Of, if the cost of cleaning is more expensive than the cost of replacement, and only guarantees getting the efficiency of the coil back to 50-75%, it should be replaced. Right now, we are in a transition period where the old R-22 refrigerant is being phased out for R-410.

How do I clean my AC coils?

How to clean A/C evaporator coils using mild detergents and water

1. Mix warm water and a simple detergent in a spray bottle, hand sprayer or garden sprayer.
2. Apply the water and detergent solution to the evaporator coils.
3. Give the solution a few seconds to a few minutes to soak in and loosen debris.

How do you clean car AC coils?

How to Clean a Car's AC Evaporator

1. Inspect your vehicle's air conditioning system under the hood. You are looking for the evaporator/heater box assembly.
2. Access the evaporator core.
3. Spray the cleaner through the access point towards the evaporator core.
4. Lightly rinse the area with water.
5. Seal the heater box.

How often should evaporator coils be cleaned?

To minimize energy usage and reduce utility costs, the A/C coils should be cleaned at least once a year. It is estimated that dirty evaporator and condenser coils can increase the energy usage of your air conditioning system by over 30 percent.

What are the symptoms of a bad evaporator core?

Symptoms of a Bad or Failing Air Conditioning Evaporator

• Weak cool air from system (or no cold air at all)
• Strange odor when using the heat or the AC.

How do I know if my evaporator coil is leaking?

If the airflow feels weak or doesn't turn on right away, you might have a refrigerant leak. Other signs include warm air coming through the vents, hissing noises from the outdoor A/C unit, frozen evaporator coils on the outdoor unit, and unpleasant odors when you turn on the heating or cooling system.

How long should an evaporator coil last?

They should last for the life of the A/C system, which is generally 15-20 years for a high quality system. (Many people end up replacing their systems between 12 and 15 years due to efficiency issues or deferred maintenance causing damage to more easily damaged components, such as the compressor.)

How much does it cost to replace an evaporator coil?

The average cost to replace a Central AC evaporator coil is around $710, when the parts are under manufacturer warranty and you only pay the labor cost. Out of warranty coil repair cost is approximately $1,460 for parts and installation.

How many types of evaporator are there?

c) Depending on the direction of the flow of the refrigerant in the shell and tube type of evaporator, they are classified into two types: dry expansion type and flooded type of evaporator.

Why is my evaporator coil frozen?

One of the most common causes of a frozen evaporator coil is lack of system airflow. If there isn't enough air blowing over your evaporator coil, the coil won't have enough heat to absorb. This will cause the condensation on the coil to freeze over. Dirty air filter.

What is the cooling coil?

Dirty Cooling Coil. The cooling coil is the indoor portion of your central A/C system. It typically sits on top of or beside of your furnace inside the plenum. The cooling coil (also called the evaporator) cools your home in warmer weather by circulating very cold refrigerant that extracts heat from passing airflow.

Why condenser is bigger than evaporator?

For example, an evaporator coil that is smaller than the condenser coils might, in some cases, provide better dehumidification but it can't cool the home as well. On the other hand, an evaporator coil that's larger than the condenser coils will cool the home well but will remove little to no moisture from the air.

Where is the AC condenser coil located?

Your condenser coil is one of two coils that are part of your air conditioning or heat pump system. The other coil, the evaporator coil, is located indoors while the condenser coil is located outdoors (in a split system). The condenser coil is where the heat is removed from the refrigerant.

How do you clean AC condenser coils?

AC Condenser Coil Cleaning Steps

1. Pull the water hose over to the condenser units.
2. Mix the coil cleaner in the pump sprayer per the manufacturer's instructions.
3. Spray on the coil cleaner.
4. Wait about 5 minutes for the cleaner to foam up.
5. Wash off the cleaner and dirt with the water hose.

What is the main difference between a condenser and evaporator?

The evaporator coil contains cold refrigerant that absorbs heat from your air. The condenser coil is where the refrigerant goes to get rid of this heat so it can can come back to absorb more. The evaporator coil is located indoors, inside or near your air handler.

What do you mean by condenser?

In systems involving heat transfer, a condenser is a device or unit used to condense a gaseous substance into a liquid state through cooling. Use of cooling water or surrounding air as the coolant is common in many condensers.
