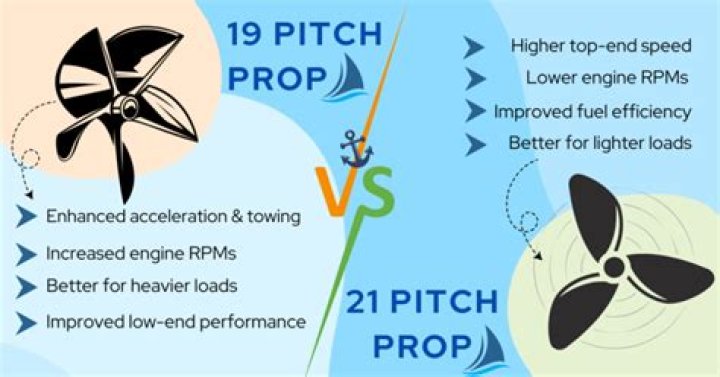

What's the difference between a 19 & 21 pitch prop?

Propeller pitch typically referred to as “prop pitch,†is essentially the distance a propeller would move in a single revolution through soft solid. So, in this case, a “21 pitch prop†would move 21 inches forward in one revolution, and a “19 pitch prop†would move 19 inches forward in one revolution.

.

Correspondingly, what is the difference between a 17 and 19 pitch prop?

The 17" prop will give you a better hole shot but lower top speed. If it is to small it the engine may go over the recomended top RPMs. The 19" prop will give you less of a hole shot but a higher top speed if the motor is strong enough to turn it in the recomended top RPM range.

Furthermore, what pitch prop do I need? If the RPM is below the recommended operating range, switch to a propeller with lower pitched blades. If the RPM is higher, switch to a propeller with higher pitched blades. Each inch of pitch size will change the RPM by 150-200 RPM. Aim for the midpoint or higher of the recommended operating range.

Hereof, which prop pitch is faster?

The lower the prop pitch, the better your hole-shot. However, this comes at a price: top speed. The lower pitch makes the engine reach maximum rpm at slower speeds. Conversely, a higher pitch will deliver greater top speeds, but slower acceleration.

What does a smaller diameter prop do?

Propeller diameter increases with the size of the boat. As the diameter increases, the blades of the propeller offer more resistance to travel through the water. This creates potentially damaging drag on smaller engines and boats. For larger boats, a larger diameter provides more propulsion power for the same reason.

Related Question Answers

Will a 4 blade prop make my boat faster?

"Often, a four-blade propeller is the ticket," says Meeler. "The additional blade area grips the water better, allowing for quicker acceleration." The greater blade area also lifts the hull more while underway, which minimizes draft.

What is prop slip?

Propeller slip, also known as prop slip, is a critical statistic that directly affects performance. The simplest way to explain prop slip is to think of a screw. Each time a screw makes a complete turn, it has completed a “pitch.” Pitch is the distance the screw traveled during one complete turn.

Is it bad to run an outboard engine at full throttle?

As long as you are propped correctly and can hit the upper end of the RPM range, [to run an engine at its maximum throttle all the time] is not a problem. Most smaller engines have two speeds, OFF and WOT. Very rarely does an engine wear out. Keep up with maintenance and you will be fine.

How many RPMs should I run my boat at?

The full-throttle limit for modern marine gasoline motors ranges from 4800 to 6000 rpm. (By comparison, your car's engine probably turns less than 2500 rpm at freeway speeds.) Most mechanics and engineers suggest the best cruising speeds are achieved at 3400 and 3800 rpm respectively.

What is WOT RPM?

Whenever you purchase a new outboard or boat, it's wise to perform a WOT RPM test. Every outboard and sterndrive motor has a WOT rating, as established by the manufacturer. The WOT rating is the RPM range the motor should achieve when running at wide open throttle.

What does cupping a propeller do?

In theory cupping a prop does increase the pitch 1 inch. However, cupping usually only helps the boat in the lower rpm range bc it reduces the slip percentage at cruise by not having the water slip off the edge of the blade. It ends up reducing top end slightly because u drop 100 to 200 rpm.

Are stainless props worth the money?

Are Stainless Props Worth the Money? But while stainless steel is the most expensive material, stainless propellers have a reputation for being much more durable that either aluminum or composites. They also purportedly offer better performance.

What are the advantages of a 5 blade prop?

In recent years, 4- and 5-blade props have become popular because they suppress vibration and improve acceleration by putting more blade area in the water, especially when the prop is breaking the surface. They can also provide more bow lift for added speed.

Will a stainless steel prop increase RPM?

A stainless prop exactly the same as an aluminum will give you more RPM, not less. Don't know where you read that, but it just isn't right, once it's spinning, the weight actually helps (think flywheel) stainless props are much thinner, and in fact usually increase RPM over the same size alumium prop.

How do I increase my bow lift?

Bow lift is leverage of your prop to the transom. A badly slipping prop is the main culprit for losing lift, and guesses at that motor height that's your biggest culprit. You increase lift by: Increasing leverage (jack plate) you can always put 2" extensions on what you've got, that will usually give you some more.

Will a mercury prop fit a Yamaha?

All Mercury and Yamaha props are interchangeable.

What is pitch speed?

Real aircraft have their prop and motor and airframe matched so that the aircraft cruises at Pitch Speed. Alan Hahn 09:55 PM Jan 23, 2010. Originally Posted by Martyn McKinney. Pitch Speed is the speed at which the prop is most efficient.

Can you change the pitch on a prop?

Most have given you good answers. You can't really re-pitch a prop since the pitch is greatly determined by the angle the blade is at the hub, which can't be altered. If you're trying to take pitch out, all a prop shop can do is lay the blades back at the outer half to reduce bite and gain you some RPM.

When should I replace my boat prop?

8 Clear Signs It's Time to Replace Your Boat Propeller

1. It Has Too Much Pitch. When researching propeller sizes, you'll notice two numbers associated with each one.
2. It Doesn't Have Enough Pitch.
3. It's a Compromise Propeller.
4. You Damaged It in the Water.
5. It's Made of Aluminum.
6. You Want to Go Faster.
7. You're Losing Gas.
8. It's Not the Right Diameter.

What is better a 3 blade or 4 blade prop?

3 or 4 Blades? A 3 blade propeller usually offers top speed performance while a 4 blade propeller provides maximum thrust and smooth cruising operation. Four blades have some features of their own, though. They often provide more lift at the stern which will help accelerate the hull, especially if it is stern heavy.

How much does a new boat prop cost?

Between $90 and $300 on average, with some repairs costing more, depending on the prop.

What angle should a propeller be?

The range of degrees could vary from -5 to +30 degrees. An average rake angle for most outboard propellers is 15 degrees. Rake can be progressive meaning it increases as you move out from the propeller hub to the blade tips.

How do you make a propeller?

Steps

1. Search for a design pattern.
2. Decide how many blades your propeller will have.
3. Determine the length for your blades.
4. Shape the airfoil.
5. Consider the proper twist for your propeller blades.
6. Determine a material for your propeller blades.
7. Draw out a pattern for your propeller.

How do variable pitch propellers work?

So how do variable pitch propellers work? A variable pitch propeller can be partially rotated along its longest axis to take a bigger bite of air as necessary. In this way, the pilot can manually adjust the propeller pitch so the propeller always maintains the most efficient flow of air around it as it operates.
