Is the EGR valve part of the emission system?

The Exhaust Gas Recirculation (EGR) Valve is an integral part of a vehicle's emission control system or EGR System. It controls the engine's emission of nitrous oxides by reducing combustion temperature.

.

Correspondingly, does EGR valve affect emissions?

When the valve is opened, exhaust gases are allowed through the vehicle's EGR system to help control vehicle emissions. When the EGR valve has an issue, it can cause problems with the flow and operation of the EGR system, which can lead to increased emissions and performance issues.

Also, what happens if you remove the EGR valve? Well, as per its job description, the exhaust gas temperature increases, putting unneccessary strain on the engine's cooling system and introducing a lot of unwanted heat into the turbo charger and catalysts.

Regarding this, what is the EGR valve connected to?

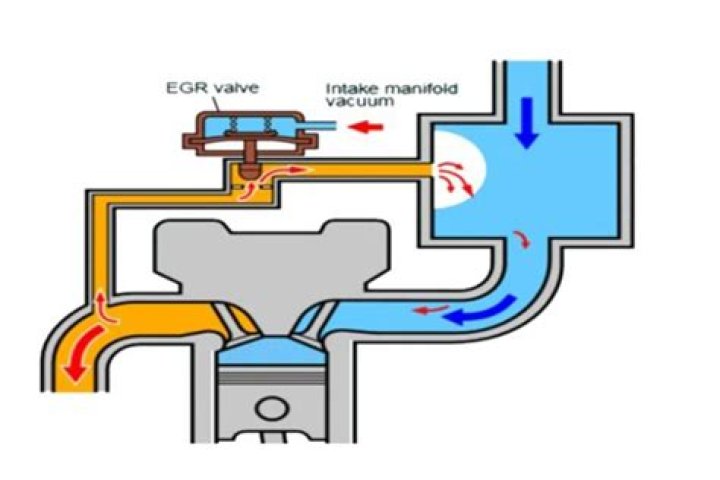

The EGR system reduces the combustion temperature by diverting a small portion of the exhaust gases back into the intake manifold. The EGR valve connects the exhaust manifold to the intake manifold. The EGR valve is normally closed. There is no EGR flow when the engine is cold, at idle, or during hard acceleration.

What are the symptoms of a faulty EGR valve?

• Your engine has a rough idle.
• Your car has poor performance.
• You have increased fuel consumption.
• Your car frequently stalls when idling.
• You can smell fuel.
• Your engine management light stays on.
• Your car produces more emissions.
• You hear knocking noises coming from the engine.

Related Question Answers

Where is a EGR valve located?

The EGR valve is located in the engine compartment (underneath the hood). Most engines require exhaust gas recirculation to meet emissions standards.

Can you clean a EGR valve?

Yes, you can. Cleaning the EGR valve is easy. You do not need to drive your vehicle to a repair shop to have the device cleaned. All you need are a few hand tools, some elbow grease, and a good quality EGR system cleaner.

How much does it cost to clean EGR valve?

The EGR valve is one of these additions, helping keep emissions low and reducing pollution. Having the EGR valve replaced on your car should cost between $147 to $548, which will cover the cost of parts an labor.

Will a bad EGR valve throw a code?

If I have a bad EGR valve, will it throw a code for a misfire in cylinder number 2? A bad valve most likely will cause a random misfire since it doesn't direct exhaust gases to a particular cylinder. If you are getting a code for the number 2 cylinder, check the injector, spark, or fuel problems for that cylinder.

Does EGR valve effect Turbo?

The EGR (Exhaust Gas Recirculation) valve directs a small amount of exhaust gases back into the inlet air charge, and lowers the maximum temperature of the burning fuel. The EGR valve is likely to stick and become coked up on some applications. This can have a significant effect on the performance of the turbocharger.

What can I use to clean an EGR valve?

EGR Valve Cleaning

1. Spray carbon deposits with EGR-valve or carburetor cleaner.
2. Use a dull scraper and a pipe cleaning brush to scrub carbon buildup.
3. To deal with rock-hard buildup, leave the valve soaking in the cleaning solution for a few minutes.
4. Repeat step 3 to fight stubborn carbon deposits.

Can a car run without EGR valve?

Yes it might affect the environment but no harm to engine as such. there are people who are running without EGR for more than 50k km. Also in all remapping they disable the EGR. There are some doubts on temperature increase in cylinder if EGR is disabled.

What tells the EGR to open?

The DPFE sensor is part of the EGR system and senses EGR flow when the EGR valve is open. It provides a feedback signal to the engine computer so it can vary EGR flow to meet changing engine loads.

How do I know if my EGR valve is stuck open?

Open Position: Rough idling and problems with acceleration are the two most common indicators that the EGR valve is stuck open. The truck might also stall excessively. When the EGR valve is stuck open, all of the exhaust gas cycle back into the chamber, meaning there's not enough oxygen for a combustion to take place.

Does EGR delete increase fuel mileage?

For the advocates of the EGR delete kit, the claims are that the EGR delete kit will improve gas mileage and make your engine run longer. For diesel engines, it is true that the engine without the EGR system is capable of having better fuel economy, but those results may vary based on the calibration of the engine.

How long should an EGR cooler last?

about 80,000 miles

Is EGR cleaning necessary?

Since the EGR system recirculates a portion of exhaust gases, over time the valve can become clogged with carbon deposits that prevent it from operating properly. Clogged EGR valves can sometimes be cleaned, but replacement is necessary if the valve is faulty.

What does the EGR tube connected to?

It is a part of the vehicle's exhaust gas recirculation (EGR) system, which is designed to recirculate exhaust gases back into the engine in order to reduce cylinder temperatures and emissions. The EGR tube is the passage through which the vehicle's exhaust gases travel from the exhaust back into the intake.

Why is EGR required?

EGR- exhaust gas recirculation, works by recirculating a portion of an engine's exhaust gas back to the engine cylinders. This dilutes the Oxygen in the incoming air stream and provides gases inert to combustion to act as absorbents of combustion heat to reduce peak in-cylinder temperatures.

What type of gasket is used on an EGR valve?

The gaskets between the EGR valve and the engine and the EGR valve and the tubes are a composite metal clad gasket (high heat gasket material sandwiched between two thin pieces of metallic film) The gasket between the tubes and the intake plenum are silicone rings..

What happens if you don't replace EGR valve?

Engine Performance Issues A clogged or malfunctioning EGR valve can disrupt the vehicle's air-fuel ratio, which can cause engine performance issues such as a reduction in power and fuel efficiency. The vehicle may also stall or hesitate while accelerating.

What happens if you delete EGR?

EGR systems have been known to cause serious issues in an engine, including stuck valves, coolant problems, and leaky cylinders. An EGR delete kit removes the EGR system and allows a vehicle's engine to run at cooler temperatures. This improves performance, makes an engine run cleaner, and last that much longer.

How much HP gain from EGR delete?

As for hp gains you may get around 1 to 2 hp from it and thats assuming that you have clean fuel and clean air gettin into the intake.

How can you tell if your EGR valve is bad?

Top Five Signs of a Bad EGR Valve

1. Poor engine performance. A bad EGR valve is likely to have issues with the engine's performance.
2. Look out for the engine warning light. The “check engine” indicator will light up on the dashboard when your EGR valve fails.
3. Fuel odor.
4. Failed emission test.
5. Rough idle.
