M. 2, formerly known as the Next Generation Form Factor(NGFF), is a specification for internally mounted computerexpansion cards and associated connectors. M. 2 replaces the mSATAstandard, which uses the PCI Express Mini Card physical cardlayout and connectors.

Subsequently, one may also ask, is m2 faster than PCIe?

The PCIe interface is faster, asthe SATA 3.0 spec is limited to ~600MB/s maximum speed, whilePCIe Gen 2 x2 lanes is capable of up to 1000MB/s, Gen2 x4 lanes is capable of up to 2000MB/s, and Gen 3 x4 lanesof up to 4000MB/s.

Additionally, is m 2 PCIe the same as NVMe? Enter NVMe. Standing for “Non-VolatileMemory Express,” NVMe is an open standard developed toallow modern SSDs to operate at the read/write speeds their flashmemory is capable of. It is also unrelated to the form factor,which is why NVMe drives can come in both M.2or PCIe card form factors.

One may also ask, what is m2 PCIe SSD?

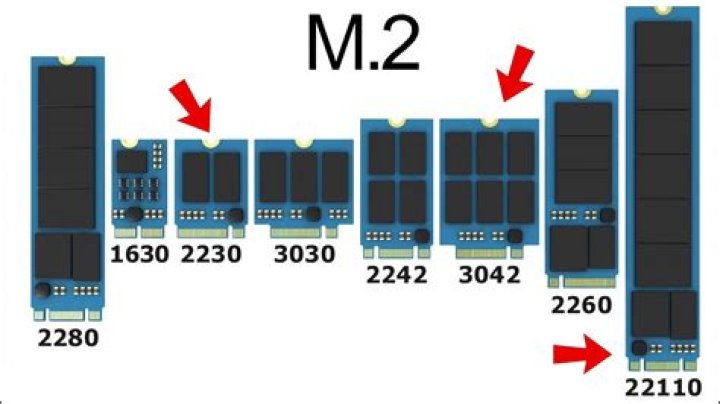

An M.2 SSD is a solid-state drive (SSD)that conforms to a computer industry specification written forinternally mounted storage expansion cards of a small form factor.The M.2 specification supports applications such as Wi-Fi,Universal Serial Bus (USB), PCI Express (PCIe) andSerial ATA (SATA).

Can I plug m 2 into PCIe?

No, they are different; M.2 supports bothSATA and PCIe storage interface options, while mSATA is SATAonly. Physically, they look different and cannot be pluggedinto the same system connectors. The M.2 formfactor was created to provide multiple options for small formfactor cards, including SSDs.

Is m2 faster than NVMe?

NVMe M.2 SSDs SSDs are essentially high-speed memory similar to RAMbut because SATA 3.0 was only capable of 6 GB/s, SSD speedseventually plateaued. NVMe technology allows SSDs to unleashtheir true potential: blistering fast speeds. NVMeSSDs yield a 4x or more increase in speed compared to SATASSDs!

Can I plug mSATA into m 2?

No, they are different; M.2 supports bothSATA and PCIe storage interface options, while mSATA is SATAonly. Physically, they look different and cannot be pluggedinto the same system connectors. The answer was the newM.2 specification that allows for differentM.2 SSD card sizes and capacities.

Is PCIe and NVMe the same?

NVMe (Non-Volatile Memory Express) is aninterface protocol built especially for Solid State Drives (SSDs).NVMe works with PCI Express (PCIe) to transferdata to and from SSDs. NVMe enables rapid storage incomputer SSDs and is an improvement over older Hard Disk Drive(HDD) related interfaces such as SATA and SAS.

What is the max speed of M 2?

Performance Range

M.2 Drive Throughput by Connection	Theoretical Maximum Throughput	Est. Real-World Maximum Throughput
SATA III	6.0 Gb/s (750 MB/s)	4.8 Gb/s (600 MB/s)
PCI-E 2.0 x2	8 Gb/s (1 GB/s)	6.4 Gb/s (800 MB/s)
PCI-E 2.0 x4	16 Gb/s (2 GB/s)	12.8 Gb/s (1.6 GB/s)
PCI-E 3.0 x4	32 Gb/s (4 GB/s)	31.5 Gb/s (3.9 GB/s)

Is NVMe better than SSD?

SATA is a legacy standard that wasn't designed withsolid state storage in mind. Current flagship NVMe,or Non Volatile Memory Express, drives on the other handoffer about 5x the bandwidth and can approach transfers speeds of3GB/s. The Samsung SSD 960 Pro Is One Of The Fastest NVMeSSDs On The Market.

Is NGFF the same as NVMe?

So far, we've explained SATA and NVMe. These aretwo methods, or protocols, used to read and write data. One usesPCI-E (NVMe) and the other doesn't (SATA). An M.2drive is simply a term to describe the physical form factor of adrive.

How long do NVMe drives last?

This is a drive that's also built tolast, with the 1TB model of the Samsung NVMe SSD 960Pro M.2 having a guaranteed lifespan of at least 800TB,while the 2TB is even longer at 1.2PB (which is1200TB). It has a mean time between failures (MTBF) of 1.5 millionhours, while a warranty of 5 years also backs up thedrive.

Can you use 2 m 2 drives?

It is possible to use multiple lanes and underthe M.2 SSD specification, up to four lanes can beused. Now, the M.2 drive can be compatible withPCI-Express up to 4 lanes (x4) but the computer only uses two lanes(x2).

What is the fastest SSD type?

The Samsung 860 EVO isn't the fastest SSD you canbuy—that honor goes to advanced drives that transfer dataover PCI-E rather than the traditional SATA interface—butit's the fastest triple-layer cell (TLC) SATA drive we'vetested, albeit by a small margin.

How much faster is RAM than SSD?

SSD vs. RAM Speed RAM is orders of magnitude faster than anSSD. A SSD's theoretical maximum transfer speed isthat of the SATA interface -- 6Gbps, which is equivalent to750MB/sec.

What is the fastest m 2 SSD?

Bottom Line: By several measures, the Samsung SSD970 Pro is the fastest consumer-grade internalM.2 solid state drive you can buy, making it anexcellent choice if you want the absolute best storage for yourscreaming PC build or upgrade.

How many types of SSD are there?

SLC, MLC, and TLC NAND These three memory types are the primarykinds of NAND chips seen in modernSSDs.

What is Optane memory?

In contrast, Optane Memory is a form of Intel'sstupidly fast Optane storage technology. The OptaneMemory stores applications and data you access often, whileless-frequently used data stays on the hard drive. Intel. Intel'sOptane Memory is used to cache or tier storage to give itSSD-like performance.

How do I connect m 2 SSD?

How to Install a SATA or PCIe M.2 SSD in a DesktopPC

Step 1: Remove the mounting screw located across from the M.2slot.
Step 2: Carefully insert the M.2 SSD. Gently push the M.2 SSDinto its slot, paying attention to the notch.
Step 3: Secure the M.2 SSD using the mounting screw.
