Is Ethernet an IP?

EtherNet/IP (IP = Industrial Protocol) is an industrial network protocol that adapts the Common Industrial Protocol to standard Ethernet. EtherNet/IP is one of the leading industrial protocols in the United States and is widely used in a range of industries including factory, hybrid and process.

.

Furthermore, what is the difference between Ethernet and Ethernet IP?

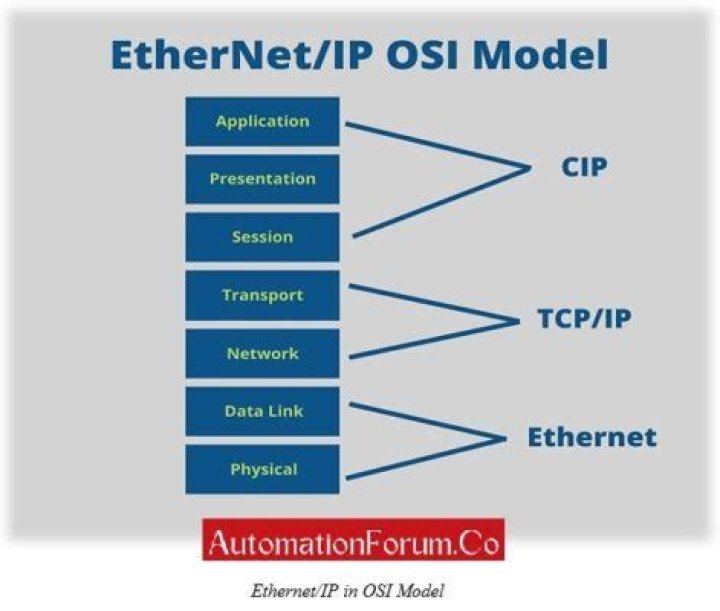

In summary, Ethernet is the physical networking (link layer) protocol, while Ethernet/IP is an industrial communication protocol (application layer). The Industrial Ethernet family includes (amongst many): Ethernet/IP, EtherCat and Modbus TCP protocols.

One may also ask, what is an Ethernet IP address? Understanding Ethernet IP Addressing. An IP address is a 32-bit number that is generally displayed in dotted decimal format, in which each octet (8 bits) of the address is displayed in decimal format, and each value is separated by period (e.g. 192.168. 0.5).

In this regard, does Ethernet use IP address?

Every packet that goes over Ethernet uses a MAC address. The reason why TCP/IP is used for higher-level communication (Layer 3 in the OSI model) is because it's a standard that's universally accessible and also routable between autonomous networks. Every packet that goes over Ethernet uses a MAC address.

Who invented Ethernet IP?

Robert Metcalfe David Boggs

Related Question Answers

Is Ethernet a WiFi?

WiFi is a wireless technology that connects devices to the internet that uses radio frequency (RF) instead of a physical wired connection. Meanwhile, Ethernet is the traditional technology for connecting computers together in LAN (local area network), so basically wired connection.

Why is it called Ethernet?

He chose to base the name on the word "ether" as a way of describing an essential feature of the system: the physical medium (i.e., a cable) carries bits to all stations, much the same way that the old "luminiferous ether" was once thought to propagate electromagnetic waves through space. Thus, Ethernet was born.”

Is Ethernet faster than WIFI?

Ethernet is just plain faster than Wi-Fi—there's no getting around that fact. On the other hand, a wired Ethernet connection can theoretically offer up to 10 Gb/s, if you have a Cat6 cable. The exact maximum speed of your Ethernet cable depends on the type of Ethernet cable you're using.

What are the types of Ethernet?

There are several types of Ethernet networks, such as Fast Ethernet, Gigabit Ethernet, and Switch Ethernet. A network is a group of two or more computer systems connected together.

Is Ethernet a protocol?

Ethernet is a link layer protocol in the TCP/IP stack, describing how networked devices can format data for transmission to other network devices on the same network segment, and how to put that data out on the network connection.

How do I find my Ethernet IP address?

Click the Start icon and select Settings. Click the Network & Internet icon. To view the IP address of a wired connection, select Ethernet on the left menu pane and select your network connection, your IP address will appear next to "IPv4 Address".

How do I use Ethernet?

1. Locate the Ethernet port on your computer or laptop.
2. Insert one end of the network cable into the Ethernet port, applying light pressure until you hear a click.
3. Insert the other end of the network cable into one of the “LAN” or “Network” ports on the network router or hub.

How do I get Ethernet?

Method 1 Connecting to the Router

1. Acquire an Ethernet cable. Ethernet cables, also known as RJ-45, CAT5, or CAT6 cables, have a square plug on each end.
2. Make sure your router is online.
3. Locate Ethernet ports on your computer and router.
4. Plug your Ethernet cable into your computer and your router.

What is default gateway IP?

In the networking world, a default gateway is an IP address that traffic gets sent to when it's bound for a destination outside the current network. On most home and small business networks—where you have a single router and several connected devices—the router's private IP address is the default gateway.

How do I change my IP address to Ethernet?

Assigning static IP address for Ethernet adapter

1. Open Settings.
2. Click on Network & Internet.
3. Click on Ethernet.
4. Click on the current connection. Ethernet settings.
5. Under “IP settings,” click the Edit button.
6. Using the drop-down menu, select the Manual option.
7. Turn on the IPv4 toggle switch.
8. Set the static IP address.

Is TCP IP serial or parallel?

6.2 TCP/IP Over a Serial Line. TCP/IP runs over a wide variety of physical media. A serial interface is just an interface that sends the data as a series of bits over a single wire, as opposed to a parallel interface that sends the data bits in parallel over several wires simultaneously.

What is Ethernet Modbus TCP IP?

Modbus TCP/IP (also Modbus-TCP) is simply the Modbus RTU protocol with a TCP interface that runs on Ethernet. That is, Modbus TCP/IP combines a physical network (Ethernet), with a networking standard (TCP/IP), and a standard method of representing data (Modbus as the application protocol).

How do IP addresses communicate?

When a device connects to the network, it sends out a broadcast message requesting an IP address. DHCP intercepts this message, and then assigns an IP address to that device from a pool of available IP addresses. There are certain private IP address ranges routers will use for this purpose.

What is DHCP in networking?

Dynamic Host Configuration Protocol (DHCP) is a protocol for assigning dynamic IP addresses to devices on a network. With dynamic addressing, a device can have a different IP address every time it connects to the network. In some systems, the device's IP address can even change while it is still connected.

What is difference between Modbus and Ethernet?

Ethernet is of course, a lot faster and a bit easier to troubleshoot. Throughput is hardly a good reason to use RTU over Ethernet. The most basic difference between MODBUS RTU and MODBUS TCP/IP is that MODBUS TCP/IP runs on an Ethernet physical layer, and Modbus RTU is a serial level protocol.

How do I connect to a specific IP address?

Note: Do not connect the LAN cable until instructed.

1. On the PC, click Start, then Control Panel, then Network Connections.
2. Click Local Area Connection.
3. In the dialog box,, click on Properties.
4. Select Internet Protocol(TCP/IP) then click Properties.
5. Select Use the following IP address.
6. Enter an IP address and Subnet mask.

What is my private IP?

To determine your computer's private IP address, if you're running Windows, click Start, then Run, then type cmd and press Enter. That should give you a command prompt. Type the command ipconfig and press Enter -- this will show you your private IP address.

How do you pronounce Ethernet cable?

Us Americans pronounce it as ee-ther-net and rou-ter.

What is my IP address for my router?

Find your Router's IP address on Android Go to Settings > WLAN. Click the details icon. Then you could find your Router's IP address show as Gateway.
