An earth leakage trip or RCD (residual current device) is a safety device. An RCD trips the mains supply if there is above a certain imbalance between the current flowing from the live supply and the current back to the neutral. An RCD would trip saving you from a possible fatal electric shock if you touched that case..
Likewise, people ask, what can cause earth leakage to trip?
They may be tripped by external voltages from something connected to the Earthing system such as metal pipes, a TN-S Earth or a TN-C-S combined neutral and Earth. As with RCDs, electrically leaky appliances such as some water heaters, washing machines and cookers may cause the ELCB to trip.
Furthermore, is an earth fault dangerous? A ground fault (earth fault) is any failure that allows unintended connection of power circuit conductors with the earth. Such faults can cause objectionable circulating currents, or may energize the housings of equipment at a dangerous voltage.
Furthermore, what is the maximum earth leakage current?
The maximum acceptable limit of a leakage current is generally 210 micro amperes.
What is earth leakage current?
Leakage Current is the residual flow of current through insulation after a high voltage has been applied for a period of time. Earth Leakage Current is the leakage current from all earthed parts of the product. The current flowing from the mains supply through or across insulation into the Protective Earth Conductor.
Related Question Answers
What can cause an earth fault?
Earth faults may occur for a number of reasons. For example, a fault to earth in PV cabling systems may arise due to insulation damaged during installation, subsequent impact or abrasion damage to the cable sheath, or vermin damage.What does RCD stand for?
residual current device
What is electricity explain?
Electricity is the presence and flow of electric charge (electrons) in one direction. It is a form of energy which we use to power machines and electrical devices. When electrical charges are not moving, electricity is called static electricity.What is the difference between earth fault and earth leakage?

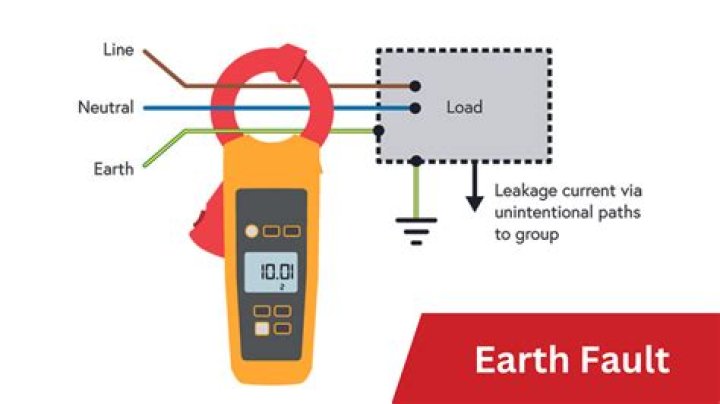

Earth-fault current : current flowing to earth due to an insulation fault. Earth-leakage current : current flowing from the live parts to earth or extraneous conductive parts in the absence of an insulation fault.How do you measure leakage current?
The leakage current is measured by applying a fixed voltage and measuring the voltage across the shunt that is a result of the leakage current. The reference design uses different switchable shunt resistances, which are switched on in a sequence to measure the insulation resistance.What is the maximum leakage current allowed in a medical device?
The widely accepted limit for touch current — the term newer standards use for leakage currents from the equipment case or enclosure of patient care medical equipment — is 500 μA.How can you tell if a transmission line is fault?
Faulty current and voltage signals are used for location, detection and classification of faults in a transmission network. Relay detects an abnormal signal, and then the circuit breaker disconnects the unhealthy transmission line from the rest of the health system.What is an electrical ground fault?
A ground fault is an inadvertent contact between an energized conductor and ground or equipment frame. The return path of the fault current is through the grounding system and any personnel or equipment that becomes part of that system. Ground faults are frequently the result of insulation breakdown.What is electrical fault finding?
Definition of fault finding. Fault finding means the testing of the operation of electrical equipment to determine if that electrical equipment is safe and working correctly as defined in the Victorian Electricity Safety (Registration and Licensing) Regulations 2010.What is a symmetrical fault?
A symmetrical fault is a fault where all phases are affected so that the system remains balanced. A three-phase fault is a symmetrical fault. The other three fault types (line to ground, line to line, and two- line to ground) are called unsymmetrical or asymmetrical faults.How are faults classified in power system?
Faults in overhead transmission system can be classified into two types, i.e. series (open conductor) faults, and shunt (short circuit) faults. Series faults can be identified easily by observing the each phase voltage. If the voltage values increases, it indicates that open conductor fault is occurred.What is insulation fault?
The insulation fault test device briefly connects the live conductors to earth. Electronic current limiting, this connection and the insulation fault create a closed circuit, in which a test current IT idetermined by the system voltage flows. The test current is limited to a maximum value.What is a leakage test?
Leakage Current Test. A line voltage leakage current test simulates the effect of a person touching exposed metal parts of a product and detects whether or not the leakage current that would flow through the person's body remains below a safe level.What is leakage voltage?
In electronics, leakage is the gradual transfer of electrical energy across a boundary normally viewed as insulating, such as the spontaneous discharge of a charged capacitor, magnetic coupling of a transformer with other components, or flow of current across a transistor in the "off" state or a reverse-polarized diodeWhat is Earth current?
In electrical engineering, ground or earth is the reference point in an electrical circuit from which voltages are measured, a common return path for electric current, or a direct physical connection to the earth. Electrical circuits may be connected to ground (earth) for several reasons.
