How much pressure does a master cylinder make?

A 1” master cylinder creates 127.4 PSI as compared to a 7/8” master cylinder which is 166.7 PSI based on your foot making 100 pounds of force at the master cylinder. It is important to consider that the smaller cylinder makes more pressure but the smaller bore will move less fluid.

.

Hereof, how much pressure is in a brake system?

Metal brake lines must withstand 5000 psi tests, and most burst around 15,000 psi. Typical full-lock operating pressures on conventional OEM-style automotive hydraulic-brake systems are 900–1,000 psi (69 bar) with manual brakes and 1,400-plus psi (96 bar)with power-assisted brakes.

which is the front brakes on a master cylinder? If the reservoirs are the same size, a good rule of thumb is that the front reservoir feeds the front brakes with GM master cylinders, while the rear reservoir feeds the front brakes on Ford and Mopar master cylinders.

Thereof, how do you check the pressure on a master cylinder?

How to Test the Brake Master Cylinder

1. Open the hood of your car and locate the brake fluid reservoir.
2. Have someone else sit inside your car and apply pressure to the brake pedal as you observe the brake fluid reservoir.
3. Inspect the area around the master cylinder for fluid leaks.

What bore size master cylinder do I need?

Generally speaking, you need a larger master cylinder for bigger multi-piston brake systems, and you can go with a smaller, more OEM-sized unit for smaller systems. The most critical factor in master cylinder selection is bore size. Bore sizes can range from 5/8 inches upward to 1 1/8 inches or more.

Related Question Answers

How do you measure brake pressure?

The formula for pressure is force divided by the surface area. If the master cylinder has a 1-inch bore, the piston's surface area is . 78 square inches. If you divide the output force of 434 lbs.

How do I pressure test my brakes?

Performing a Front to Rear Pressure Test Place the gaugeʼs memory needles on zero. Start the vehicle. Apply the brake first using light to moderate force as if making a normal stop. Note the pressure readings, under this pedal force the front pressures should not be over 500psi in most vehicles.

Are brake lines high pressure?

Brake lines are made of double-wall furnace welded steel tubing. Steel is used for brake lines because it is strong and can withstand hundreds of pounds of hydraulic pressure when the brakes are applied. The problem is worse on vehicles that do not have a high quality anti-corrosion coating on their brake lines.

How do I increase brake pressure?

Instruct an assistant to press and release the brake pedal until it feels firm, then hold pressure on the pedal. Loosen the brake bleeder valve, as your assistant holds the pedal. Observe as bubbles come from the end of the hose in the brake fluid. Tighten the bleeder valve.

How far should your brake pedal travel?

Apply the brakes with a moderate force (about 20 lbs of force). Make sure there is room between the brake pedal and the floorboard with the brakes applied. Not all manufacturers specify a pedal reserve distance however there should be at least 2 inches of travel before the brake pedal hits the floor.

What type of lever do brake pedals use?

Lever of the second order. The brake pedal uses leverage to multiply the force applied to the master cylinder. The effort required to move a load depends on the relative distance of the load and the effort from the fulcrum. The ratio of load and effort is called mechanical advantage.

Why is there no pressure in my brake pedal?

No Brake Pressure - Pedal Goes to Floor If you step on the brake pedal and it has little to no pressure and goes all the way to the floor, especially if you're getting no braking: Low Brake Fluid Level: Check your brake fluid. Master Cylinder Bad: A bad master cylinder will cause your brakes to have no pressure.

Why does my brake pedal go all the way to the floor?

One of the more common causes for the brake pedal going to the floor is a loss of brake fluid. Another possible cause is a bad brake master cylinder. The master cylinder is where brake fluid gets compressed. Pressure on the brake fluid cases the brakes to be applied to the wheels.

What is a master brake cylinder?

Master brake cylinder. The master cylinder, also known as the master brake cylinder, converts the pressure on the brake pedal to hydraulic pressure by feeding brake fluid into the brake circuit and controlling this according to the mechanical force

What happens when your master cylinder goes out?

Over time, with constant use, the seals inside of the cylinder can wear out and form internal leaks. A bad brake master cylinder may result in a pedal that feels mushy, spongy, or that slowly sinks to the floor when depressed.

How do I know if I need to replace my master cylinder?

Here are some of the most common symptoms of a failing brake master cylinder you need to know.

1. Brake Warning Light Turns On. When you step on the brake pedal, it pushes a rod in the brake master cylinder.
2. Brake Fluid Leak.
3. Spongy Feel of the Brake Pedal.
4. Contaminated Brake Fluid.
5. Sinking Brake Pedal.

Can you drive with a bad master cylinder?

The braking systems on newer vehicles may have brake fluid level and pressure sensors installed in the master cylinder. A vehicle with a bad brake master cylinder will have inoperable or compromised brakes, and therefore will be unsafe to drive.

Where is the brake proportioning valve located?

Many proportioning valves are mounted directly in the master cylinder outlet to the rear brakes. A height sensing proportioning valve is installed in the hydraulic line leading to the rear drums. They are found on many light trucks, located between the vehicle's chassis and the rear axle.

How does master brake cylinder work?

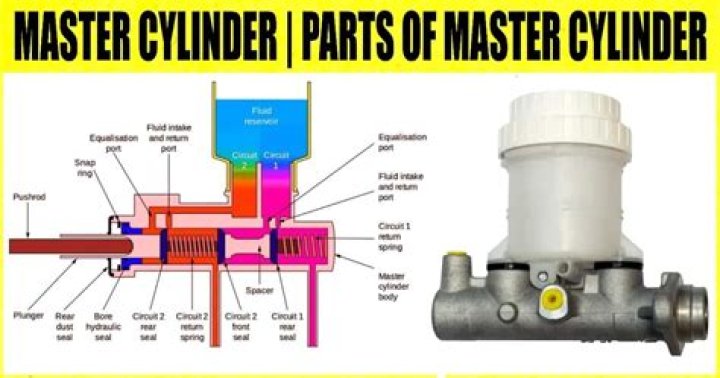

Diagram of master cylinder When you press the brake pedal, it pushes on the primary piston through a linkage. Pressure builds in the cylinder and lines as the brake pedal is depressed further. The pressure between the primary and secondary piston forces the secondary piston to compress the fluid in its circuit.

Can I use a drum brake master cylinder with disc brakes?

Another question we hear is can I use a disc or drum brake master cylinder on a four wheel disc brake system and the answer is simply, no you cannot. On a manual brake master cylinder there is going to be a smaller piston bore to maintain the proper fluid pressure required to operate manual brakes.

Does master cylinder bore size matter?

Logic would tell you that a larger bore size in a master cylinder should produce more pressure but that is actually not true. Whereas if you have a larger bore master cylinder it is actually going to produce less pressure, its actually going to give you a harder pedal feel as an end result.

How do I calculate master cylinder size?

To get to this number you use the formula for Area which is: Area = 3.14 (Pi) multiplied by the radius squared. So you calculate the radius of 1” bore which is simply half of the diameter which equals . 5” (half an inch). The result is that a 1” master cylinder has a radius of half an inch.

How many PSI can brake lines handle?

Metal brake lines must withstand 5000 psi tests, and most burst around 15,000 psi. Typical full-lock operating pressures on conventional OEM-style automotive hydraulic-brake systems are 900–1,000 psi (69 bar) with manual brakes and 1,400-plus psi (96 bar)with power-assisted brakes.
