The minimum clearance distance from the bottom of a clothes dryer vent terminating hood to the surface of the ground or to the surface of any other obstruction is 12"..
In this regard, how do you hook up a dryer vent to a tight space?

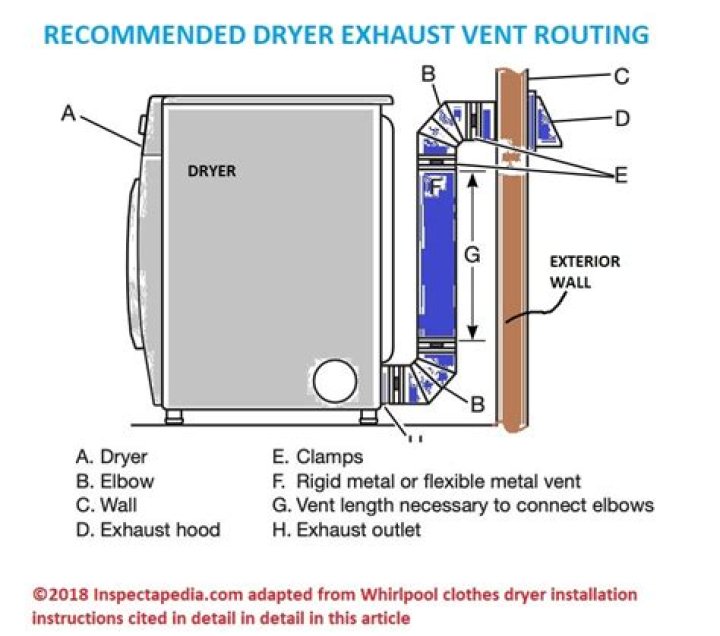

Connect the Offset Duct to the Dryer
- Place a 4 1/2-inch stainless steel band worm-gear hose clamp over the dryer's discharge vent.
- Move the dryer into position.
- As the dryer is moved into position, slide the offset dryer vent connection over the dryer's discharge vent.
- Ensure there is a good snug fit.
Furthermore, how close can a dryer vent be to a gas line? The following are clearances from the gas regulator vent that should be followed: A building air intake system either gravity or power must be 10 feet away from a gas vent; the clothes dryer must vent at least 3 feet away from the gas vent, and an appliance exhaust and any appliance air intake should be a minimum of 3
Simply so, what is the building code for dryer vents?
It is better to join the pipes with foil-backed duct tape. The vent should be as straight as possible, and the code sets a limit of 25 feet on its length. If you have to install bends, you should reduce this limit by 5 feet for every 90-degree bend and 2 1/2 feet for every 45-degree one.
Who can install a dryer vent?
In most cases, a professional carpenter can install a dryer vent for $20 to $35 per hour. Typical projects can take 2 to 4 hours for a total labor charge of $40 to $140. Exact price will depend on the exterior material of your home.
Related Question Answers
How can I vent my dryer without outside access?
Indoor venting should never be used for gas clothes dryers for health and safety reasons, but it's possible with electric dryers. - Attach the dryer venting tube to the back of the electric clothes dryer, using one of the clamps.
- Secure the other end of the dryer tube to the venting box, using the other clamp.
What is the best dryer vent hose to use?
iPower 4 Inch 8 Feet Non-Insulated Flex Air Aluminum Ducting Dryer Vent Hose. This is undoubtedly the best dryer vent hose, and it comes from the most popular brand iPower. The dimensions of the hose are 4 inches in diameter and 8 feet in length. The product has high thermal endurance.How do you run a dryer vent through the floor?
Drill whatever holes in the floor or wall near the dryer that you need in order to route the vent pipe into the crawl space. Make the holes with a hole saw or cut them with a spade bit and reciprocating saw.Can I shorten my dryer vent hose?
Trim the hose. Using your tin snips (believe us, scissors won't cut it here), carefully trim the vent hose along the line you marked off with tape. And don't forget your gloves – the thin metal hose often has really sharp edges once it's cut. Carefully reattach your vent hose to the dryer, then attach it to the wall.How do you flush a washer and dryer to the wall?
If your dryer has side exhaust capabilities, you can move the dryer close to the wall, relocate the exhaust opening through the wall and reroute the vent hose to give your dryer a close fit in the laundry area.Should dryer vent have a screen?
Dryer ventilation systems should only terminate to the home's exterior and have a proper dampered exterior cover to help prevent water, birds, and insects from entering the duct. The exterior cover should not have a screen since it will cause lint build up and block the vent over time.How long can you run a dryer vent?
35 feet
Can you run a dryer vent vertical?
DEAR BOB: A vertical dryer vent is typically a problem because it acts as a moisture condenser. The sheet metal duct is cooled by the outside air in the attic. This causes the steam from your dryer to become liquid on the inner surface of the duct. Unfortunately, a horizontal vent duct is not required by code.Can you run a dryer vent through a wall?
A dryer vent outlet accommodates 4-inch piping -- rigid metal duct pipe is recommended -- and it should be directed through a hole in the nearest exterior wall. The most challenging part of installing a dryer vent can be cutting the hole for it, especially if you have to do it through masonry or stonework.How many 90s can you have in a dryer vent?
Re: Dryer Vent run With only 1 90 turn, it allows up to 60 feet of venting. However, it recommends no more than two 90 degree turns, and limits the length to 25 feet if there are 4 90 degree turns.How far can you vent a dryer vertically?
Dryer Vent Vertically to Attic. I want to move our GE Dryer (Model # DPSB620ECS) to an inside wall which will require venting vertically up (8 feet) to the attic. Once in the attic, the vent will turn 90 degrees and run horizontally (8 feet) to the outside roof eave to an open grille.Can you use flexible duct for dryer vent?
Dryer venting tips and practices Flexible transition hose between the dryer and the wall outlet should be either the foil type or the aluminum flexible duct (most preferred). Do not use the plastic or vinyl. Concealed ducting must be rigid metal (galvanized or aluminum) duct.Is a dryer vent considered a source of ignition?
A dryer vent is not an ignition source. An open flame, or something that is creating a spark regularly is an ignition source. A dryer vent or vent termination with accumulated lint would be a potential fire hazard, but even those conditions are not ignition sources.What is a periscope dryer vent?
A periscope dryer vent let the dryer sit closer to the wall, and the smooth metal collects less dryer lint than a flexible dryer hose. In most cases, you will need a new dryer vent exhaust opening through the wall to the outside, as older, flexible hose exhausts are often directly behind the dryer exhaust.
