How many wires does a doorbell have?

Most doorbells are 16 volt AC. Typically, two wires travel from transformer to doorbell. Either wire can connect to either terminal. If home has two doorbells or secondary use for a transformer, there might be two sets of wires connected to transformer.

.

Beside this, how is a doorbell wired?

Wired doorbells have a bell, a junction box with a transformer on it, and the button at the door. Ringing the bell connects the ground wire together, which activates the circuit. Although doorbells don't emit much voltage, the transformer is connected to a 120-volt wire in the house.

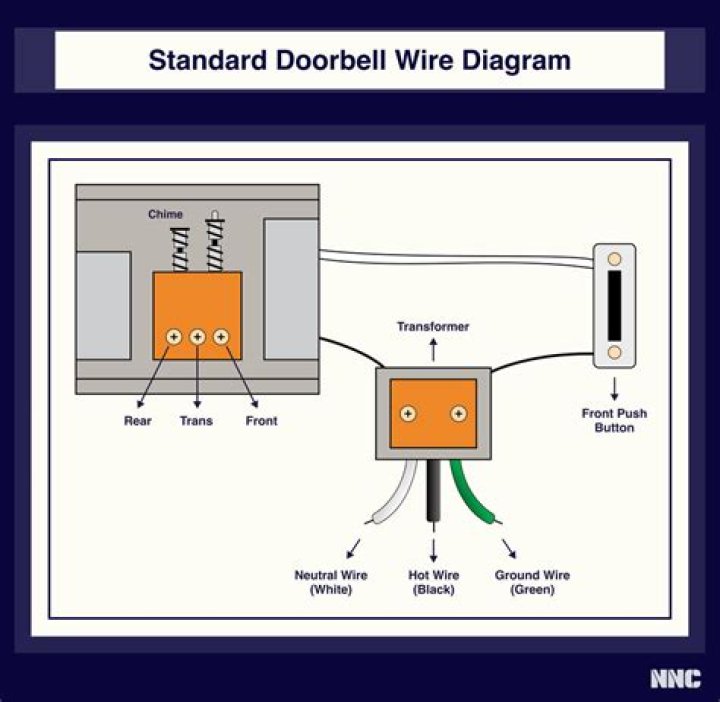

Also, where do doorbell wires go? Many doorbell units make two sounds: one for the front door, the other for the back door. Terminals on the bell unit are marked “front,” “back,” and “trans” (for transformer). One wire from the transformer goes to the “trans” terminal, and one wire from each button goes to either the “front” or “back” terminals.

Herein, what color are doorbell wires?

Connect the input wires on the transformer to the source circuit using the black to black, white to white, and ground to green method. A doorbell circuit for two or more doors will have a separate contact on the chimes for each door button included.

Will doorbell wires shock you?

Most of the doorbell circuit is “low-voltage” current that won't give you a shock if you come in contact with the wires. Unscrew the doorbell button and touch together the two wires fastened to the back; if the contact between the wires makes the bell ring, then the button is broken and should be replaced.

Related Question Answers

Can I touch doorbell wires?

Because of its low voltage, doorbell components and wiring are safe to handle, even when electricity is flowing through them. Without touching the wires, immediately shut off the power to the doorbell, as described below. Before restoring it, replace the transformer.

Do you have to turn off power to install ring doorbell?

DO I HAVE TO TURN OFF POWER TO MY WIRED DOORBELL PRIOR TO INSTALLING RING DOORBELL? Although it's not necessary, we advise that you do turn the power off to your wired doorbell in order to avoid any potential risk.

Is doorbell voltage dangerous?

What Can Go Wrong? - Most of the components on a doorbell system are low voltage, therefore not dangerous. The exception is the transformer for a wired unit. Electrical shock rules apply, take precautions and shut the power off when working around the transformer. Yes serious injury and death are possible.

Is it hard to install doorbell?

Hard-wired doorbells are generally installed during the construction of a home when an electrician can easily run wires into the unfinished walls. If your home was never wired for a doorbell, installation can be costly because new wires must be “fished” through the walls, a labor-intensive process.

Can doorbell wires cause fire?

Clearly, if you are testing voltages the circuit should be on, but if you are replacing any of the bits (transformer, doorbell, doorbell button, doorbell wiring) the circuit should be turned off. Even a 12 volt short can cause a fire and you never know, something may have been wrongly connected to a 120 volt line.

Where is the doorbell transformer in my house?

Doorbell transformers are usually located outside the home along the siding or on a wall in the garage. They may also be fixed to a wall in the basement or closet near the front door or entryway. If you don't see it in any of these places, check the walls in the attic. It may be tucked behind the insulation.

How do I know what voltage my doorbell is?

Test Transformer You'll find most doorbell transformers near the main electrical panel. Set the multimeter to voltage setting, and place its probes on the screws where the small-gauge doorbell wires are attached. If the multimeter reads 16 volts or so, the transformer is fine; go to Step 5.

Can I wire a doorbell from a light switch?

Remove the light switch box, place a larger 2 gang or junction box in, split the line , 1 line to switch, 1 line to a store bought doorbell kit that mounts to the wall beside the switch, wire that to the ring as now you have the right voltage output from its transformer.

How does a doorbell get power?

When you press a doorbell button, you complete an electrical circuit that allows household electricity to flow through the doorbell's internal electromagnet. The magnetic field generated by the electromagnet is then used to power a mechanism that creates the doorbell sound. Doorbells are low-voltage devices.

Are doorbells AC or DC?

In commercial and residential intrusion and fire alarm systems circuits are typically DC. However, most residential doorbells are 24vac. An ac transformer is simpler and cheaper to make. As you can see the light and the doorbell switch are in parallel with each other.

Can I use cat5 cable for doorbell?

CAT5 cables are generally designed for communication and not for power — but that works out well where a doorbell is concerned. It's not necessary to use these types of cables, but there are doorbells offered through a number of companies that allow for the use of them if that's how a homeowner wants to do it.

How do I know if my doorbell has a transformer?

How to Find a Doorbell Transformer

1. Check behind your existing doorbell.
2. Look inside your coat closet if it is near your front door or the doorbell.
3. Turn off your main breaker at the service panel and remove the cover.
4. Look around your garage above your service panel if it is in the garage.
5. Check inside your furnace closet.

Is a humming doorbell transformer dangerous?

If your doorbell is relentlessly buzzing or humming, the button may be stuck in the contact position. If this continues for very long, the electromagnet in the transformer will burn out. When this happens, the bell or chimes unit won't work even if current is being delivered to it when you press the button.

Can you cut doorbell wires?

Unscrew the wires supplying the doorbell unit with power that lead away from the transformer. These wires enter the house's main living area, usually along a floor joist. They can be cut at anyplace along this run; simply tape the cut ends with electrical tape.

How do you fix a doorbell transformer?

Test Transformer You'll find most doorbell transformers near the main electrical panel. Set the multimeter to voltage setting, and place its probes on the screws where the small-gauge doorbell wires are attached. If the multimeter reads 16 volts or so, the transformer is fine; go to Step 5.

How do you install a doorbell without a doorbell?

How to Install a Ring Doorbell without an Existing Doorbell

1. Insert the level tool into the front of your Ring device.
2. Using the level tool, position the Ring Doorbell where you want it installed.
3. Mark off the mounting holes using a pencil.
4. Screw your Ring doorbell into the wall.
5. Place the faceplate on the Ring video doorbell.

Can you put 2 doorbells on transformer?

There's no uniform color-coding for doorbell wires. Add a second chime cable at the transformer, exactly like the cable to the existing chime. Your existing transformer may not be powerful enough to handle both chimes. So if you get a weak sound, replace the transformer with a 15-20VA (volt amp) unit.

What size transformer do I need for a 2 doorbell?

Single door chimes work best with 16-volt, 10-watt transformers. To power your additional chime(s), you will need to install a 16-volt, 30-watt transformer. The voltage and wattage of transformers is stamped or printed on the body of the unit. The 30-watt transformer can be located almost anywhere in the house.
