How many pins does USB 3.0 have?

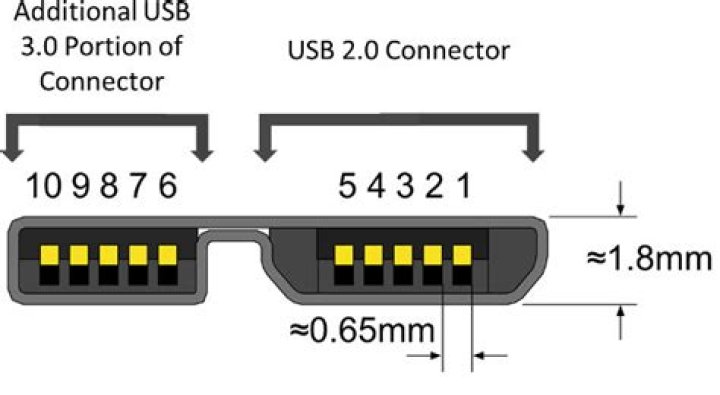

Okay, now the numbers. A regular USB 1.0 or 2.0 socket has four pins, and a USB cable has four wires. The inside pins carry data (D+ and D-), and the outside pins provide a 5-volt power supply. USB 3.0 ports add an additional row of five pins, so USB 3.0-compatible cables have nine wires.

.

Also, how many pins does a USB have?

four

Secondly, are all USB 3.0 ports Blue? Since USB 2.0 and USB 3.0 ports may coexist on the same machine and they look similar, the USB 3.0 specification recommends that the Standard-A USB 3.0 receptacle have a blue insert (Pantone 300C color). The same color-coding applies to the USB 3.0 Standard-A plug.

Accordingly, how do I identify a USB 3.0 port?

On a PC, USB 3.0 ports can be identified by checking the Device Manager. You can also identify the physical ports on your computer which will either be blue, or marked with a “SS” (SuperSpeed) logo.

How can I tell the difference between USB 2.0 and 3.0 ports?

Actually, it is not difficult to tell their physical difference. The USB 2.0 Connectors is colored white or black inside, while the USB 3.0 is colored blue inside. So if you want to find out whether the USB port on your computer or USB flash drive is 2.0 or 3.0, you can distinguish them by the USB port color inside.

Related Question Answers

When did USB 3.0 come out?

2008,

Is USB a serial?

A Serial port is an asynchronous port on the computer used to connect devices serially to the computer. It is a serial communication interface through which port is capable of transmitting one bit at a time. A USB is a standard cable connection interface between personal computers and electronic devices of consumer.

Is USB bidirectional?

Remember, while USB is kind of "universal" now, it was originally being used for mice, keyboards, printers, and other pretty slow and simple things. The protocol IS bidirectional, but what's referred to in communications as "half-duplex" -- it's either transmitting or receiving, never both at the same time.

Can USB ports go bad?

The implication certainly is that USB ports can go bad. My guess is that it's more 'dirt' related than anything else; the connectors are getting a little dirty over time since they are exposed to the elements. The software can get confused, certainly, but that's normally something you can clean up.

What is a USB 3.0 port?

USB 3.0 is a Universal Serial Bus (USB) standard, released in November 2008. Most new computers and devices being manufactured today support USB 3.0. It's often referred to as SuperSpeed USB. Devices that adhere to the USB 3.0 standard can theoretically transmit data at a maximum rate of 5 Gbps, or 5,120 Mbps.

What are the 5 pins in USB?

To complete Oli Glaser's answer, 5 pins USB respects the On-The-Go standard (OTG). The additional pin added to the conventional USB port is the ID pin added to the 4th electrical pin, and allow to recognize the device. Here is the resulting electrical setup of the pins: VDD (+5V)

What is USB Type D?

USB Type-D Connector Unveiled. The USB Type D connector coincides with version 4.1 of the USB standard, with a theoretical maximum transfer rate of 1Tb/s. Devices can request up to 1.21GW of power, provided the host's power supply has sufficient capacity.

Which USB pins are power?

USB Connector Pinouts. USB is a serial bus. It uses 4 shielded wires: two for power (+5v & GND) and two for differential data signals (labelled as D+ and D- in pinout). In a USB data cable Data+ and Data- signals are transmitted on a twisted pair with no termination needed.

What happens if you plug a USB 2.0 into a USB 3.0 port?

Yes, USB 3.0 is generally backward compatible with USB 2.0. Yes, you will only get USB 2.0 speeds if you plug a USB 2.0 device into a USB 3.0 port. However, there are some USB 2.0 devices, such as keyboards and mice, that do not work well with USB 3.0.

Can I use a USB 2.0 on a 3.0 port?

The A connectors still work properly so any 2.0 device with a 2.0 cable can be used with 3.0 ports or hubs. USB 3.0 devices require 3.0 cables. USB 3.0 cables can be used with 2.0 devices and ports if the connector types fit (no B Male or B Micro connectors) but the transfer rate will fall back to 2.0.

What is the difference between USB 2.0 and USB 3.0 connector?

USB 2.0 transfer speed is 480 megabits per second (Mbps), while USB 3.0 transfer speed is 4,800 Mbps. This means USB 3.0 is approximately 10 times faster than USB 2.0. More recently, USB 3.1 has also been released and has a data transfer rate of 10,000 Mbps.

Is USB 3 the same as USB C?

USB 3's theoretical bandwidth is 5 Gbps, while USB 3.1's is 10 Gbps. That's double the bandwidth—as fast as a first-generation Thunderbolt connector. USB Type-C isn't the same thing as USB 3.1, though. USB Type-C is just a connector shape, and the underlying technology could just be USB 2 or USB 3.0.

How do I test my USB 3.0 speed?

Follow these steps:

1. Connect a USB 3.0 flash drive (USB Mass Storage Device) to one of the Intel USB 3.0 ports.
2. In Device Manager, click View, and click Devices by connection.
3. In Devices by connection view, you can easily see the USB Mass Storage device under the Intel® USB 3.0 eXtensible Host Controller category.

Can I add USB 3.0 to my computer?

Turns out it's pretty easy to add USB 3.0 ports to a desktop, provided you can meet two simple requirements. First, your system will need an available PCI or PCI Express expansion slot. Second, you'll need $20-30 you can devote to the upgrade.

Why is my USB 3.0 so slow?

In the Device Manager, expand Disk Drives to find your USB device. Right click on the device and select Properties. In the Properties window, select the 2nd tab called Policies and you will see two options. Most likely if you are experiencing slow speeds, it is set to the default Quick removal.

Does USB 3.0 require a special cable?

Yes, to get USB 3.0 speeds, you need special USB 3.0 cables. Even though you can connect a USB 3.0 device via a USB 2.0 cable, in order to achieve full USB 3.0 speeds you need to re-wire any existing cabling. USB 3.0 cables are generally thicker because they have nine internal wires versus four on USB 2.0 cables.

Can USB 3.0 be black?

Typically, newer PCs with USB 3.0 support have both USB 3.0 and USB 2.0 controllers, and both those ports are exposed. The receptacles on USB 3.0 ports are usually blue to distinguish from the receptacles on USB 2.0 ports, which are black.

Why is USB blue?

USB 3 is marked in Blue because while it is plug-compatible with earlier USB, there are five more connections inside for the USB 3 protocol. Because of driver issues, some USB 2.0 devices will not work on USB 3 ports, although a USB 3 device should operate on a USB 2.0 port only restricted by the lower speed.

How do I know if I have a USB 3.0 port?

Use the Device Manager to determine if your computer has USB 1.1, 2.0, or 3.0 ports:

• Open the Device Manager.
• In the "Device Manager" window, click the + (plus sign) next to Universal Serial Bus controllers. You will see a list of the USB ports installed on your computer.
