How many parts are in a zipper?

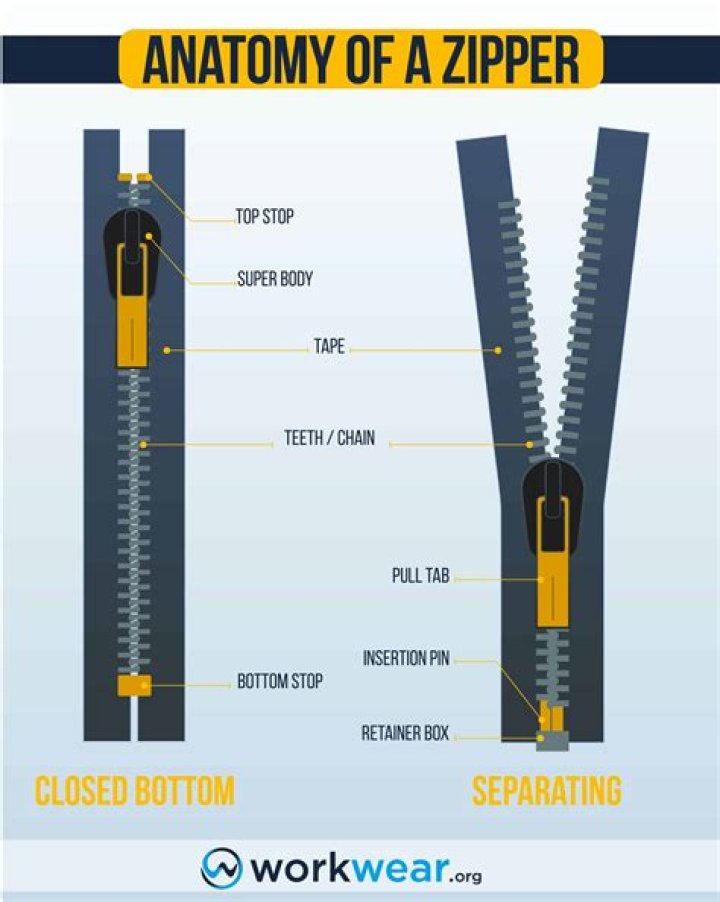

Parts of a Zipper But a standard zipper will consist of five basic parts: the top stop, slider, elements/teeth, tape and bottom stop. Other parts can be found, depending on the style and special design of the zippers. These parts include inset pins, box pins and retaining box.

.

Also asked, what are the parts of a zipper?

The teeth, also known as elements, are the parts on each side of a zipper that mesh, or engage, with each other when passed through the slider. When the left and the right side teeth are engaged they are called chain.

Additionally, what is the handle part of a zipper called? The part you grasp is called the zipper pull. The strings sometimes added to the tab are also called zipper pulls.

Consequently, what is a #5 zipper?

Zipper Size Zippers are sized with a number designation (e.g. #5, #10). These numbers are based on the approximate width of the zipper teeth in millimeters when the zipper is closed. So a #5 zipper's teeth measure approximately 5mm across, a #10 zipper's teeth measure approximately 10mm across, and so on.

How do you tell what size a zipper is?

Start with the size. To find the size of your zipper, measure the width of your zipper teeth when they are closed in millimeters (if possible). The measurement might not neatly line up with a zipper size, as the actual size of the zipper tape can vary, but it should roughly correlate.

Related Question Answers

Why is the zipper important?

Zippers let you put on warmer clothing quickly, something that's important for people working in extreme conditions. Zippers are also important for people with certain disabilities because buttons can be frustrating if you have problems with your hands or arms.

How does a zipper work diagram?

A zipper track is made up of dozens of teeth, each of which combines a hook and a hollow. The idea is to latch every hook on each of the two tracks into a hollow on the opposite track. As the slide moves up the zipper, the two teeth strips must enter at a specific angle.

Why do zippers fail?

Zippers fail for a variety of reasons. If the teeth separate after being zipped up, then the zipper slider is probably worn out and needs to be replaced. If the zipper is pulled on too hard, it can come off track and no longer align the teeth properly. Sometimes the slider comes off all together.

Can you fix zippers?

Unfortunately, you can't really fix this problem permanently unless you completely replace the zipper. That said, you have two simple temporary fixes. The easiest is to slide a key ring through the zipper pull and over your pants button. This keeps the zipper up in a simple way.

Who created the zipper?

Gideon Sundback Whitcomb L. Judson

How did the zipper changed the world?

The zipper goes mainstream However, that all changed in 1923, when the B. F. Goodrich Company decided to use Sundback's invention on their new rubber boots. An executive at the company named them zippers after the noise they made, and the name stuck. As the zipper became used more and more in items and clothing, B.F.

How do you replace a zipper?

How to Replace a Zipper in a Jacket or Coat

1. Step 1 – Measure the broken zipper.
2. Step 2 – Remove the broken zipper. Use your seam ripper to remove the stitches holding the existing zipper in the jacket.
3. Step 3 – Sew in the new zipper on one side.
4. Step 4 – Sew in the zipper on the other side.

What is a 2 way zipper?

A two way zipper, also called as a double or a dual, is a zipper made out of plastic or metal that can be closed or opened in two opposite directions at the same time. The stops can be located at any point along the zipper but they're usually found at the ends especially in items like bags and luggage.

What is the strongest zipper?

The strongest zipper currently on the market is the largest SIZE coil zipper. Why? Because it is the most CONTINUOUS zipper. The coils have very small gaps between them unlike the puzzle piece zipper teeth of metal or plastic molded zippers.

What is the difference between #3 and #5 zipper?

The second number, preceded by an actual number sign, tells you the width in millimeters of the chain. So a #3 zipper has a 3mm wide chain, and a #5 zipper has a 5mm wide chain. The #3 will be more flexible than the #5, but not as strong.

Are YKK zippers the best?

As Seth Stevenson wrote in Slate, "YKK makes incredibly dependable zippers, ships them on time without fail, offers a wide range of colors, materials, and styles, and never gets badly undercut on price." Because of its reliability, YKK is popular for manufacturers.

Are plastic or metal zippers better?

Notable characteristics of metal zippers are: Very durable, but cannot withstand horizontal stretches as plastic and coiled zippers can. As it's made from metal, it is less flexible. The teeth rarely break off, but when it does the zipper can only be permanently fixed by replacing it completely.

What does #3 zipper mean?

Zippers come in toothed, coil or invisible configurations. The larger the number, the larger the tooth or coil. Usually on a polyester tape but some of the metal zippers come on cotton tape that can be dyed easily. Coil: #3, #5, #7, #8, #9, #10. Again the number is approximate width of the zipper when closed.

Why are all zippers YKK?

The letters stand for Yoshida Kōgyō Kabushikigaisha, a name that translates to "Yoshida Manufacturing Shareholding Company." By one estimate, YKK makes half the zippers on Earth—more than 7 billion a year. The company has a reputation for making strong, dependable zippers in a bazillion colors and sizes.

Are Talon zippers good?

Talon zippers are the best heavy duty zippers in the world, ime, but not made anymore. The can add about $25 to costs (per long zipper) if the manufacturer even has access to them.

Does Gucci use YKK zippers?

You have seen that Gucci Accessory Collection bags used YKK zippers. Actually, a lot of contemporary Gucci bags also use this type of zipper. It has the YKK etched on both sides of the zipper head.

What is a reversible zipper?

Unlike the reverse coil zipper that doesn't show its teeth from the FRONT, the reversible zipper is designed to be operated from both the FRONT and BACK sides. Its pull tab has the ability to flip to the other side of the slider along the rotating rail. These zippers are great for reversible projects.

What is a closed bottom zipper?

Closed Bottom Zipper. Next is the Closed Bottom Zipper. This zipper is typically used when the zipper will not separate. A pant fly zipper is an example. A bottom stop is used to stop the slider from going off the zipper chain.

How do I know what YKK zipper I have?

The zipper type is determined by the zipper chain (teeth or coil). Plastic molded zippers are the most common type used in heavy outerwear. For YKK brand zippers Vislon is used to indicate plastic zippers so you will often see 5VS, 8VS, or 10V. Other zipper brands may have only a number to indicate size.
