How footing is done? | ContextResponse.com
A footing is placed below the frost line and then the walls are added on top. The footing is wider than the wall, providing extra support at the base of the foundation. A T-shaped foundation is placed and allowed to cure; second, the walls are constructed; and finally, the slab is poured between the walls.
.

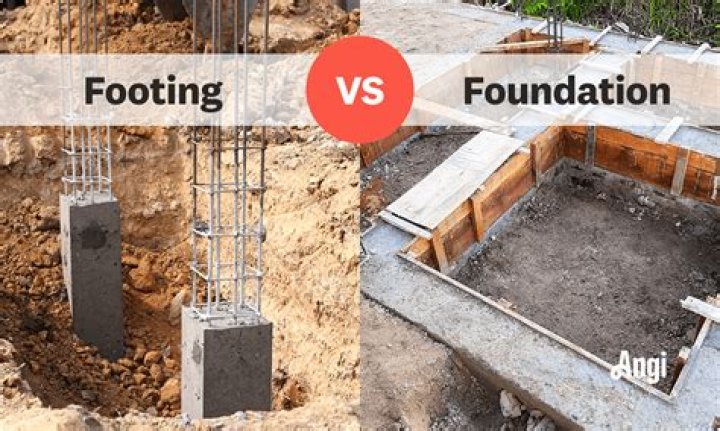

Furthermore, what is the difference between a footing and a foundation?
"Footing" is defined as a structure constructed in brickwork, masonry or concrete under the base of a wall or column for the purpose of distributing the load over a larger area. "Foundation" is that part of a structure which is in direct contact with soil and transmits load into it.
how deep and wide do footings need to be? Depth: Footings should extend to a minimum depth of 12 inches below previously undisturbed soil. Footings also must extend at least 12 inches below the frost line (the depth to which the ground freezes in winter) or must be frost-protected. Width: Footings should have a minimum width of 12 inches.
Likewise, people ask, how do you calculate footing size?
How to Calculate Footing Size
- Determine the width and length of the cement slab in inches.
- Divide the width by 12 to convert it to feet.
- Divide the length by 12 to convert it to feet.
- Determine the depth or thickness that is required for the footing in inches.
- Multiply the width by the length and then by the depth.
What are the 3 types of foundations?
Several types of shallow foundations are discussed below:
- Isolated Spread Footing. This is the most common and simplest type of foundation as this is the most economical type of foundation.
- Wall Footing or Strip footing.
- Combined Footing.
- Cantilever or Strap Footing.
- Raft or Mat Foundation.
How many types of footing are there?
They are commonly referred to as spread footings or open footings. There are four types of shallow foundation: Individual footing or isolated footing. Combined footing.What is a footer in a foundation?
Footings are an important part of foundation construction. They are typically made of concrete with rebar reinforcement that has been poured into an excavated trench. The purpose of footings is to support the foundation and prevent settling. A footing is placed below the frost line and then the walls are added on top.What do you mix footings with?
A concrete mix of 1 part cement : 2 parts sand : 4 parts coarse aggregate (by volume) should be used for footings. Concrete must be placed within half an hour of mixing. Brickwork – Place your concrete into your trench. Work the concrete into awkward places and corners using a shovel.What is isolated footing used for?
Isolated footings (also known as Pad or Spread footings) are commonly used for shallow foundations in order to carry and spread concentrated loads, caused for example by columns or pillars.What is a footing plan?
Footing plans provide details on footing depths and widths, slabs and stiffening beams and the type and positioning of steel reinforcement. These documents must also be included in a building permit application.What should be the minimum depth of foundation?
Following are the best-suited criteria for the minimum depth of foundation when there is the difference in level or ground is sloping. 01. The minimum depth of footing in sloping ground with the rock, the horizontal distance shall be at least 600 mm or 2 feet from the lower edge of the footing.What is the standard footing size?
You can look up the recommended footing size, based on the size and type of house and the bearing capacity of the soil (see the table above). As you can see, heavy houses on weak soil need footings 2 feet wide or more. But the lightest buildings on the strongest soil require footings as narrow as 7 or 8 inches.Which cement is good for foundation?
Portland Pozzolana Cement (PPC) is the ideal cement to be used as it hydrates slowly and gives high final strength. Why Birla. A1 Premium Cement is considered as the best for foundation?How much rebar is in a footing?
Determine the amount of rebar needed for the footings. Generally, one stick of rebar per 8 inches of footing width will suffice. If your footings are 16 inches wide, you will need to add two sticks of rebar along the width of the footing; however, if your footings are 24 inches wide, you will need three sticks.Do you need rebar in footings?
Footings with large bearing areas or unstable soil can benefit from adding rebar to prevent cracking. When rebar is placed within a footing, it should be completely encased in concrete by a minimum of 3 inches on all sides. When rebar is allowed to project out of the footings, it is susceptible to more rapid corrosion.Do you need a footer for a concrete slab?
While not a requirement, a concrete slab foundation provides a solid, clean surface for your steel building and can help it last longer. Since the building will require anchoring to minimize shifting, pouring a concrete slab gives you a chance to pour footings as well.Where are stepped footings used?
Stepped Footings: The main purpose of using stepped footing is to keep the metal columns away from direct contact with soil to save them from corrosive effect. They are used to carry the load of metal columns and transmit this load to the below ground.What is the standard size of column?
The size of the columns depends on the total load on the columns. Minimum size of the column should not be less than 9”x9”. 9”x9” columns are to be used for a single storey structure with M15 (1:2:4) (cement : sand : aggregate ) grade of concrete.Is 456 a footing design?
DESIGN OF FOOTINGS – IS-456 RECOMMENDATIONS. 1. In sloped or stepped footings, the effective cross – section in compression shall be limited by the area above the neutral plane, and the angle of slope or depth and location of steps shall be such that the design requirements are satisfied at every section.What is the size of a standard footing?
Concrete Footing Dimensions| Minimum Width of Concrete or Masonry Footings (inches) | ||
|---|---|---|
| Load-Bearing Value of Soil (psf) | ||
| 4-Inch Brick Veneer Over Wood Frame or 8-Inch Hollow Concrete Masonry | ||
| 1-story | 19 | 15 |
| 2-story | 25 | 19 |
