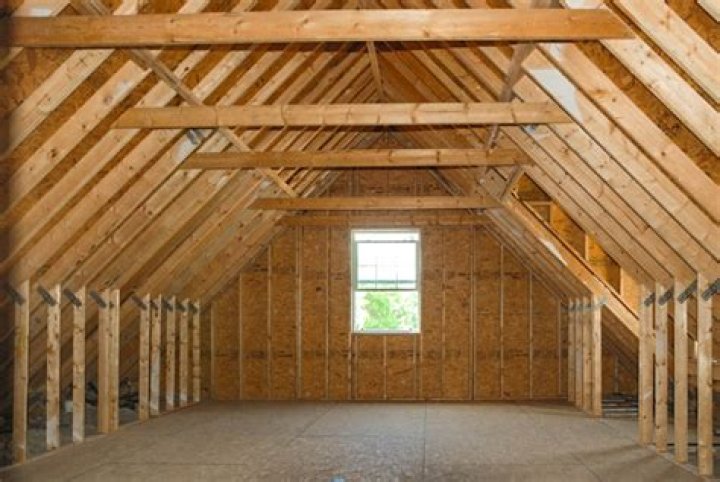

How far can an attic truss span?

20-24 feet

.

Thereof, how far can a truss span?

approximately 90'

One may also ask, do attic trusses need center support? Determining whether you need central support for a roof truss ultimately comes down to why you need roof trusses. Generally, you don't need central support for domestic trusses. In industrial applications, trusses support enormous roofs made from heavy materials and thus generally require central support.

Also Know, how much more are attic trusses?

For a 2,000 square foot home, roof truss installation typically costs between $7,200 and $12,000. You'll spend anywhere from $1.50 to $4.50 per square foot for materials alone, or between $35 and $150, though extremely long and complex types can reach $400 each. Labor runs anywhere from $20 to $75 per hour.

How far can a 2x6 truss span?

Max. Live Load 20 lbs/ft2 (956 N/m2)

Maximum Span (ft - in)
Nominal Size (inches)	Rafter Spacing, Center to Center (inches)	Lumber Grade
2 x 6	12	16' - 4''
	16	14' - 11''
	24	13'

Related Question Answers

Do trusses need load bearing walls?

Trusses, unless a special girder truss (which accepts the loads of attached trusses), have no interior load bearing walls. That is the beauty of trusses! Technically, the interior (partition walls) shouldn't even be touching the truss bottom cord during rough-in, but they usually are.

How do you design a truss?

Quick Steps of Truss Design Process

1. Step 1: Model walls, roofs, ceilings, floors and main beams.
2. Step 2: Generate truss areas and trusses.
3. Step 3: Generate truss members.
4. Step 4: Check connections between members.
5. Step 5: Check supports.
6. Step 6: Generate truss labels and drawings.
7. Step 7: Generate internal pressure area.

How many trusses do I need for a pole barn?

Typically, pole barn style buildings in my area have bays (distance between trusses) of 5 feet to 12, depending on pitch, insulation, and height. If purlins are laying flat on top of the truss, 5 or 6 feet is the max on 2X4's. edge up can go to 12 feet or more.

Are roof trusses 2x4 or 2x6?

Girder trusses will typically be made using two layers of 2X4 with a 2X6 bottom chord, In a trussed system, the bottom chord of the truss is where the stress, and the loads get moved to the bottom chord. You can not reach the spans you can with an engineered truss by using stick framing.

What are the 3 types of trusses?

Here are the types of trusses.

• Warren Truss.
• Pratt Truss.
• K Truss.
• Fink Truss.
• Gambrel Truss.
• Howe Truss.

How much weight can you hang from a roof truss?

The dead load on the bottom chord of a truss varies with the weight of materials attached to it, such as drywall on the ceiling; a typical load is 5 and 10 pounds per square foot.

Are trusses stronger than rafters?

It is certainly true that trusses are more commonly used than rafters. They're more economical to build and offer the same or greater roof strength. There's a lot to like. However trusses don't give you the opportunity for creativity in home design that rafters allow.

What's the difference between Truss and Rafter?

Trusses and rafters are both assembled ahead of being installed onto the roof. Trusses are assembled in a factory using pre-engineered structures and joints. On the other hand, rafters are assembled at the construction site. Rafters contain two main outer beams which support the roof structure.

How do I build an attic truss?

In order to create an attic truss , certain conditions must be met in the plan:

1. The structure must be wide enough and the roof steep enough to allow space for a loft area with attic rooms on either side of it.
2. The loft area cannot be on Floor 0 or Floor 1 - it must have a living space below it that has a flat ceiling.

What is cheaper trusses or rafters?

While rafters are less and less frequently used today -- due to the higher cost of rafters vs trusses -- they do have certain advantages. Though the actual installation is slower than for trusses, rafters require a shorter lead time to prepare. So if you're in a hurry, rafters will be the quicker way to go overall.

How do you fix a broken roof truss?

Fix Small Truss Cracks Dab some wood glue on both sides of the six-feet boards at the top and bottom. Place a board on one side of the truss. Use the nail gun to drive in a nail every four inches, then nail the second board to the other side of the truss. Dab wood glue on each side of the three boards.

How can I make my attic space usable?

Most attics are shallow and narrow. Consider every nook and cranny a potential storage area. Build shelves; you'll fit more into the attic if you have layers of storage space rather than just a floor to place items on. Use the space between the rafters, on the ceiling and along the attic walls.

How much does it cost to change the pitch of your roof?

Raising the pitch of a roof often requires not only tresses but new supports, new roofing and, in the end, a full replacement of the rooftop itself. According to Costhelper.com, a typical new shingle roof can cost between $1,700 and $8,400 to have built.

Are rafters load bearing?

Due to the triangular shape of all but flat roofs, the rafters or joists will run perpendicular to the roof ridge as well as to load-bearing walls.

Are upstairs walls load bearing?

Types of internal walls But others need more elaborate techniques since they support weight from above – the ceiling, any upstairs wall, the floor above, or a combination of all three. Non-load bearing stud walls can be removed without the need for temporary or permanent support of any kind.

What happens if load bearing wall is removed?

When a wall is removed that holds up the ends of the ceiling joist or the trusses, then the weight of the ceiling and any load above it may cause the ceiling to sag or drop down. The ceiling may sag a half inch or more, and in a few instances may collapse.

How can you tell a supporting wall?

Look for floor joists. If any of these joists meet a wall or a main support beam at a perpendicular angle, they are transferring the weight of the floor above into the wall and, thus, the wall is load bearing and should not be removed. Again, because most walls' supports are behind drywall, they can't be seen.

How can you tell if a wall is a supporting wall?

Load-bearing walls inside the building typically run parallel to the ridge. Go into the basement or the lowest level of a building to identify interior load-bearing walls. Look for beams or columns—often made out of metal—running from one side of the room to the other. The load-bearing walls would be above those beams.

How do you tell if a wall is load bearing from the attic?

Look at the floor joists If you can see the floor joists, either from the basement looking up to the first floor, or from the attic looking down to the floor below, note their direction. A load-bearing wall will often be perpendicular to floor joists.
