How does screw size work?
Screws have three basic measurements: gauge, threads per inch, and shaft length in inches. So, you may also see a measurement like 6-32 x 1 1/2". When the middle number is absent (6 x 1 1/2"), the screw has the "normal" number of threads per inch for that size and type of screw (for #6 wood screws that's 18).
.
Likewise, people ask, what does a #8 screw mean?
Their size is described as diameter, number of threads per inch (if used with a nut or in a threaded hole), and length in inches. In all cases, the larger the number, the larger the size. Consequently a #8 screw is larger than a #4 screw, just as a 3 inch bolt is larger than a 2 inch bolt.
Subsequently, question is, how do I choose a screw size? Steps to Choosing the Correct Screw: Select a screw size. Choose a thickness that works for the width of the material you're placing the screw into, as well as the weight the screw may support. Determine the correct screw length. Choose a length based on the depth of the material you are placing the screw into.
Subsequently, one may also ask, what screw size is bigger 8 or 10?
Screws with a diameter smaller than 1/4" have a nominal size indicated by a number (e.g. #8 or #10). 1/4" and larger diameters are shown as inches. So, a 1/4-20 screw has a 1/4" diameter (. 250") with 20 threads per inch.
What size hole do you drill for a #8 screw?
Wood Screw Pilot Hole Sizes
| Screw Size | Hard Wood | |
|---|---|---|
| Tapered Bit | Straight Bit | |
| #7 | 5/32" | 7/64" |
| #8 | 11/64" | 1/8" |
| #9 | 3/16" | 9/64" |
How big is a #10 screw?
US Machine Screw Diameters| Size | Thread Diameter | |
|---|---|---|
| Decimal | Nearest Fractional | |
| #10 | 0.19" | 3/16" |
| #12 | 0.21" | 7/32" |
| #14 | 0.24" | 1/4" |
What is the difference between #8 and #10 screws?
Screws with a diameter smaller than 1/4" have a nominal size indicated by a number (e.g. #8 or #10). 1/4" and larger diameters are shown as inches. The diameter refers to the major diameter, or outside edge, of the threads.How big is a #8 screw?
A #8 screw size is . 164 fraction of an inch. The diameters listed in the chart below are in fractions of an inch, so the #12 is just shy of 1/4 inch.What number is a 1/4 inch screw?
Wood Screw Diameters| Size | Major Thread Diameter* | |
|---|---|---|
| Decimal | Nearest Fractional Measurement | |
| #12 | .216" | 7/32" |
| #14 | .242" | 1/4" |
| #16 | .268" | 17/64" |
How big is a #6 screw?
Screws have three basic measurements: gauge, threads per inch, and shaft length in inches. So, you may also see a measurement like 6-32 x 1 1/2". This means it's a #6 diameter, with 32 threads per inch (almost double the normal thread count as a standard wood screw) and an inch and a half long.What is a #10 screw?
The term 10-32 comes from Unified and American Screw Threads for Bolts, Nuts, and Machine Screws standards published by ANSI B1. 1-1974. The number “10” is simply a size designator with no numerical meaning. The number “32” refers to 32 threads per inch.How many MM is a #8 screw?
Diameter/Decimal/Metric Chart for Small Diameter Fasteners| Gauge or Diameter | Decimal (in) | mm |
|---|---|---|
| No.4 | 0.112 | 2.845 |
| No.5 | 0.125 | 3.175 |
| No.6 | 0.138 | 3.505 |
| No.8 | 0.164 | 4.166 |
What size drill bit to pre drill for a #10 screw?
Drill bit sizes for pre-drilling (most commonly used sizes in bold)| Screw Size | Pilot hole size for hardwoods* | Pilot hole size for softwood** |
|---|---|---|
| #9 | 1/8 | 3/32 |
| #10 | 1/8 | 7/64 |
| #11 | 5/32 | 9/64 |
| #12 | 9/64 | 1/8 |
What is drive size on a screw?
Phillips screw heads| Size | Fits these wood screws | Fits these machine & tapping screws |
|---|---|---|
| #1 | #2 – #4 | #2, #3, #4 |
| #2 | #5 – #9, some #10 | #5 – #10 |
| #3 | some #10, #11 – #16 | #12, ¼ inch, 5⁄16 inch if roundhead |
| #4 | #18, #20, #24 | 3⁄8 inch, 9⁄16 inch, plus 5⁄16 inch flathead |
Is a #10 or #12 screw bigger?
You can identify a 10-32 screw by measuring the diameter at exactly 3/16″ (4.76 mm). 12-24 rack screws are more common than 10-32 in pre-threaded racks. They are slightly larger and courser than 10-32 hardware. The number “12” is a size designator with no numerical meaning.How long should screws be?
The most important factor in screw selection is length. The general rule of thumb is that the screw should enter at least half the thickness of the bottom material, e.g. 3/4″ into a 2 x 4.What is the smallest screw size?
The smallest diameter screw is 0, and the largest commonly available is 24.How do you determine the size of a wood screw?

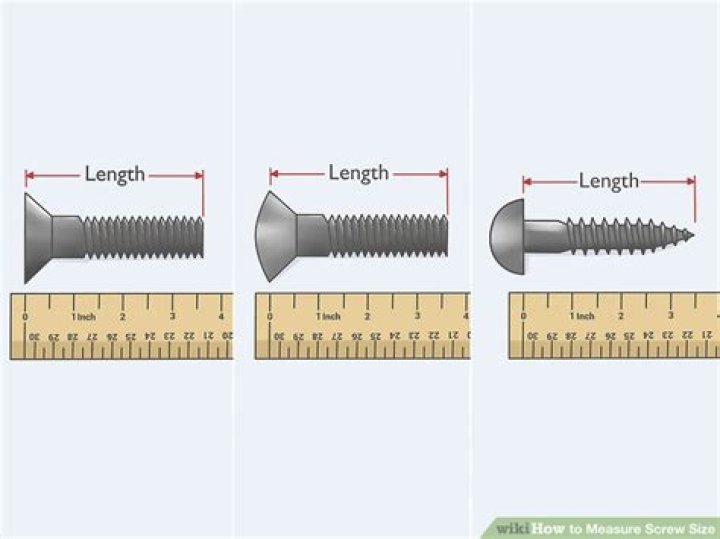

So the length of a flat head wood screw is measured from the tip to the top of the head, but the length of a round head screw is measured from the tip to the bottom of the head. In the common wood screw the thread extends 2/3rds of the length of the screw.How do you measure a drill bit for a screw?
Wood Screw Diameter: Hold the shaft of the drill bit up in front of the screw. You should only be able to see the threads of the screw (and maybe a bit of the screw). If you can't see the threads the drill bit is too big. If you can see too much of the screw, the bit is too small.What do the numbers mean on screw sizes?
What do the numbers - such as 8-32 mean on a machine screw? The first number is the diameter. The bigger the number the bigger the screw. The second number is the number of threads per inch.How much weight can a screw hold?
Find a Stud A nail in just drywall can't hold more than a few pounds of weight, but a thin nail in a wood stud can typically hold up to 20 pounds and several coarse threaded wood screws in wood studs can typically hold up to 100 pounds or more.How far into stud should screw go?
When you have a stud The most secure way to hang a coat hook, wine rack, picture or another type of wall art is to attach a screw to a stud. Studs are pieces of wood beneath drywall that act as the wall's frame. Most structures have vertical studs spaced 16 inches apart. You can also find some that run horizontally.What screws should I use?
What types of screws should you use in your projects?- I highly recommend using premium or multi-purpose screws, such as Spax, GRK or Hillman.
- Get flat headed screws, the ones with the tapered heads for countersinking.
- If you can, use square or star drives.
