How does a tube bender work?

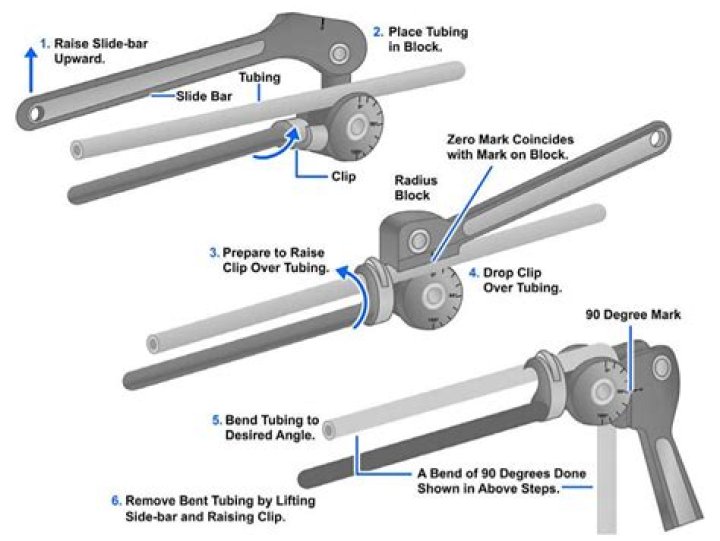

How does a pipe bender work? To use a pipe bender, the user pulls the handles of the bender to force the pipe around the former (shoe). The pipe is sandwiched between the former and the roller, so is forced to take the former's shape when pressure is exerted by the user pushing the handles together.
.
Furthermore, what does a tube bender do?
Tube bending is any metal forming processes used to permanently form pipes or tubing. Tube bending may be form-bound or use freeform-bending procedures, and it may use heat supported or cold forming procedures.
how do you calculate tube bending? Calculating the tubing in a bend is very simple. We already did the calculations for you. Just multiply the degrees you're bending by the numbers below and you will get the length of tube in the bend. So if you're bending 90 degrees on a 6″ CLR die, your tubing in the bend is 90 * .
Herein, how do you bend a tube without a tube bender?
How to Bend Pipe Without a Pipe Bender
- Step 1: Pack Your Pipe. The first thing to do is to plug one end of the pipe. I used a small carriage bolt that fit snugly in the end.
- Step 2: Bend! Clamp one end to a form.
- Step 3: Finish It Up. Cut the deformed end off.
Can you bend tube with a pipe bender?
Do not use a tube bender on pipe or vice versa. You may need to bend slightly further than your target to compensate for springback, based on the kind of material and the thickness of the tubing wall. Copper tubing bending often sees less springback than other materials.
Related Question AnswersWhat is the difference between a pipe bender and a tube bender?
The difference between a pipe and tube bender is pretty simple, there is none. A pipe is measured with inside diameter while a tube is measured by its outside diameter. Many sources will also bring up the use of a schedule when measuring pipe, referring to its wall thickness.What's the difference between a tube and a pipe?
The short answer is: A PIPE is a round tubular to distribute fluids and gases, designated by a nominal pipe size (NPS or DN) that represents a rough indication of the pipe conveyance capacity; a TUBE is a round, rectangular, squared or oval hollow section measured by outside diameter (OD) and wall thickness (WT),What is a rotary draw bender?
Rotary draw bending involves clamping on the outside diameter of a pipe and drawing it over a form whose radius matches the desired bend radius. Rotary draw bending often employs an internal supporting mandrel and a wiper die to prevent wrinkling on the inside wall of a tight bend.What is a line bender?
Line bending is a process used to bend thermoplastics in a straight line. The line bending process involves heating a thermoplastic sheet over a strip heater until it becomes soft and then bending it to any desired angle. The plastic sheet is then held still until it cools and stays in the bent shape.How do you bend copper tubing without a bender?
Some Useful Plumbing Tools for Bending Copper Pipes- Blow torch.
- A vice.
- Dry sand and a funnel.
- Pipe bending springs.
- Pipe benders.
- Pipe cutters.
- Bucket of cold water.
- A square (not illustrated), used to check that your pipe is a true right angle.
What is the minimum bend radius of tubing?
Minimum roll bending radius is 7 x D Alternatively, wherever possible allow a wide tolerance in your bend radii. For example if you have a simple 90 degree bend in a 20 mm tube does it really matter to your design whether the bend radii is 40 mm, 50 mm or 60 mm? So why not label it as 50 mm +/- 10 mm.How much is a conduit bender?
| List Price: | $49.74 |
|---|---|
| You Save: | $13.52 (27%) |
Can you bend black iron pipe?
Yes you can if its not a tight bend if so heat it up. just buy a bender from home depot. the same bender that bends 1" emt is used for 3/4 inch rigid. the take up is 8".How do you bend a pipe?
Method 2 Making a Right Angle Bend- Bend a test pipe at a 90-degree angle.
- Find the place where the bend in the pipe starts.
- Mark the ends of the bend with a permanent marker.
- Lay the pipe against the square again to find the length of the pipe in the bend.
- Find the place on your bending die where the bend begins.
How do you make a pipe bender?
How to Make a Homemade Round or Square Pipe Bender- Purchase a curved piece of wood that is 2 inches thick and about 6 to 8 inches in length.
- Grind out half an inch into the curved wood for the entire length with the hole saw.
- Remove the curved wood from the table clamp.
- Take the curved piece out of the clamp.
- Fill in the hole above the screw head with wood putty.
How do you bend brass tubing?
Begin the bending process by welding a cap to one end of the tube, then start filling the tube with sand. Pound the tube on a solid flat object to make the sand settle. Keep filling and pounding the tube with sand to pack it tighter. Next, weld another cap on the open end of the tube.How do you bend silver tubing?
Gently bend the coil to the desired curve. As the coil is bent, the tube inside will bend as well. If the tube fits snugly inside the coil, it will not deform during bending. Use a pair of pliers to remove the tube from the coil.How do you bend copper tubing by hand?
Method 2 Using a Pipe Bender- Open the handles of the pipe bender all the way.
- Disengage the tube latch.
- Mark the copper tubing where you want to make the bend.
- Slide the copper tube into the pipe bender.
- Secure the tube latch.
- Line up the marked bend point with the desired bend radius.
Can you bend exhaust pipe?
Bending the exhaust tube yourself is a delicate process but entirely feasible with the right equipment. Fill the pipe with sand to prevent crimping when you bend it. Attach a thick walled squash pipe to provide a gripping point for the vise or clamp.How do you bend rebar?
Rebar can be bent manually.- Clamp the rebar tightly in a vise.
- Put on a pair of leather work gloves to protect your hands.
- Heat the rebar at the bending point with a blow torch for 30-60 seconds.
- Slip a steel pipe onto the rebar.
- Pull the rebar toward you with steady pressure to begin bending it.
