How does a relay circuit work?

Relays are switches that open and close circuits electromechanically or electronically. Relays control one electrical circuit by opening and closing contacts in another circuit. When a relay contact is Normally Closed (NC), there is a closed contact when the relay is not energized.

In this way, how does a relay work?

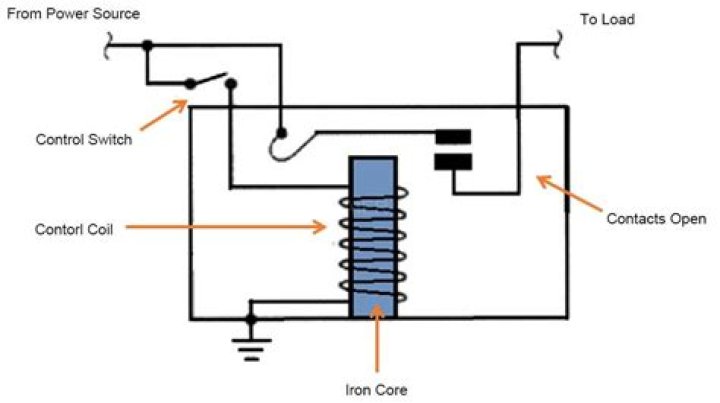

A relay is an electromagnetic switch operated by a relatively small electric current that can turn on or off a much larger electric current. The heart of a relay is an electromagnet (a coil of wire that becomes a temporary magnet when electricity flows through it).

Also, how does a control relay work? A control relay is an electrical component that opens or closes a switch in order to allow current to flow through a conducting coil, with the coil not coming into direct contact with the switch. Control relays are electromagnetic devices that typically control the power flow in circuits.

Thereof, how do you connect a relay to a circuit?

As well as the standard Common Emitter configuration for a relay switch circuit, the relay coil can also be connected to the Emitter terminal of the transistor to form an Emitter Follower circuit. The input signal is connected directly to the Base, while the output is taken from the Emitter load as shown.

How do you check if a relay is working?

Listen for a click when the relay is energized. Check the energized condition of the relay contacts. Use a digital multimeter (DMM) to test the resistance between each pole of the relay and the corresponding NC and NO contacts for that pole. All NC contacts should read infinite resistance to the corresponding pole.

Does a relay need to be grounded?

If the relay is in a metal housing, It may have only ONE pin for the coil. The second pin, or ground is the housing which must be mounted direct to chassis or otherwise grounded. If your relay is in a plastic housing it will have 2 pins for the coil, usually reversible.

What is the electrical symbol for a relay?

Relay circuit symbol The circuit symbols for electromechanical relays can vary somewhat - like most circuit symbols. The most widely used format shows the relay coil as a box, and the contacts are placed close by as shown below. Note that on this symbol, both normally open and normally closed contacts are shown.

Why do we use relays?

Relays are used to provide time delay functions. They are used to time the delay open and delay close of contacts. Relays are used to control high voltage circuits with the help of low voltage signals. Similarly they are used to control high current circuits with the help of low current signals.

What causes a relay to go bad?

Even in low-level signal applications, accidents and faulty UUTs can cause relay failures, and inrush currents, caused by hot-switching capacitive loads, and voltage spikes, caused by hot-switching inductive loads, accelerate relay aging.

What is Relay and working?

Relays are switches that open and close circuits electromechanically or electronically. Relays control one electrical circuit by opening and closing contacts in another circuit. As relay diagrams show, when a relay contact is normally open (NO), there is an open contact when the relay is not energized.

Why relay is used in PLC?

After all, the main purpose of a plc is to replace "real-world" relays. We can think of a relay as an electromagnetic switch. Apply a voltage to the coil and a magnetic field is generated. This magnetic field sucks the contacts of the relay in causing them to make a connection.

How many types of relays are there?

Usually there a 2 types of relays: a) Latching – it can have one or two coils and it can remain in the last position when the current is turned off. These type of relays are useful in applications where power consumption must be low because they require no current to maintain their position.

What happens if you put a relay in backwards?

Normally, it doesn't matter which way you pass the current, because if you hook it up backwards, the coil will still activate the relay. However, relays sometimes have an odd tendency to turn themselves back on briefly. To counter this, a diode (a one way switch) is placed between 85 and 86.

How do you tell if a relay is normally open or closed?

Test the Relay Contacts with an Ohmmeter This includes the COM terminal, the Normally Open Terminal, and if the relay is a double throw relay, the Normally Closed Terminal. The best way to test these contacts is again by measuring the resistance values between them.

What is inside a relay?

Relay - A simple electromagnetic relay consists of a coil of wire wrapped around a soft iron core (a solenoid), an iron yoke which provides a low reluctance path for magnetic flux, a movable iron armature, and one or more sets of contacts (there are two contacts in the relay pictured).

How do you turn off a relay?

Turning Relay OFF: Press and hold the Power button for 5 seconds.

Why use a relay instead of a switch?

Relays are used to control the switching of any equipment electronically. We can control a machine which uses high voltage and potentially dangerous, using relays which are controlled by relays, using low power control circuit. Thus we avoid risk of accidents.

When would you use a relay in a circuit?

Relays are switches that open and close circuits electromechanically or electronically. They control one electrical circuit by opening and closing contacts in another circuit.

What is normally open relay?

Normally open relay: Normally open relays default in the open position, meaning that when they're not in use, there is no contact between the circuits. When power is introduced, an electromagnet pulls the first circuit into contact with the second, thereby closing the circuit and allowing power to flow through.

Are all 5 pin relays the same?

When the relay is at rest 87a is connected to 30, and when the relay is energised 87 becomes connected to 30 (but never both at the same time). Terminal 87 is linked to pin number 87b, giving double outputs from the single NO contact.

Relay Guide.

Terminal/Pin number and size	Connection
5 - 6.3mm	Normally Open (NO)

Why do relays have resistors?

In a relay, the resistor absorbs access voltage given off when the relay is activated. This will protect any other components in the circuit from voltage spikes. Relays allow for a high current flow circuit to be controlled by a low current flow circuit, and they are made to fit a variety of applications.

Can I use a 5 pin relay as a 4 pin?

Some 5 pin relays are SPDT (switch between the two pins) and some are DPST (like the main relay- connect 2 pins at the same time.) If you want to use a 5 pin in place of a 4 pin, you shouldn't have to remove the pin.

How does a 5 point relay work?

5 pin relays provide 2 pins (85 & 86) to control the coil and 3 pins (30, 87 & 87A) which switch power between two circuits. They have both normally open and normally closed connection pins. When the coil is activated, power will be switched from the normally closed pin to the normally open pin.

What is the purpose of a relay on lights?

A relay is an electrical switch. It allows a low current "switch" circuit to control the electricity flow of a high-current circuit load, like your LED Light bar for example.
