How does a natural gas filter separator work?

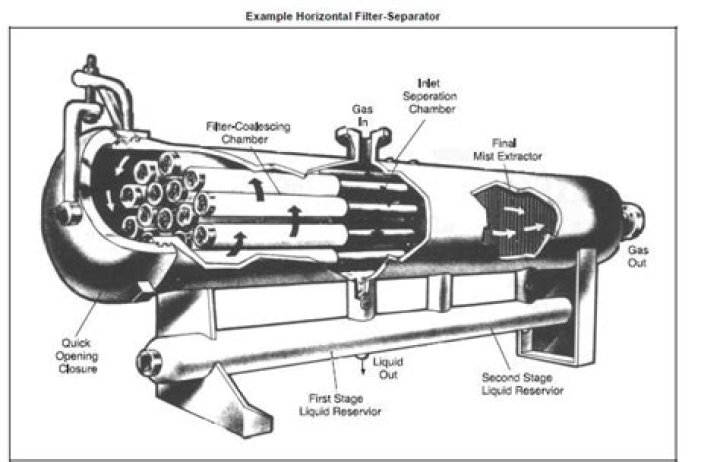

How it Works. As natural gas enters the unit, filter tubes and elements in the first section capture solid particles and cause any liquids present in the stream to coalesce into larger droplets. In the second section, the wire mesh or vane mist extractor captures the liquid droplets.

.

Just so, how does a filter separator work?

The filter-separator has three stages of liquid and solids removal. These larger liquid droplets are then removed from the gas stream in the third stage by the separator internal and drain to the sump below. The captured solid particulate matter is removed from the vessel when the disposable cartridges are changed out.

Similarly, how does a gas separator work? Separators work on the principle that the three components have different densities, which allows them to stratify when moving slowly with gas on top, water on the bottom and oil in the middle. Any solids such as sand will also settle in the bottom of the separator.

Subsequently, one may also ask, what is a filter separator?

Filter/Separator Vessels. Filter/Separators are two-stage vessels designed to remove dirt and separate water from fuel at refineries, product terminals, fuel farms, and on refueling vehicles. They continuously coalesce and separate water, which collects in the vessel sump where it can be drained.

How does a 2 phase separator work?

two phase separator. A vessel that separates the well fluids into gas and total liquid. The liquid (oil, emulsion) leaves the vessel at the bottom through a level-control or dump valve. The gas leaves the vessel at the top, passing through a mist extractor to remove the small liquid droplets in the gas.

Related Question Answers

Can you reuse a fuel water separator?

Replace your fuel-water separator filter after every 50 hours of use. Don't reuse the filter once you've emptied it. If you suspect water has entered the fuel tank, siphon off some fuel from the bottom of the tank and check it for water.

How does Coalescer filter work?

Coalescing filter elements have extremely fine fiber meshes that intercept and capture aerosol particles. Tiny liquid droplets are brought together into larger droplets as air flows through the element's fiber matrix, and they eventually become large enough to be drained away.

How does a Sedimenter work?

The fuel sedimenter separates the water from the diesel fuel. It uses the specific gravity difference between the diesel fuel and water to separate the water before the fuel enters the injection pump. Loosen the drain plug of the fuel filter and push the priming pump to drain the water in the sedimenter.

What is a coalescing filter?

A coalescing filter is used to remove water and oil aerosols from compressed air. A coalescing filter by nature will also remove all solid contaminates from the compressed air system as well as liquids. It is the solid contaminates such as rust particles, dust, solder particles, welding flash etc.

How does a fuel water sensor work?

The Water in Fuel Sensor or WiF sensor indicates the presence of water in the fuel. It is installed in the fuel filter and when the water level in the water separator reaches the warning level, the Wif sends an electrical signal to the ECU or to dashboard (lamp).

What is a water seperator?

An API oil–water separator is a device designed to separate gross amounts of oil and suspended solids from the wastewater effluents of oil refineries, petrochemical plants, chemical plants, natural gas processing plants and other industrial sources.

What does a Coalescer do?

While coalescers by definition function as a separation tool for liquids, they are commonly used, and mistakenly referred to, as filters. In the area of compressed air purification, coalescing filters are used to separate liquid water and oil from compressed air using a coalescing effect.

What is a Coalescer of an oil water separator?

The majority of coalescing oil water separators are designed based on Stoke's Law, which defines separation of fluids that are not in motion. Through this process, the oily water mixture enters the separator and the oil particles will coalesce or, gather, into larger spherical particles and then rise to the surface.

How many types of separators are there?

Separators can be classified into two-phase and three-phase separators (commonly called free-water knockout). The two-phase type deals only with oil and gas, while the three-phase type handles oil, water and gas. Additionally, separators can be categorized according to their operating pressure.

How do you separate oil from gasoline?

Crude oil is often a dark, sticky liquid that cannot be used without changing it. The first part of refining crude oil is to heat it until it boils. The boiling liquid is separated into different liquids and gases in a distillation column. These liquids are used to make petrol, paraffin, diesel fuel etc.

What is a battery separator?

A separator is a permeable membrane placed between a battery's anode and cathode. Separators are critical components in liquid electrolyte batteries.

What is a 4 phase separator?

The Four Phase Separtor is designed to separate gas, water, oil, and solids. Our separators allow you to stay on line during well test, flowbacks, and pigging operations with accurate measurement of water, gas, and oil rates.

What is a splitter in oil and gas?

Condensate oil is referred to as the light crude oil that primarily consists of pentanes and naphtha content. A condensate splitter is a simple refinery, designed to handle the light crude. It is less sophisticated and less expensive than a full refinery, which costs billions of dollars.

How does a vertical separator work?

Vertical Separator Working Principle The liquid will flow down to the outlet; the entrained gas bubbles in the liquid will flow upward and leaves to the vapor space as the liquid reaches equilibrium. Before the gas leaves the vessel, it will flow through a mist extractor to clear the gas from remaining liquids.

What is test separator in oil and gas?

Definition of 'test separator' A test separator is a vessel which is used to separate and measure small amounts of oil and gas. Each well is periodically tested by diverting the flow from the production separator to a test separator which determines the well's production rates of oil, gas, and water.

What is HP separator?

HP Separators High Pressure separators are primary separation devices used for segregation of the three phases i.e. Oil, Water and Gas from the initial inlet stream coming outside the Oil Wells and moving to medium and low pressure separators before ending up in the stock tank.

What is a three phase separator?

A vessel that separates the well fluids into gas and two types of liquids: oil and water. A three-phase separator can be horizontal, vertical or spherical. A free-water knockout is commonly called a three-phase separator because it can separate gas, oil and free water.

How do you size a separator?

Horizontal separators

1. d = vessel internal diameter, in.
2. d_m = drop diameter, μm.
3. h_g = gas-phase space height, in.
4. F_g = fractional gas cross-sectional area.
5. L_eff = effective length of the vessel where separation occurs, ft.
6. T = operating temperature, °R.
7. Q_g = gas flow rate, MMscf/D.
8. P = operating pressure, psia.

How does a high pressure separator work?

When the condensate level is high enough, the diaphragm valve (the lowest line on the left) will open and allow fluid to flow to stock tanks. The lower float is designed to float on water but fall through oil, and therefore is used to control the water level in the separator.
