Oxygen sensors work by producing their ownvoltage when they get hot (approximately 600°F). On the tip ofthe oxygen sensor that plugs into the exhaust manifold is azirconium ceramic bulb. When the air/fuel mixture is at thestoichiometric ratio (14.7 parts air to 1 part fuel), the oxygensensor produces 0.45 volts..
Also to know is, what is a heated oxygen sensor?

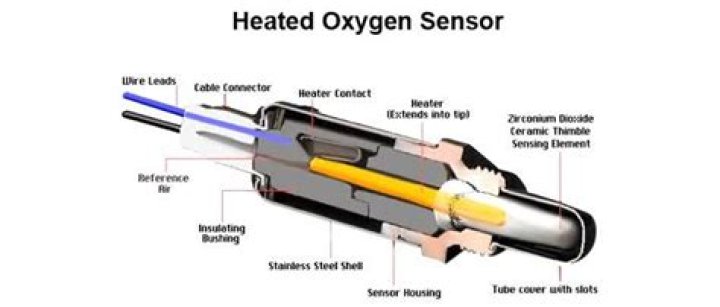

Heated Oxygen Sensors Oxygen sensors are located in the exhaustmanifold or exhaust pipe of the engine's exhaust system. Thesensors tip senses oxygen content in the exhauststream. It will produce a high voltage signal when the engine isrunning rich and a low signal when the engine is runninglean.
One may also ask, how does o2 sensor generate voltage? When the bulb is exposed to hot exhaust, the differencein oxygen levels across the bulb creates a voltage.The sensor will generate up to about 0.9 volts when the fuelmixture is rich. When the mixture is lean, the sensor'soutput voltage can drop as low as 0.1 volts.
Similarly, what happens when an oxygen sensor goes bad?
Symptoms of a Bad Oxygen Sensor When you have a bad oxygen sensor, your vehiclewill run less efficiently, it can sometimes have a poor idle,erratic jerking at steady throttle, hard starting problems, causethe check engine light to come on, and will cause high fuelconsumption.
What does the downstream oxygen sensor do?
A downstream oxygen sensor in or behind thecatalytic converter works exactly the same as an upstream O2sensor in the exhaust manifold. The sensor produces avoltage that changes when the amount of unburned oxygen inthe exhaust changes. The high or low voltage signal tells the PCMthe fuel mixture is rich or lean.
Related Question Answers
What is the difference between a heated and unheated oxygen sensor?
Heated oxygen sensors have an internal heatercircuit that brings the sensor up to operating temperaturemore quickly than an unheated sensor. During this time, thefuel feedback control system remains in “openloop” and does not use the O2 sensor signal to adjustthe fuel mixture.Can you drive with a bad oxygen sensor?
Automotive O2 sensors determine in real time ifthe air fuel ratio of your vehicle's engine is lean or rich.Driving with a bad O2 sensor is like avoiding going to thedentist. You will cause damage to your car, just asyou would cause damage to your teeth by avoiding thedentist.Where are oxygen sensors located?
Oxygen sensors are located within theexhaust stream, there is at least one oxygen sensor locatedbefore the catalytic converter and typically one in each exhaustmanifold. Depending on the exhaust system design there may be oneor two located after the catalytic converter to monitor itseffectiveness.Why do Oxygen sensors have heaters?
The oxygen sensor must be hot (about 600 degreesor higher) before it will start to generate a voltage signal, somany oxygen sensors have a small heating element inside tohelp them reach operating temperature more quickly.Can o2 sensor cause transmission problems?
A faulty oxygen sensor will cause the engine torun less efficiently (use more gas than usual) and may degradeengine performance to some extent. However, failure of the oxygensensor itself can not cause thetransmission to fail or operate poorly. Also, you might justhave a low transmission fluid level.Does seafoam clean o2 sensors?
Soak the O2 sensor in a bowl of seafoamcleaner. Seafoam cleaner is available at your local autopart store. Allow the O2 sensor to sit in the cleanerovernight. This will allow the cleaner to penetrateand break up any remaining deposits.What should fuel trim be at idle?
Using Fuel Trim to Diagnose Problems If the numbers are +10 or higher for STFT and LTFT,your engine is running LEAN. Rev the engine to 1500 to 2000 RPM andhold it steady for half a minute or so. If the fuel trimnumbers drops back down to a more normal reading, it confirms theengine has a vacuum leak at idle.Are upstream and downstream sensors the same?
Upstream is before the Cat and downstreamis after the cat. The catalytic converter is where you will findthe sensors. I would have thought the wide band style wouldbe upstream though since its feedback is for actual controlof fuel air ratio, where as the downstream is onlymonitoring catalytic efficiency.What does o2 sensor circuit high voltage mean?
OBD-II Code P0132 is caused by an oxygensensor circuit high voltage (Bank 1, Sensor 1). If thereis too little oxygen in the exhaust, it meansthe engine is running too rich and using excessivefuel.What happens if I use the wrong o2 sensor?
Symptoms of a Bad Oxygen Sensor When you have a bad oxygen sensor, yourvehicle will run less efficiently, it can sometimes have apoor idle, erratic jerking at steady throttle, hard startingproblems, cause the check engine light to come on, and will causehigh fuel consumption.
