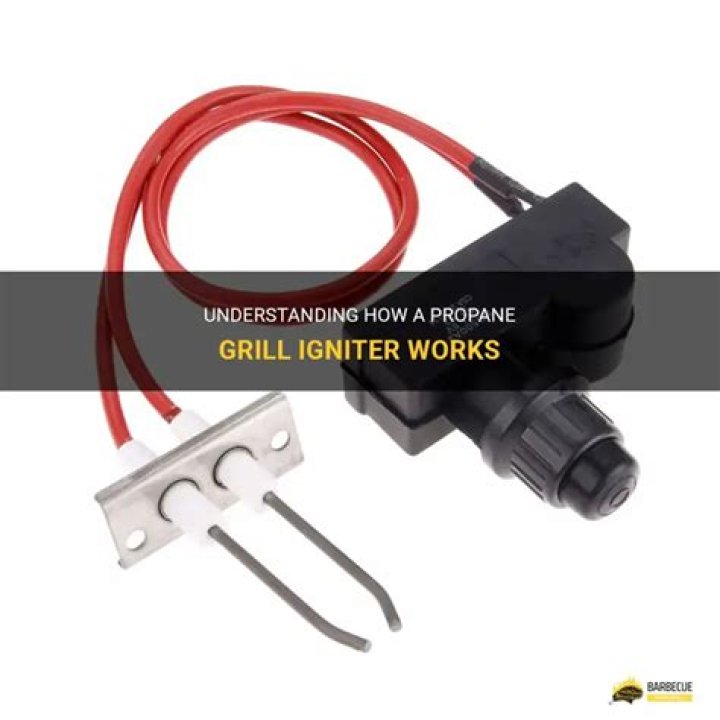

How does a grill igniter work?

Pushing the Button In the case of a piezo starter, a small hammer inside of the ignitor will forcefully contact a quartz crystal. This action causes a spark to jump off off of the ignition electrode rod onto a ground plate. When the rod is placed into a gas flow and sparks, the gas ignites.

.

Thereof, do grill igniters have batteries?

Battery Operated. These igniters create clicking continuous sparks until the burners ignite. Battery systems will use either AAA, AA or 9 volt batteries to generate the power.

Likewise, how do you light a gas grill if electronic ignitor is broken? Steps to Manually Light Your Gas Grill

1. Open the lid of your grill and find the lighting hole on the side of the grill.
2. Once you see that, place a match in the curled end of the holder.
3. Turn on the gas burner closest to the hole.
4. After the first burner is lit, turn on adjacent burners to cross-light them.

Subsequently, question is, how does a piezoelectric igniter work?

Piezo electrical ignition creates enough energy that a small hammer strikes an object within the device. When this object is struck, it creates voltage. When the button on a Piezo electric ignitor is pressed, a spring loaded hammer strikes quartz in order to create a spark.

How do I fix the igniter on my char broil grill?

How to Fix an Electronic Ignition on a Char-Broil Grill

1. Ensure there is propane in the tank.
2. Inspect the electronic ignition unit.
3. If you see a blue light when testing the ignitor, make sure the tip of the electrode is 1/4 inch from the port opening of the burner.
4. Remove the ignition button and battery.

Related Question Answers

Why is my grill not working?

Test the gas grill burners If the tank and hose are fine, narrow down the problem a bit more. It could be the gas flow or ignition, or a clogged or damaged burner. If some but not all burners ignite when you light them manually, the problem could be a damaged or clogged burner, the igniter electrode or the manifold.

Why will my gas grill not light?

It could be a worn-out spark module, a loose wire or other connection, a dead battery, corrosion or dirt on the igniter tip, or cracked porcelain on the igniter element. If the grill doesn't light using the match, check for low or no gas flow. Your problem could be as simple as a low gas tank.

Do piezo igniters wear out?

It will never "run out" of charge because it never had one to begin with. The end of a crystal's life occurs when it is broken, no longer converting the energy. The piezo crystal is a sponge. Electricity is water.

How long does a piezo igniter last?

ten years

How do you test piezo igniter?

Check the igniter for any visible cracks or breaks. If any visible cracks or breaks are present, replace the piezo igniter. Connect the piezo igniter to the electrode (figure 3), holding the electrode about ¼” to ½” away from the shell of the heater with the insulated pliers depress the piezo igniter.

How many volts does a piezo igniter produce?

800 volts

How do you fix a burner igniter on a gas stove?

You can fix this problem quickly so that your range passes with flying colors.

1. Access the gas valve behind the stove.
2. Locate the malfunctioning igniter on the stove.
3. Rub a toothbrush across the malfunctioning ignitor to remove any residue.
4. Insert a needle into the ignitor's pilot hole, if equipped.

How does an igniter work on a car?

The ignition ignitor is the component that is responsible for sending a signal from the key's ignition switch to the electrical system to supply power to the spark plugs and start your engine. In some systems the igniter is also responsible for advancing and retarding the engine's timing.

How does a water heater igniter work?

The water heater uses the piezo igniter to light the main gas burner, and when it is pressed down, it releases the electric spark. The spark gap is factory set (0.125") and should be maintained. Turn the gas OFF to the water heater and press the piezo igniter. Once pressed, the electrode should release the spark.

What makes the spark in a lighter?

A spark is created by striking metal against a flint, or by pressing a button that compresses a piezoelectric crystal (piezo ignition), generating an electric arc. In naphtha lighters, the liquid is sufficiently volatile, and flammable vapour is present as soon as the top of the lighter is opened.

How does a kitchen lighter work?

A gas-stove lighter uses a phenomenon called piezo-electric effect to generate an electric spark which ignites the combustible gas from the stove burner. The gas lighter consists of a piezo-electric crystal over which a spring loaded hammer is placed. The hammer and spring set up is attached to a button.

How does a click lighter work?

When you “click” such a lighter, the piezoelectric material deforms and bears a current. Above the valve through which the butane exits, two separated wires produce between them what is called a voltaic arc, an electric discharge or plasma, like the thorns of current surrounding Thor.

What is a piezo igniter water heater?

The most common lightning system is a piezoelectric igniter system, consisted of the igniter button, an electrode, and a wire. The water heater pilot light is ignited by an electric spark, generated when the igniter button is depressed.

How does a spark igniter work on a furnace?

Newer gas furnaces are equipped with an electric ignitor to light the furnace and turn the fuel into heat that then warms your home. The ignitor sparks and lights the burner which opens the gas valve to initiate a combustion process that creates heat.

How does a grill ignitor work?

Pushing the Button In the case of a piezo starter, a small hammer inside of the ignitor will forcefully contact a quartz crystal. This action causes a spark to jump off off of the ignition electrode rod onto a ground plate. When the rod is placed into a gas flow and sparks, the gas ignites.

Should you open propane tank valve all the way?

Unlike a water spigot, there is no halfway when dealing with a propane valve, either turn it all the way open and "snug it", or all the way closed and "snug it". Obviously, knowing how to turn the gas off is something all gas customers should know, so if your not sure how to do it call your gas company.

How do you light a gas grill when the igniter doesn't work?

Steps to Manually Light Your Gas Grill

1. Open the lid of your grill and find the lighting hole on the side of the grill.
2. Once you see that, place a match in the curled end of the holder.
3. Turn on the gas burner closest to the hole.
4. After the first burner is lit, turn on adjacent burners to cross-light them.

How do you cook on a propane grill?

As with all grills, clean the cooking surface before use.

1. Open the lid to prevent gas from building up in the cooking chamber.
2. To start a propane grill, turn the valve on the top of the tank counter-clockwise.
3. Turn on the other burners.
4. Close the lid and allow to warm for 15 to 20 minutes before cooking.

What is the chain hanging from my grill?

This chain is called the matchstick holder and is used to manually light the grill in case an issue should arise with the electronic igniter system. Turn on the gas supply to the grill. 4. Put a match in the match holder and light the match.
