How do you wire a Lutron toggle dimmer switch?

Transcript

1. Turn off your power source at the breaker.
2. Unscrew your wall plate and mounting screws, then pull your switch away from the wall.
3. Remove the wires from the old wall switch.
4. Connect the green dimmer wire to the green or copper wire of the new dimmer.
5. Replace the mounting screws and wall plate.

.

Beside this, what happens if you wire a dimmer switch backwards?

If either wire at the light fixture is still hot then the switch is wired incorrectly. If one of the wires is still hot at the light fixture with the switch in the off position, then you most likely have the light switch on the neutral wire. Separate the bare ends of the wires so you can safely turn the power back on.

Beside above, how do you wire a 2 way dimmer switch? Remove the plate that covers the switch and then unscrew the rest from the wall box. Gently pull the switch to expose the wires. Use a voltage tester or turn the switch on and off to ensure that there is no power. Next, set up the three-way dimmer switch wiring.

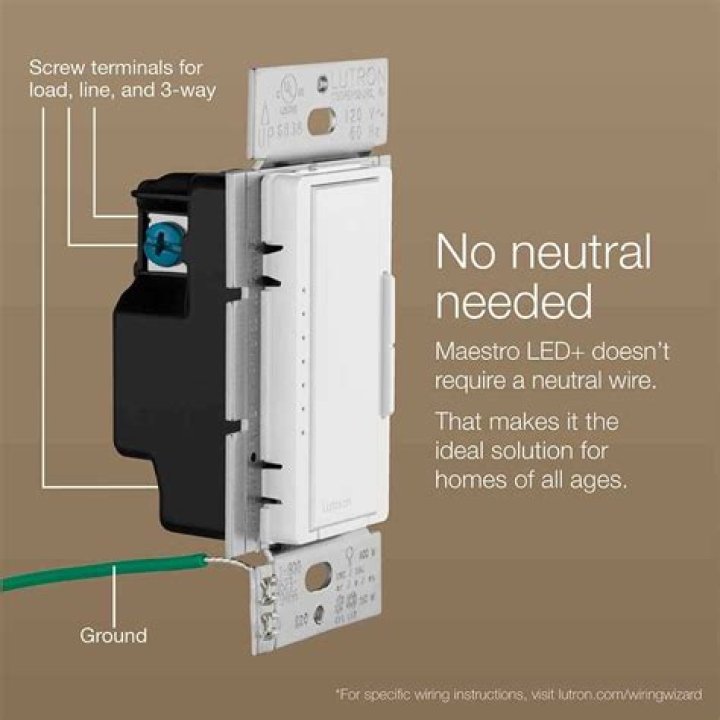

Thereof, do dimmer switches need a neutral?

There are dimmable smart switches on the market that can be installed without a neutral wire. The key is the dimming feature, which turns the flow of power between the light and the switch down to a slight trickle.

What color is the common wire?

The "common" is the "neutral" or "ground" wire, depending on the type of circuit. In normal US residential wiring, you'll have a black "hot" wire, a white "neutral" or "common" wire, and a green or bare "ground" wire.

Related Question Answers

Do you need special wiring for a dimmer switch?

Most dimmers are designed to fit a standard wall box opening, which makes it easy to replace the switch for any incandescent or halogen light with a dimmer. Dimmers come in two basic wiring configurations: standard single-pole dimmers and three-way dimmers. You will need a three-way dimmer and a three-way switch.

Do you have to use a special dimmer switch for LED lights?

Because of their circuitry, LEDs are not always compatible with traditional dimming switches. If you'd like your LED to be dimmable, you need to do one of two things: find LED bulbs compatible with traditional dimmers, or replace your current dimming switch with a leading-edge (LED-compatible) dimmer.

Does a dimmer switch reduce voltage?

Dimmers are devices connected to a light fixture and used to lower the brightness of light. By changing the voltage waveform applied to the lamp, it is possible to lower the intensity of the light output. Modern dimmers are built from semiconductors instead of variable resistors, because they have higher efficiency.

How does a dimmer switch work diagram?

The diagram below shows this sixtieth-of-a-second cycle. A modern dimmer switch "chops up" the sine wave. If the dimmer is turned to a brighter setting, it will switch on very quickly after cutting off. The circuit is turned on for most of the cycle, so it supplies more energy per second to the light bulb.

How hard is it to install dimmer switch?

1. Introduction. Installing a dimmer switch is just as easy as installing a single-pole switch, and adjustable overhead lighting is a great improvement that adds appeal to any home.
2. Turn Off Power. Turn off the power to the circuit at the circuit breaker or fuse box.
3. Remove the Wires From the Old Switch.

Are dimmer switches dangerous?

There shouldn't be any dangers if you use a dimmer that's designed for LED lights. Basically, most modern dimmers rapidly modulate between on/off and is safe for long term use in a low state. A side effect however, is that it may generate RF interference or even an audible humming sound.

What is the red wire on a dimmer switch?

Red is the switched lead (or a traveler in a 3-way installation), and is attached to the switched hot going to the light. Red with white is a traveler, used for 3-way installations. In your situation, you'll just cap this one off. Green is ground, and is attached to the grounding conductor.

What makes a light dimmable?

So a dimmable LED light fixtures must have the ability to}: Deal with a wide range of source voltage including part-formed sine waves, which is not easy for the control logic. Detect from the source voltage the light level that an individual wants, and then give that light level.

How much does it cost to install a dimmer switch?

Dimmer Switch Prices - $100-$200 Dimmers average $10-$25 each, though there are styles that cost up to $50. Installing new or upgrading to this type will range from $100-$200. With these, light can be adjusted to soft or bright according to the needs of the homeowner.

What happens if you connect white wire to black wire?

Inside an outlet's electrical box, the black (hot) wire should be connected to the brass-colored terminal on the outlet. The white (neutral) wire should be connected to the silver-colored terminal. If these connections are backward, the polarity is wrong.

Why are there 2 black wires on light switch?

The bare or green-wrapped ground wires serve as a backup to divert the power safely away in case of an electrical fault. In most cases, two black wires will be attached to the switch's two terminal screws.

How do you know which black wire is hot?

Most likely the neutral wire is white and the hot wire is red or black, but test to make sure. Identify the neutral wire in the fixture by looking at the wires. In most modern fixtures the neutral wire will be white and the hot wire is red or black. In some types of fixtures, both wires will be the same color.
